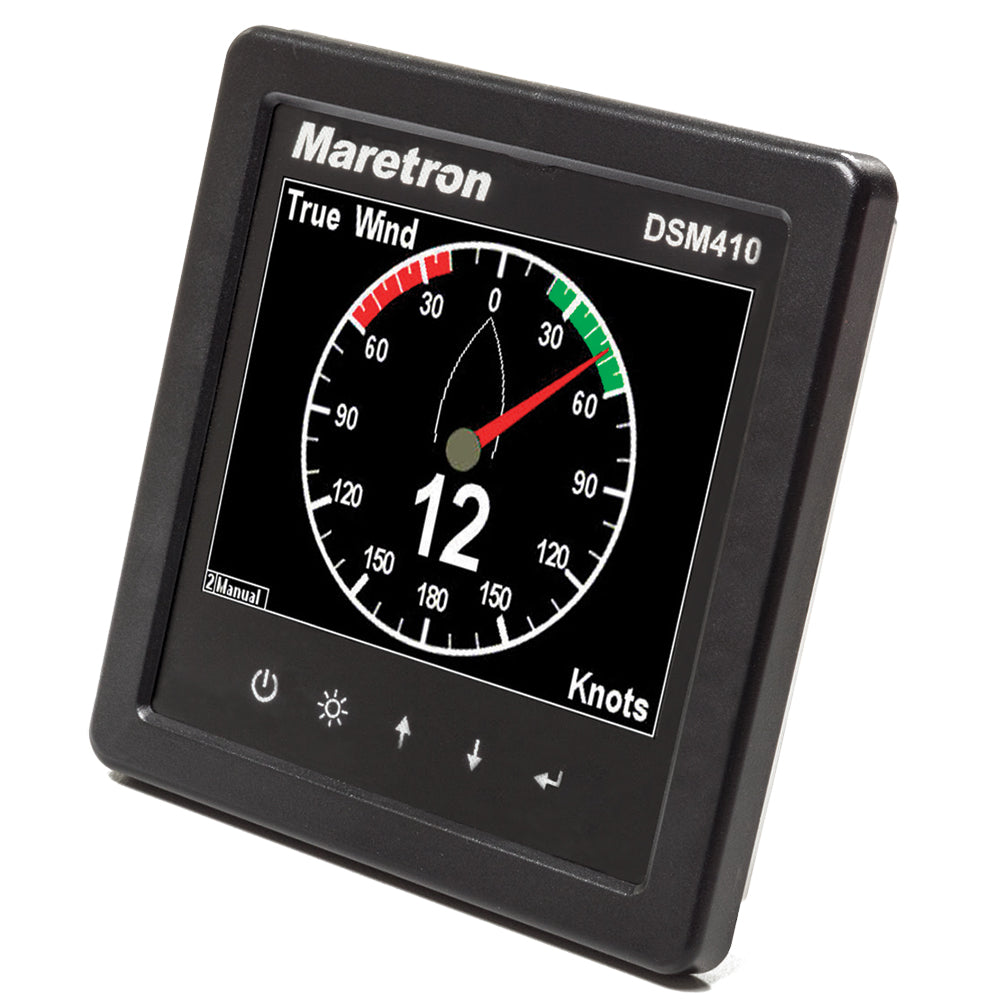

Maretron 4.1" High Bright Color Display - Black - DSM410-01

Maretron 4.1" High Bright Color Display – Black – DSM410-01

Upgrade your helm station with the Maretron DSM410-01 4.1" High Bright Color Display, a rugged, compact multifunction display designed to deliver crisp, easy-to-read vessel data from your NMEA 2000® network. Built for marine environments, this high-brightness color screen provides real-time display of navigation, engine, tank, battery, and environmental information — all in a sleek black enclosure that fits perfectly into modern helm consoles.

With seamless integration into the NMEA 2000® marine-data backbone, the DSM410 pulls information from a wide range of networked sensors, instruments, and monitoring devices. Customizable display pages and gauges let you tailor the interface to what matters most, whether you’re focused on engine performance, fuel consumption, depth/temperature, or heading and speed. Its bright, high-contrast display ensures readability in direct sunlight and low-light conditions alike.

Ideal for small to medium vessels, the DSM410 works with Maretron’s suite of vessel monitoring systems as well as many third-party NMEA 2000® devices, giving you the flexibility and visibility you need to confidently operate and monitor your boat.

Technical Specifications

• Brand: Maretron

• Model: DSM410 High Bright Color Display

• Part Number: DSM410-01

• Display Size: 4.1 inches diagonal

• Display Type: Full-color, high-brightness LCD

• Network Interface: NMEA 2000® (IEC 61162-3)

• Power: Powered via NMEA 2000® backbone

• Mounting Options: Panel mount with included gasket/bracket

• Operating Environment: Marine-rated for saltwater/UV exposure

• Connectors: Sealed marine-grade NMEA 2000® connectors

Benefits

• Provides clear, real-time vessel data for navigation and system monitoring

• Bright display is easy to read in all lighting conditions

• Integrates smoothly into helm stations without adding clutter

• Acts as a dedicated display for specific data sets (engine, navigation, etc.)

• Expands your marine electronics ecosystem with networked data visibility

Applications

• Primary or secondary helm display

• Engine performance dashboard

• Fuel, water, and battery monitoring screen

• Navigation data (speed, heading, depth, GPS)

• Systems alarms and status pages

• Integration into larger multi-display setups

Summary for the User

The DSM410 is an ideal solution for boaters who need a dedicated, high-performance display that takes up minimal dash space. Its ability to serve as a primary gauge for engine data or a secondary monitoring station for tanks and batteries makes it one of the most versatile tools in the Maretron lineup.

Installation Tip: Since this display has a Load Equivalence Number (LEN) of 7, ensure your NMEA 2000 network has a properly balanced power source, especially if you are running multiple high-draw displays.
