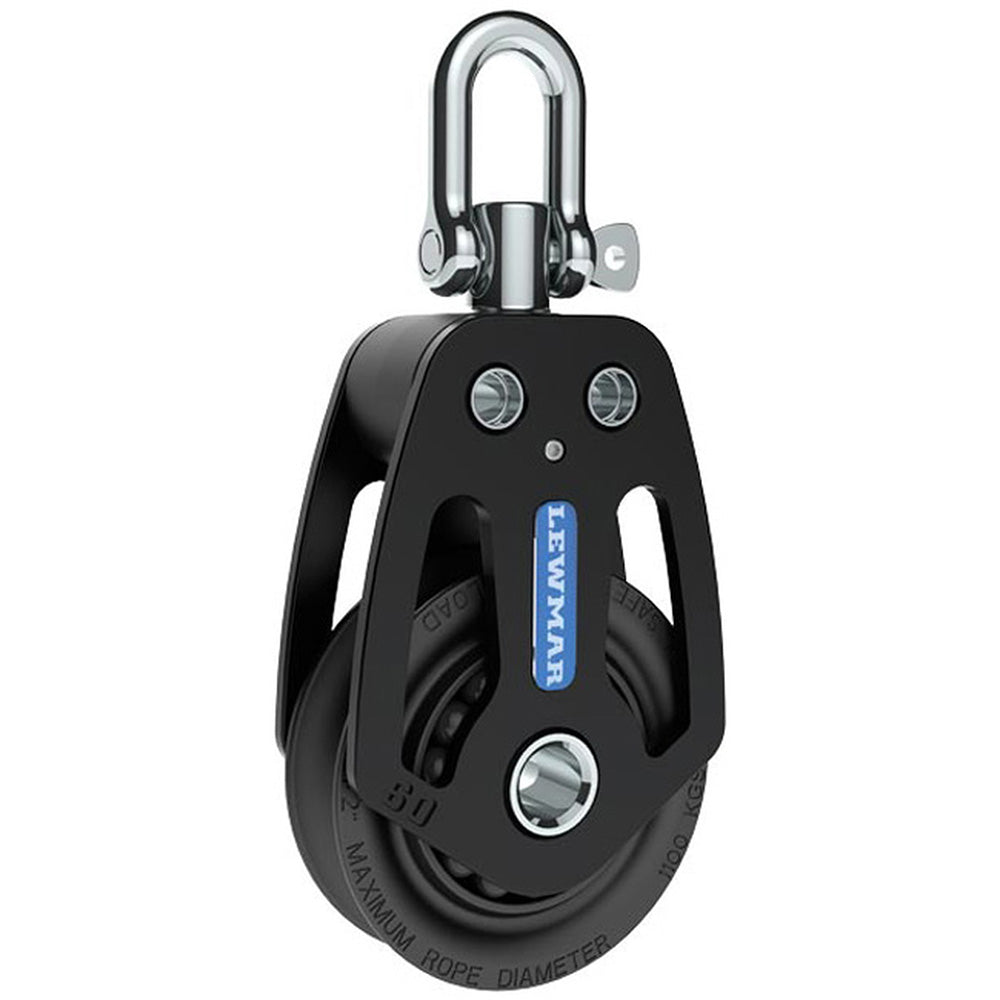

Lewmar 72mm HTX Block - Single - 29197201
Manufacturer Part #: 29197201
Couldn't load pickup availability
Lewmar 72mm HTX Block – Single
Model: 29197201
Sheave Size: 72mm
Configuration: Single Block
Series: HTX
Application: Sailing & Marine Rigging
High-Load Performance for Modern Sail Handling
The Lewmar 72mm HTX Single Block is built for high-load control lines on performance sailboats and cruising yachts. Designed to handle serious loads with smooth efficiency, this block is ideal for sheets, halyards, travelers, and control systems where strength, reliability, and low friction matter.
Smooth, Efficient Load Handling
The large 72mm sheave provides excellent mechanical advantage and reduced friction, making trimming under load easier and more efficient. Perfect for high-performance sailing and heavy-duty rigging applications.
Rugged, Marine-Grade Construction
Engineered for harsh marine environments, the HTX block features corrosion-resistant materials and precision bearings for long-term durability, even under constant load and saltwater exposure.
Versatile Single-Block Configuration
The single-sheave design offers flexibility for a wide range of rigging setups—from primary sheets to control systems—making it a go-to choice for sailors upgrading or replacing deck hardware.
Key Features
-
High Load Efficiency: Designed specifically for high static loads where traditional ball-bearing blocks might deform.
-
Aluminum Construction: Features alloy side cheeks for maximum strength-to-weight ratio and long-term durability.
-
Side Thrust Ball Bearings: Provides smooth rotation even when the line is lead at an angle, preventing friction against the side cheeks.
-
Versatile Mounting: Equipped with a stainless steel shackle for secure attachment to deck eyes or boom bails.
-
Easy Maintenance: Open design allows for simple freshwater flushing to remove salt and grit.
In The Box
| Component | Description |
| 72mm HTX Block | Single block unit with aluminum cheeks (29197201) |
| Stainless Steel Shackle | High-tensile shackle for secure mounting |
| Clevis Pin & Ring | Secure fastening hardware for the shackle |
Technical Specifications
-
Model Number: 29197201
-
Sheave Diameter: 72mm (2 13/16")
-
Max Line Size: 14mm (9/16")
-
Safe Working Load (SWL): 2000 kg (4400 lbs)
-
Breaking Load: 4000 kg (8800 lbs)
-
Weight: 395g (13.9 oz)
Pro Tip: The HTX range is ideal for applications where the block stays under heavy tension for long periods (like a halyard or a mainsheet fine-tune), as the plain bearing won't "flat-spot" like some plastic ball bearings.
Perfect For
-
Cruising sailboats
-
Performance sailboats
-
High-load sheets and halyards
-
Traveler and control systems
-
Deck hardware upgrades
*Sold as an Individual
Manufacturer : Lewmar
Manufacturer Part No : 29197201
UPC : 743683219177
Lewmar 72mm HTX Block - Single - 29197201 is backordered and will ship as soon as it is back in stock.
