Lenco 9" x 12" Standard Performance Trim Tab Kit with Standard Tactile Switch Kit 12V - RT9X12

Lenco 9" x 12" Standard Performance Trim Tab Kit with Standard Tactile Switch – 12V (RT9X12)

The Lenco 9" x 12" Standard Performance Trim Tab Kit (RT9X12) is designed to improve boat handling, stability, and overall ride comfort. Featuring durable stainless steel trim tabs and a reliable 12V electric/hydraulic system, this kit provides smooth, precise trim control to reduce bow rise, enhance planing, and improve fuel efficiency.

Included with the kit is Lenco’s standard tactile switch, offering intuitive helm control for easy adjustments while underway. Built with marine-grade materials for corrosion resistance and long-term durability, this trim tab kit is ideal for a wide range of recreational boats.

Key Features:

• Lenco 9" x 12" standard performance trim tab kit

• 12V electric/hydraulic trim tab system

• Stainless steel tabs for strength and corrosion resistance

• Includes standard tactile switch for easy helm control

• Improves stability, ride quality, and fuel efficiency

• Ideal for recreational marine applications

• Part Number: RT9X12

The Lenco RT9X12 Trim Tab Kit delivers reliable performance and precise control, making it a trusted choice for enhancing boat performance and comfort on the water.

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

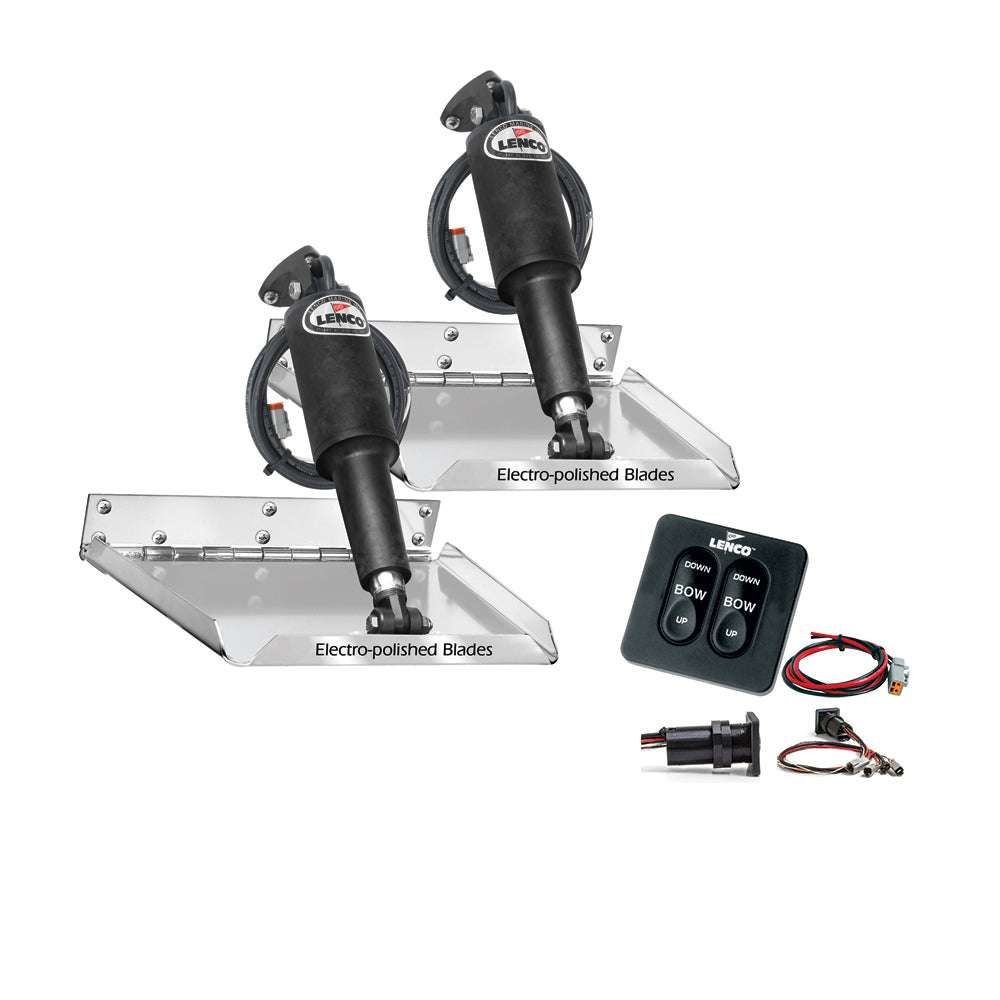

Each kit contains:

• Standard Tactile Switch Kit

  • 2 actuators with 6' Lead & Deutsch Plugs


  • 2 12 Gauge SS Electro Polished trim tab planes

  • 2 20' Actuator Extension Wiring Harness

  • 2 Upper Mounting Bracket with Gland Seal

  • 2 Lower Mounting Bracket

  • All Necessary stainless steel mounting Hardware

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


  Manufacturer : Lenco Marine
  Manufacturer Part No : RT9X12
