Lenco 9" x 9" Standard Trim Tab Kit with LED Indicator Switch Kit 12V - TT9X9I

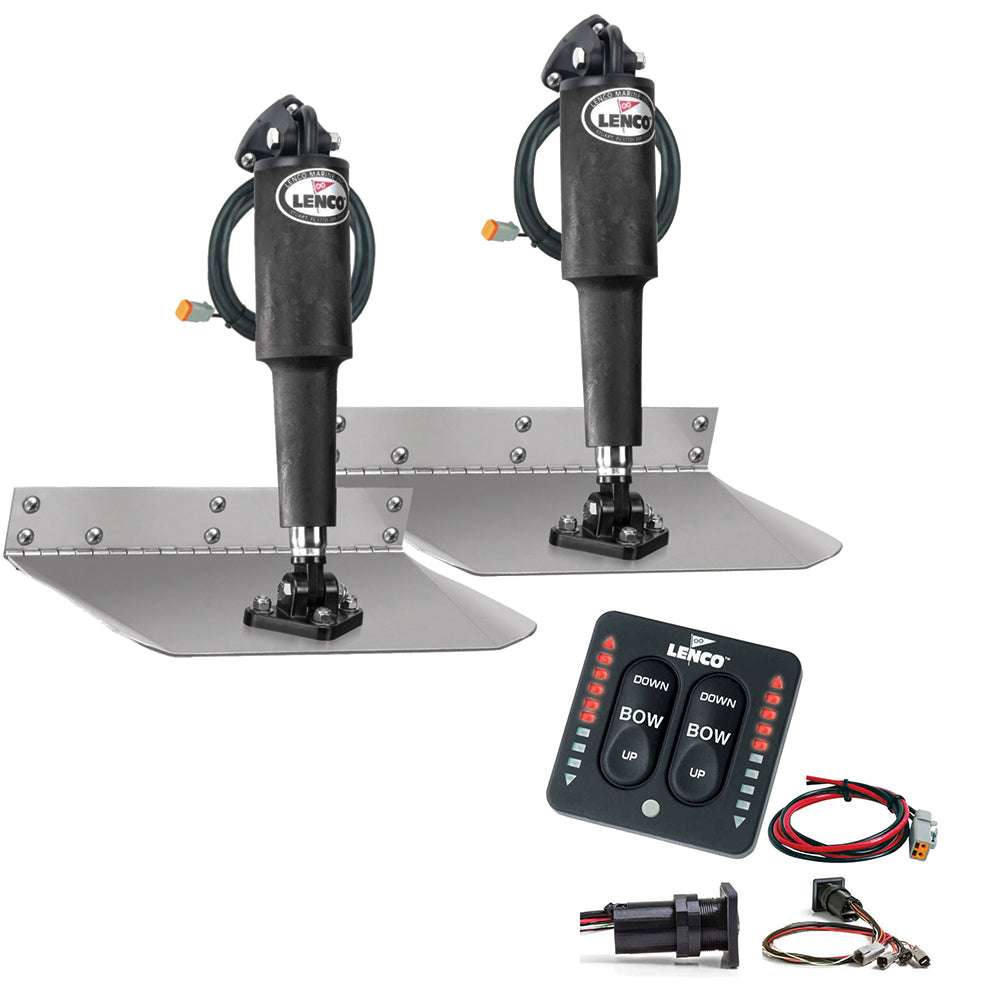

Lenco 9" x 9" Standard Trim Tab Kit with LED Indicator Switch – 12V (TT9X9I)

The Lenco 9" x 9" Standard Trim Tab Kit (TT9X9I) is designed to improve boat stability, handling, and ride comfort. Featuring durable stainless steel trim tabs and a dependable 12V electric/hydraulic system, this kit delivers smooth and precise trim adjustments to reduce bow rise, enhance planing, and improve fuel efficiency.

This kit includes Lenco’s LED indicator switch, providing clear visual feedback of trim tab position for accurate and confident helm control. Built with marine-grade, corrosion-resistant materials, the trim tabs are engineered for long-lasting performance in a wide range of recreational boating conditions.

Available from Anchor Express, the TT9X9I trim tab kit is an excellent solution for boaters seeking improved control, comfort, and efficiency.

Key Features:

• Lenco 9" x 9" Standard Trim Tab Kit

• 12V electric/hydraulic trim tab system

• Stainless steel trim tabs for strength and corrosion resistance

• Includes LED indicator switch for visual trim position monitoring

• Reduces bow rise and improves planing performance

• Enhances stability, handling, and fuel efficiency

• Ideal for recreational marine applications

• Part Number: TT9X9I

The Lenco TT9X9I Trim Tab Kit delivers dependable trim control and smoother performance, helping boaters get the most out of every trip on the water.

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each Kit Includes:

• Tactile LED Indicator Switch Kit

• 2 12-volt Actuators with 6-foot leads and Deutsch connectors

• 2 20' actuator extension harnesseswith Deutsch connectors

• 2 Stainless steel trim tab blades

• 2 upper mounting bracket with gland seal

• 2 lower mounting bracket

• All Necessary stainless steel Mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : TT9X9I
