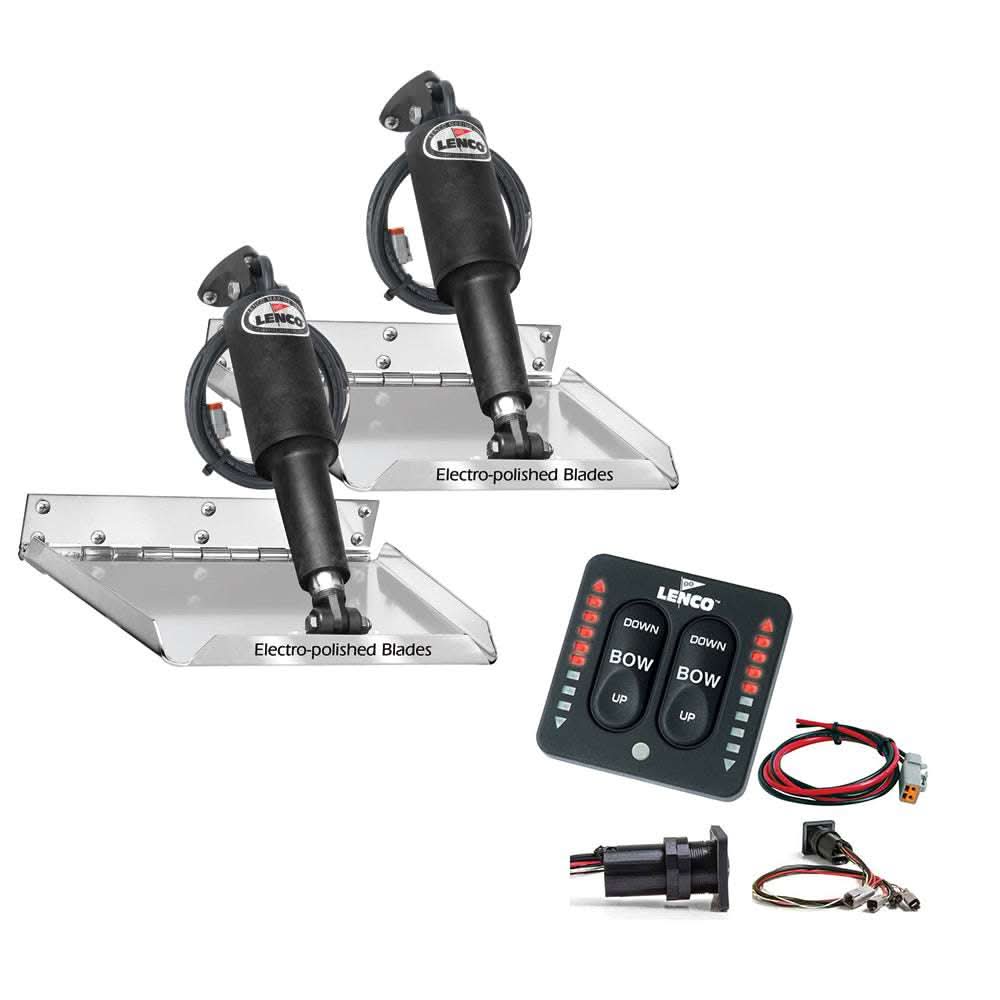

Lenco 9" x 9" Standard Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT9X9I

The Lenco RT9X9I is a high-performance Standard Mount Trim Tab Kit engineered for smaller vessels that require immediate lift and stability. This kit stands out by combining 9" x 9" electro-polished stainless steel planes with Lenco’s premium LED Indicator Switch Kit, offering a professional-grade solution for boats with limited transom space.

Precision "Performance Series" Design

The "RT" (Performance) series features blades that are electro-polished to a mirror finish. This process not only provides a high-end look but significantly increases the metal's resistance to saltwater corrosion and marine growth. The blades are designed with a 1" turned-up edge and a 2" taper on the inside to provide maximum structural rigidity and clean water release.

Key Features

• LED Indicator Switch Kit: Includes a waterproof tactile keypad with two high-intensity LED displays that show the exact position of your tabs

• Auto-Retract & Dimming: The switch automatically retracts the tabs to the "up" position when the ignition is turned off, protecting them during trailering.⁶ A built-in photo eye adjusts LED brightness for optimal visibility in any light

• Instant Response Electric Actuators: Lenco’s ballscrew design is up to three times more powerful than traditional hydraulic systems and reacts instantly to helm commands.

• Maintenance-Free: The system is fully submersible, oil-free, and sealed for life, eliminating the potential for hydraulic leaks or pump failures

• Heavy-Duty Hinge: Features a 12-gauge 304 stainless steel construction with a robust 1/4" diameter hinge pin for extreme durability in rough water

Benefits

• Enhances boat stability and ride comfort

• Reduces bow rise and improves planing performance

• Helps correct list for uneven loading

• LED indicators make trim tab status easy to monitor at the helm

Applications

• Powerboats, center consoles, and cuddy cabins

• Bay and inshore fishing boats

• Recreational watercraft needing improved balance and handling

Technical Specifications

What’s Included in the Box:

• (2) 12-gauge stainless steel electro-polished trim tab planes

• (2) 12V actuators with 6' leads and Deutsch connectors

• (1) Tactile LED Indicator Switch Kit (Keypad and Control Box)

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware

Installation Pro-Tip:

Because the RT9X9I uses a relatively small plane, placement is critical. Mount the tabs as far outboard as possible, but ensure they are at least 2 inches in from the side of the boat (the chine) to avoid pulling air into the prop or losing lift during turns. Always apply a high-quality marine sealant like 3M 4200 to the mounting screws to prevent transom rot while still allowing for future removal.
