Lenco 9" x 18" Standard Trim Tab Kit without Switch Kit 12V - 15002-101
Manufacturer Part #: 15002-101
Couldn't load pickup availability

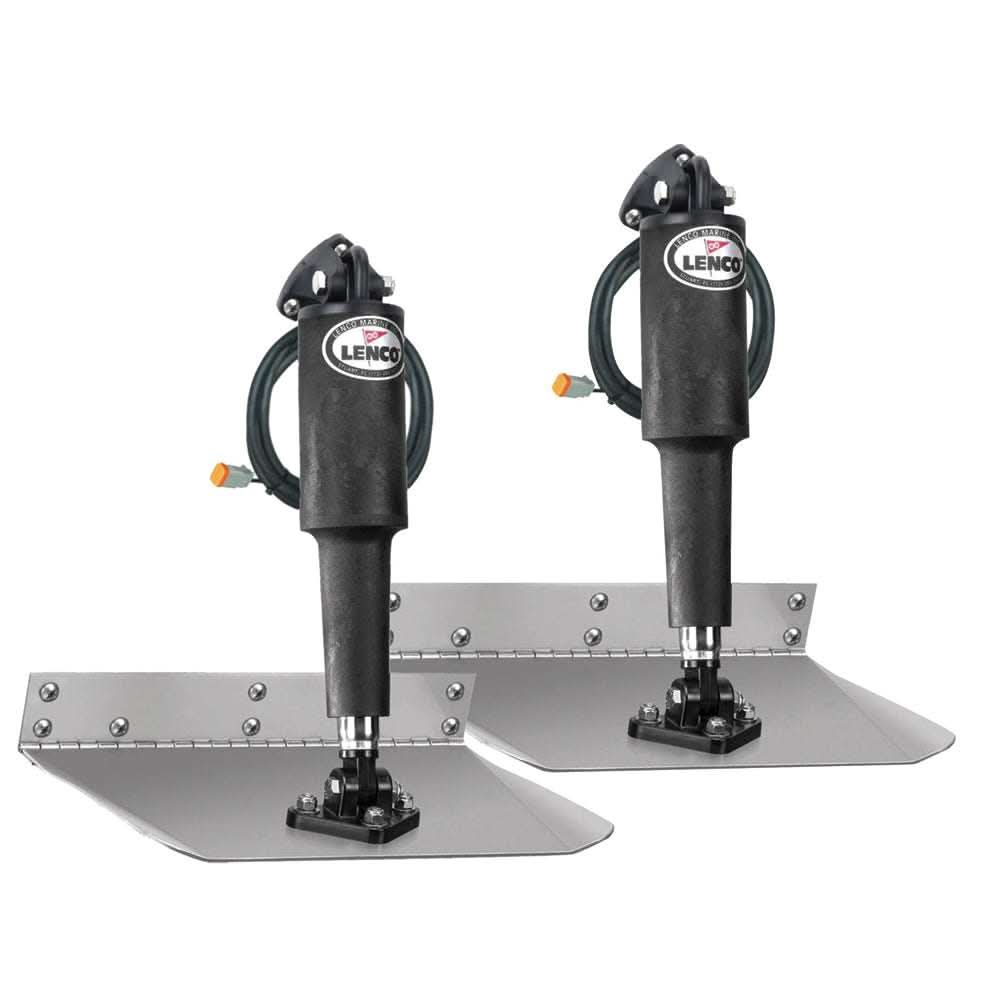

Lenco 9" x 18" Standard Trim Tab Kit without Switch Kit 12V – 15002-101
The Lenco 15002-101 is a 9" x 18" Standard Trim Tab Kit designed to provide reliable, precise trim control for small to mid-size boats that benefit from added tab length for improved lift and stability. Featuring 9" x 18" trim tabs, this all-electric system enhances handling, reduces bow rise, and improves overall ride comfort across a wide range of water conditions.
Built with Lenco’s proven all-electric trim tab technology, the 12-volt electric actuators deliver fast, quiet, and dependable operation without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent choice for replacement installations, system upgrades, or custom helm configurations where a compatible Lenco tactile switch, LED indicator switch, or integrated control system is already installed.
The 9" x 18" trim tabs help correct side-to-side list caused by uneven passenger or gear loads, minimize porpoising at cruising speeds, and optimize the boat’s running angle for improved fuel efficiency. Constructed from marine-grade, corrosion-resistant materials, the Lenco 15002-101 is engineered to withstand harsh saltwater environments and deliver long-lasting performance season after season.
Key Benefits
-
9" x 18" trim tabs for increased lift and improved hull control
-
Reduces bow rise for faster planing and better forward visibility
-
Corrects side-to-side list for balanced, stable operation
-
Minimizes porpoising at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
9" x 18" Standard Trim Tabs for reliable and consistent performance
-
12V electric actuators for fast, quiet, and dependable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15002-101
-
Tab Dimensions: 9" x 18"
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 9" x 18" Standard Trim Tab Kit without Switch Kit is ideal for:
-
Center console boats
-
Inshore and nearshore fishing vessels
-
Walkaround and recreational boats
-
Replacement or custom trim tab installations
Maintenance-Free Electric Precision
Lenco’s all-electric actuators have replaced the slow response and maintenance headaches of older hydraulic systems.
-
Instant Response: The included 12V 101 Standard Actuators respond immediately to control inputs. There is no hydraulic lag, ensuring you can dial in the perfect running angle in real-time.
-
Clean & Eco-Friendly: No hydraulic pumps to mount and no oil to leak into your bilge or the ocean. This system is completely self-contained and maintenance-free.
-
Submersible Reliability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals for 100% waterproof performance.
Built for Harsh Saltwater Environments
-
Stainless Steel Strength: The 24-inch blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity.
-
Flexible Control: Because this is a "Without Switch" kit, you have the freedom to pair these tabs with Lenco's LED Indicator Switch, Standard Tactile Switch, or integrated digital switching (sold separately).
-
Fuel Efficiency: By optimizing your boat's pitch, you reduce hull drag and engine labor, leading to significantly lower fuel consumption on long runs.
Technical Specifications
| Feature | Details |
| Model Number | 15003-101 |
| Blade Size | 9" Depth x 24" Width |
| Boat Length Range | 17' – 30' |
| Voltage | 12V |
| Material | 12-Gauge 304 Stainless Steel |
| Switch Included | No (Sold Separately) |
| Actuators | (2) 101 Standard Actuators |
In the Box
-
(2) Trim Tab Blades: 9" x 24" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(2) Upper Mounting Brackets: With specialized gland seals.
-
(2) Lower Mounting Brackets: (Pre-attached to blades).
-
(1) Hardware Pack: Complete set of stainless steel mounting screws.
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for the 15003-101
"The 9" x 24" is the preferred choice for fishing boats because the shallow 9-inch depth keeps the tabs closer to the transom. This significantly reduces the chance of a fishing line getting snagged on the tab while you're fighting a fish around the motor."
Upgrade your boat with the Lenco 9" x 18" Standard Trim Tab Kit (15002-101) for smoother rides, improved handling, and dependable all-electric trim control trusted by boaters worldwide.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15002-101
UPC : 874847004237
Lenco 9" x 18" Standard Trim Tab Kit without Switch Kit 12V - 15002-101 is backordered and will ship as soon as it is back in stock.
