Lenco 9" x 12" Standard Trim Tab Kit with LED Indicator Switch Kit 12V - 15108-103
Manufacturer Part #: 15108-103
Couldn't load pickup availability
Lenco 9" x 12" Standard Trim Tab Kit with LED Indicator Switch Kit 12V – 15108-103
The Lenco 9" x 12" Standard Trim Tab Kit (15108-103) delivers precise, reliable trim control for small to mid-size boats, improving handling, stability, and overall ride comfort in a wide range of water conditions. Featuring 9" x 12" trim tabs, this system provides balanced lift and effective leveling without adding unnecessary drag, making it an excellent choice for boats that require responsive trim adjustment and improved performance.
Powered by Lenco’s proven all-electric trim tab technology, this 12-volt system offers fast, quiet, and dependable operation without the complexity of hydraulic pumps, hoses, or fluid. The electric actuators respond instantly to helm input, allowing boaters to fine-tune their running angle for smoother rides, faster planing, and improved fuel efficiency.
This kit includes an LED indicator switch, providing clear, real-time visual feedback on trim tab position at the helm. The LED display allows for more precise adjustments, helping reduce bow rise, eliminate porpoising, and correct side-to-side listing caused by uneven passenger or gear weight.
Built from marine-grade, corrosion-resistant materials, the Lenco 15108-103 trim tabs are engineered to withstand harsh saltwater environments and demanding marine use, delivering long-lasting durability and reliable performance season after season.
Key Benefits
-
9" x 12" trim tabs for balanced lift and responsive control
-
LED indicator switch shows real-time trim tab position
-
Reduces bow rise for quicker planing and improved visibility
-
Corrects side-to-side list caused by uneven loads
-
Minimizes porpoising at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
9" x 12" Standard Trim Tabs for dependable performance
-
12V electric actuators for fast, quiet, and reliable operation
-
LED indicator helm switch kit for precise, confident control
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15108-103
-
Tab Dimensions: 9" x 12"
-
Voltage: 12V
-
Switch Type: LED Indicator Switch Kit
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 9" x 12" Standard Trim Tab Kit with LED Indicator Switch is ideal for:
-
Center console boats
-
Bay boats and flats boats
-
Dual console and runabout vessels
-
Inshore and nearshore fishing boats
Premium LED Indicator Control
This kit features Lenco’s integrated LED Indicator Switch, providing a level of precision that standard switches lack.
-
Real-Time Tracking: Two rows of high-intensity LEDs show the exact position of your port and starboard tabs.
-
Built-in Control Box: This "All-in-One" design simplifies the wiring process and saves space behind the dash.
-
Auto-Retract Feature: Automatically retracts the tabs when the engine is turned off, preventing damage from lifting straps, trailers, or dock pilings.
Built to Outlast the Elements
-
Instant Electric Response: Unlike hydraulic systems that suffer from lag and leaks, Lenco’s 12V electric actuators respond instantly to your input.
-
Marine-Grade Durability: The blades are crafted from 12-gauge 304 stainless steel with a flared trailing edge for added strength.
-
Maintenance-Free: The actuators are 100% waterproof and require no oil or hydraulic fluid, making them environmentally friendly and hassle-free.

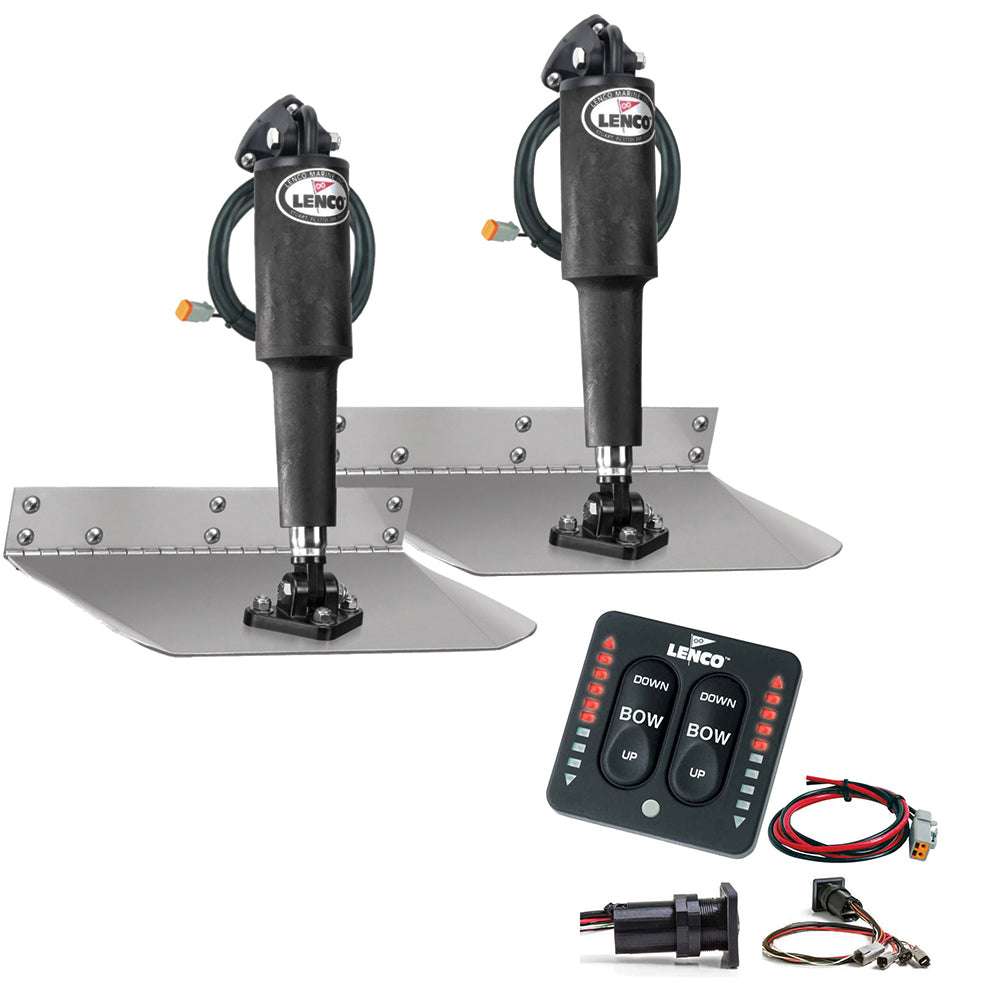

In the Box: 15108-103 Complete Kit
-
(2) Trim Tab Blades: 9" x 12" stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(1) LED Indicator Switch: Integrated control box/keypad.
-
(2) 20' Wiring Harnesses: Extension cables to reach from transom to helm.
-
(1) Mounting Hardware Pack: Stainless steel screws and brackets.
-
(1) Installation Instructions: Clear, step-by-step setup guide.
Comparison Note for Buyers:
"The 9" x 12" (15108-103) is the 'long' version of the 9" x 9" kit. If your transom has the vertical space, the extra 3 inches of length in this 12-inch kit provides significantly more leverage and lift, making it the better choice for boats over 17 feet or those with heavy four-stroke outboards.
Upgrade your vessel with the Lenco 9" x 12" Standard Trim Tab Kit (15108-103) to experience smoother rides, improved handling, and precise electric trim control with the added confidence of LED position indication.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15108-103
Lenco 9" x 12" Standard Trim Tab Kit with LED Indicator Switch Kit 12V - 15108-103 is backordered and will ship as soon as it is back in stock.
