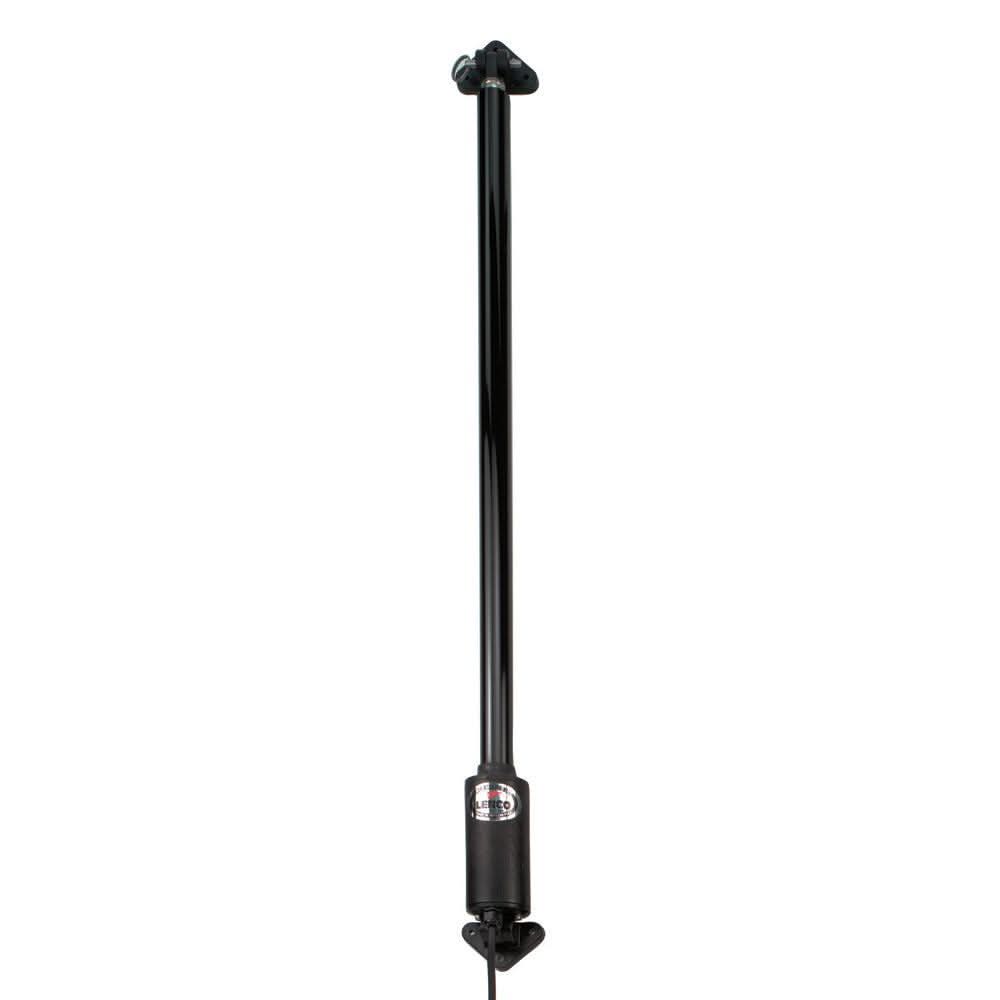

Lenco 12 Volt 41"-65" Hatch Lift without Switch - 20784-001
Manufacturer Part #: 20784-001
Couldn't load pickup availability
Lenco 12 Volt 41"–65" Hatch Lift without Switch – 20784-001
The Lenco 20784-001 12-Volt Hatch Lift delivers smooth, powerful, and reliable lifting assistance for marine hatches, engine compartments, lazarettes, and large storage lids. With an adjustable 41"–65" extended length, this electric hatch lift is ideal for mid-to-large hatch applications requiring controlled motion and dependable performance.
Built with Lenco’s proven all-electric linear actuator technology, this hatch lift provides quiet, consistent operation without the leaks, hoses, or maintenance associated with hydraulic systems. Supplied without a switch, the 20784-001 is perfect for replacement installations, custom wiring projects, or integration with existing momentary rocker switches or onboard control systems.
Constructed from marine-grade, corrosion-resistant materials, the Lenco 20784-001 is engineered to withstand harsh saltwater environments and demanding marine conditions, delivering long-lasting durability and dependable operation season after season.
Key Benefits
-
41"–65" adjustable operating range for medium and large hatch applications
-
Smooth, controlled lifting and lowering of heavy hatches
-
Reduces manual lifting effort and improves onboard safety
-
Quiet all-electric operation
-
Low-maintenance design with no hydraulic pumps or fluid
-
Ideal for custom or replacement hatch lift installations
Features
-
12-volt electric hatch lift actuator
-
Extended 41"–65" length range
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Sealed actuator for durability in harsh marine environments
-
Compatible with standard momentary switches and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in marine motion control
Specifications
-
Model Number: 20784-001
-
Voltage: 12V DC
-
Extended Length Range: 41" to 65"
-
Switch: Not Included
-
System Type: Electric Hatch Lift / Linear Actuator
Ideal Applications
The Lenco 12V Hatch Lift 20784-001 is ideal for:
-
Engine hatches
-
Lazarette lids
-
Large storage compartments
-
Deck hatches
-
Custom marine lift applications
The Electric Advantage
Lenco’s electric lift technology offers a cleaner, more reliable, and safer alternative to traditional hydraulic or gas-shock systems.
-
Maintenance-Free: Unlike hydraulic lifts, this electric unit requires no pumps, no messy fluids, and no hoses. This eliminates the risk of oil leaks in your bilge and provides a much simpler installation.
-
Safety First (Non-Locking Design): The internal ball screw is designed to be non-locking.5 This critical safety feature allows the hatch to be pulled open manually from the outside in the event of a total onboard power failure.
-
Quiet & Consistent: Provides steady torque and smooth movement, holding the hatch firmly in any position without "creeping" or losing height over time.
Rugged Marine Construction
-
Corrosion-Proof Materials: The inner and outer tubes are manufactured from clear anodized aluminum, specifically chosen for its superior resistance to salt spray and the humid environment of an engine room.
-
Submersible Durability: The motor and internal gears are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, ensuring the unit is 100% waterproof.
-
Plug-and-Play Wiring: Features a 2-foot lead with a factory-installed waterproof Deutsch connector for a secure, corrosion-resistant electrical connection.
Technical Specifications:
| Feature | Details |
| Model Number | 20784-001 |
| Extension Range | 41" Retracted to 65" Extended |
| Stroke Length | 24" |
| Voltage | 12-Volt |
| Internal Mechanism | Ball Screw Design (Non-Locking) |
| Tube Material | Anodized Aluminum |
| Switch Included | No (Sold Separately) |
| Connector | 2' Lead with Deutsch Plug |
In the Box: 20784-001
-
(1) 12V Electric Hatch Lift: 41" to 65" extension.
-
(2) Mounting Brackets: High-strength stainless steel.
-
(2) Clevis Pins: For secure attachment at both the hatch and hull pivot points.
-
Note: This model does not include a helm switch or the extension wiring harnesses.
Pro-Tip for Installation:
"To ensure the longevity of your 20784-001, always verify that the hatch hinges are well-lubricated and moving freely. An electric lift is designed to handle weight, but excessive friction from bound hinges can lead to premature wear on the actuator's motor."
Upgrade your vessel with the Lenco 12 Volt 41"–65" Hatch Lift without Switch (20784-001) for smooth, reliable hatch operation backed by trusted all-electric marine technology.
