Lenco 12" x 9" Standard Performance Trim Tab Kit with Standard Tactile Switch Kit 12V - RT12X9

Lenco 12" x 9" Standard Performance Trim Tab Kit with Standard Tactile Switch Kit 12V - RT12X9

The Lenco RT12X9 is an elite-level electric trim tab system engineered for high-speed performance and offshore durability. This 12V kit features 12" x 9" electro-polished stainless steel blades and the Standard Tactile Switch. Unlike traditional hydraulic systems, Lenco’s all-electric design provides immediate response, is completely oil-free, and requires zero maintenance beyond basic cleaning.

Engineered for Performance

The "Performance" series is distinguished by its 12-gauge 304 stainless steel construction. The blades feature 1" turned-up edges and a 2" taper on the inside, a design that minimizes drag while maximizing lift. This makes the RT12X9 ideal for center consoles, performance bass boats, and fast offshore vessels that need to maintain a level attitude at high speeds.

Key Features:

• Electro-Polished Blades: The stainless steel undergoes a chemical treatment that increases corrosion resistance and creates a mirror-like finish, making it harder for marine growth to adhere.

• Instant Response Actuators: Lenco actuators are fully submersible and move twice as fast as hydraulic rams, allowing for near-instant bow correction in rough seas.

• Standard Tactile Switch Kit: Includes a low-profile, waterproof keypad with a solid-state control box. It features a built-in retractor, which automatically raises the tabs when the engine ignition is turned off.

• No-Drift Technology: The self-locking ball screw design within the actuator ensures the tabs stay exactly where you set them, even when backing down or jumping wakes.

• Plug & Play: Uses waterproof Deutsch connectors to simplify installation and ensure a reliable, watertight electrical connection.

Technical Specifications:

• Model Number: RT12X9

• Tab Dimensions: 12" (Width/Span) x 9" (Length/Chord)

• Boat Length Recommendation: 14' to 18' (High-speed/Performance use)

• Voltage: 12V DC

• Minimum Transom Height: 14" (35.6 cm)

• Actuator Extension Harnesses: 20' (6.1 m) included

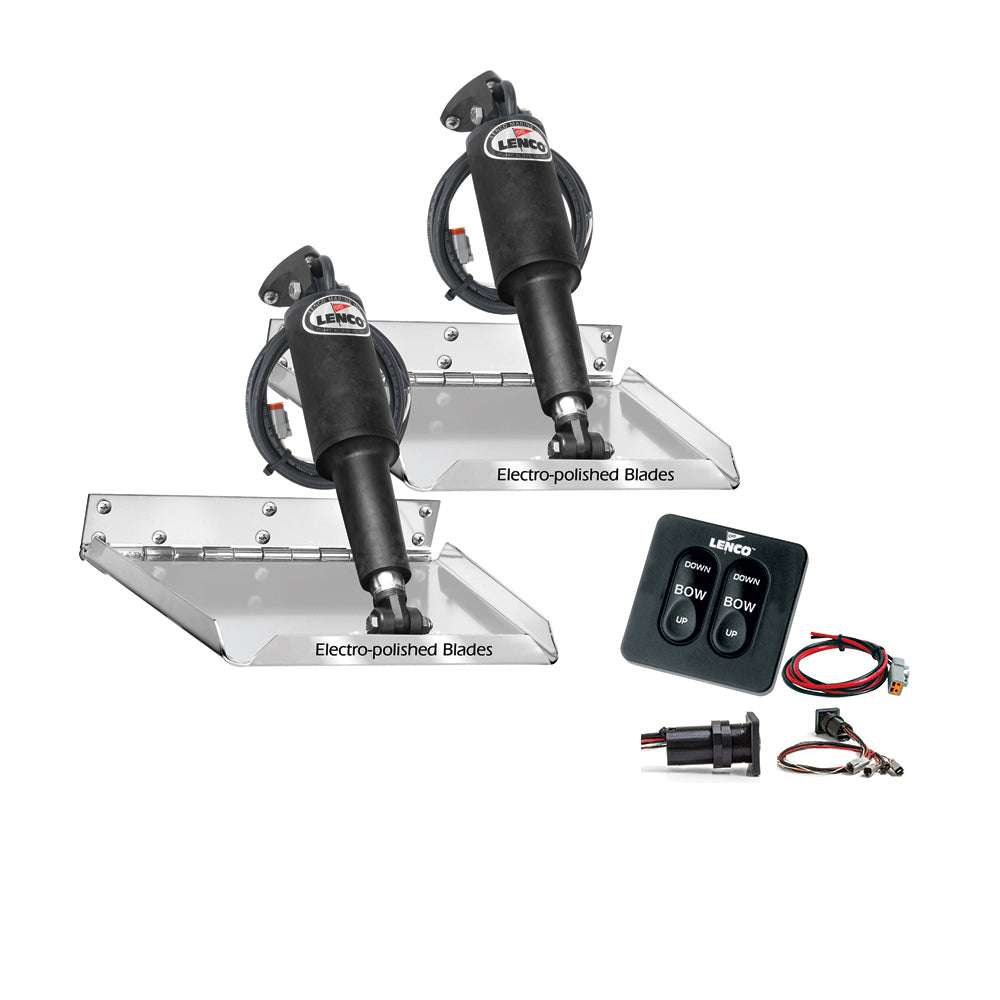

What’s Included in the RT12X9 Kit:

• (2) 12" x 9" Electro-Polished Stainless Steel Trim Tab Planes

• (2) 15054-001 Actuators with 6' leads

• (2) 30133-103 Actuator Extension Wiring Harnesses (20')

• (1) Standard Tactile Switch Kit (124SSR) with Control Box

• (2) Upper Mounting Brackets with Gland Seals

• All necessary stainless steel mounting hardware

Installation Note:

The Standard Tactile Switch requires a 2" (51mm) hole in the dashboard. Because of the 1" turned-up edges on the performance blades, ensure your transom has enough horizontal clearance to mount the tabs without interfering with transducers, swim ladders, or motor mounts.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : RT12X9
