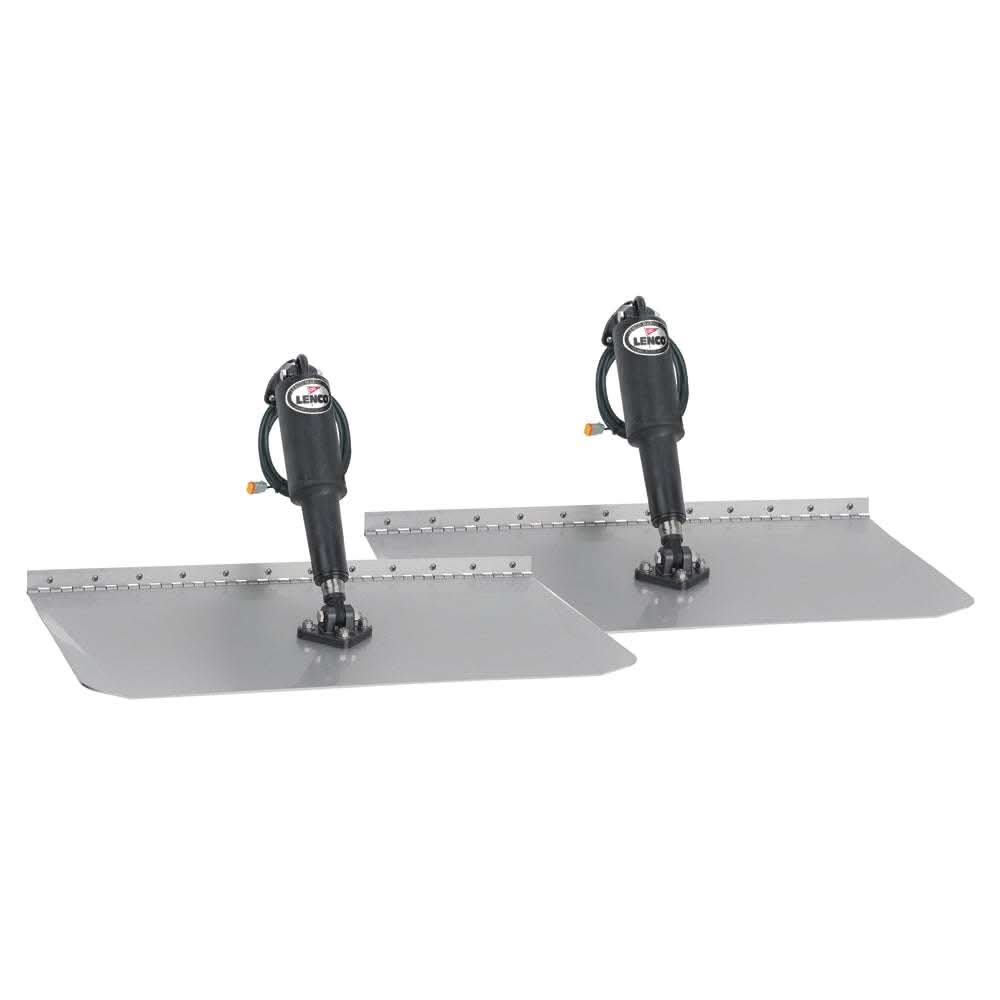

Lenco 12" x 24" Standard Trim Tab Kit without Switch Kit 12V - 15009-101
Manufacturer Part #: 15009-101
Couldn't load pickup availability
Lenco 12" x 24" Standard Trim Tab Kit without Switch Kit 12V – 15009-101
The Lenco 15009-101 is a 12" x 24" Standard Trim Tab Kit designed to deliver dependable, precise trim control for mid-size to larger boats that require added lift and improved hull stability. Featuring 12" x 24" trim tabs, this all-electric system provides a broad lifting surface that enhances ride comfort, reduces bow rise, and corrects side-to-side listing in a wide range of water conditions.
Built on Lenco’s proven all-electric trim tab technology, the 12-volt electric actuators offer fast, quiet, and reliable performance without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent choice for replacement installations, upgrades, or custom helm setups where a compatible Lenco standard tactile switch, LED indicator switch, or integrated control system is already installed.
Constructed from marine-grade, corrosion-resistant materials, the Lenco 15009-101 trim tabs are engineered to withstand harsh saltwater environments and demanding marine use, ensuring long-lasting durability and consistent performance season after season.
Key Benefits
-
12" x 24" trim tabs for increased lift and improved hull control
-
Reduces bow rise for faster planing and improved forward visibility
-
Corrects side-to-side list caused by uneven passenger or gear loads
-
Minimizes porpoising and hull instability at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
12" x 24" Standard Trim Tabs for wide, effective lift
-
12V electric actuators for fast, quiet, and dependable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15009-101
-
Tab Dimensions: 12" x 24"
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 12" x 24" Standard Trim Tab Kit without Switch Kit is ideal for:
-
Mid-size and larger center console boats
-
Offshore and coastal fishing boats
-
Walkaround and cruiser vessels
-
Replacement or custom trim tab installations
The Electric Advantage: Faster and Cleaner
Lenco's all-electric design has revolutionized the marine industry by removing the maintenance burdens of hydraulic systems.
-
Instant Response: The included 12V 101 Standard Actuators provide immediate feedback. Unlike hydraulic systems that suffer from lag, these electric tabs allow for micro-adjustments in real-time.
-
Oil-Free Reliability: No hydraulic pumps to mount, no hoses to run, and zero risk of messy oil leaks in your bilge or the ocean.
-
Maintenance-Free: The system is completely self-contained and factory-sealed, designed to be 100% waterproof and submersible for years of worry-free use.
Built to Withstand the Elements
-
Heavy-Duty Construction: The 24-inch blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity.
-
Saltwater Ready: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, specifically designed for the harshest saltwater environments.
-
Custom Flexibility: Because this is a "Without Switch" kit, it provides the freedom to select your preferred control interface, whether it's a Lenco LED Indicator Switch or a fly-by-wire digital integration.
In the Box: 15009-101 Kit
-
(2) Trim Tab Blades: 12" x 24" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(2) Upper Mounting Brackets: Featuring specialized gland seals.
-
(2) Lower Mounting Brackets: (Pre-attached to blades).
-
(1) Hardware Pack: Complete set of stainless steel mounting screws.
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for Large-Vessel Owners:
"The 12" x 24" configuration is a favorite for boats with large outboard brackets. The 12-inch depth provides a longer lever arm, which is crucial for pushing the bow down on boats that carry a lot of weight behind the transom. It’s the perfect balance of lift and lateral stability."
Would you like me to find the specific part numbers for the Lenco LED Indicator Switch or the 20-foot extension harnesses required to complete this 15009-101 installation?
Upgrade your vessel with the Lenco 12" x 24" Standard Trim Tab Kit (15009-101) to experience smoother rides, improved handling, and dependable all-electric trim control trusted by boaters worldwide.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15009-101
UPC : 874847004305
