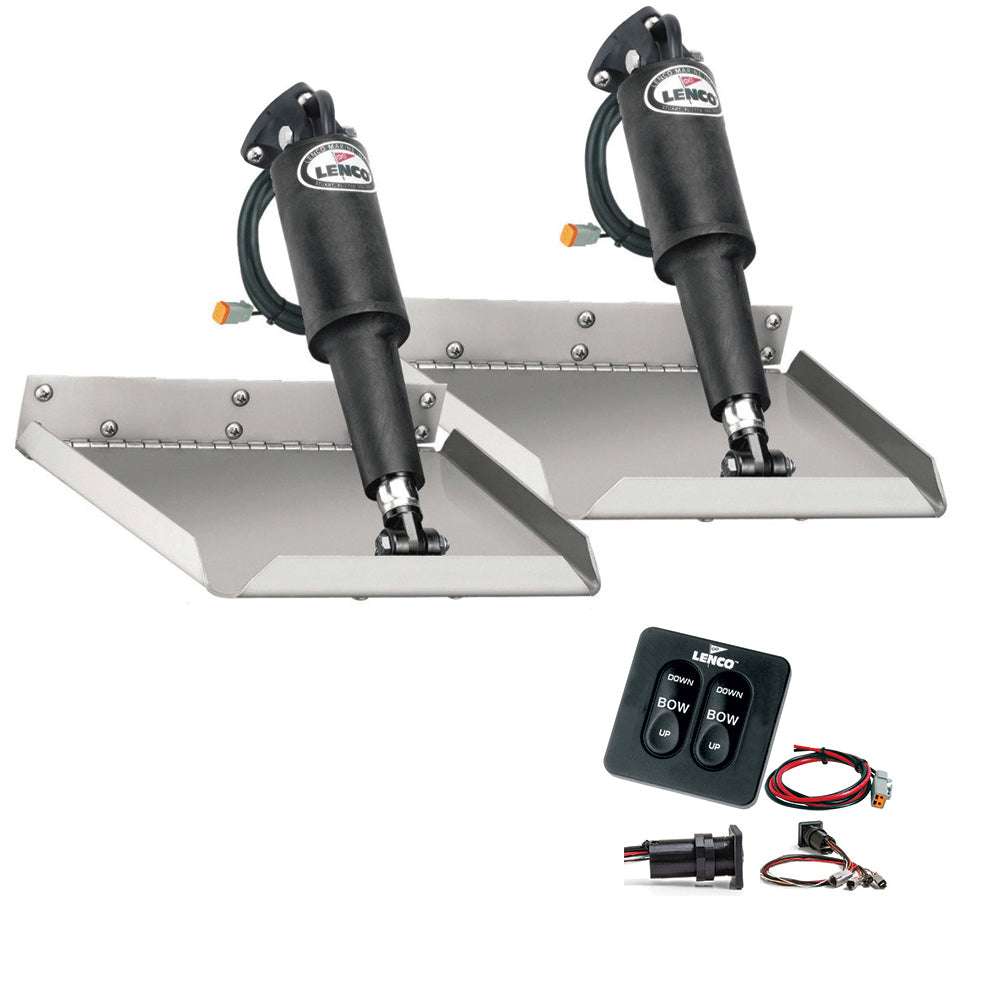

Lenco 12" x 18" Edgemount Trim Tab Kit with Standard Tactile Switch 12V - TT12X18E

The Lenco RT9X12 is a complete, 12-volt Standard Performance Trim Tab Kit designed for mid-sized boats that require extra durability for aggressive handling. This kit features 9" x 12" electro-polished stainless steel planes and is bundled with Lenco's Standard Tactile Switch, providing a simplified but highly responsive interface for correcting your boat's attitude.

Performance Series Design

The "RT" (Performance) series is built to handle the stresses of higher speeds and rougher water. The blades are electro-polished to a mirror finish, which not only looks professional but also provides superior resistance to saltwater corrosion and marine growth The planes feature a 1" turned-up edge and a 2" taper on the inside to increase structural rigidity and ensure clean water release.

Key Features

• Standard Tactile Switch Kit: This waterproof, low-profile switch allows for independent control of each tab It features solid-state electronics and a built-in retractor that automatically raises the tabs when the engine is turned off to prevent damage during trailering.

• Instant Response Actuators: Lenco’s electric ballscrew design is significantly faster and more powerful than hydraulic systems, offering immediate reaction to helm commands without the mess of oil or pumps.

• Maintenance-Free: The actuators are fully submersible, oil-free, and sealed for life They are constructed from high-impact, UV-resistant nylon with 316 stainless steel rams.

• Electro-Polished 304 Stainless: 12-gauge stainless steel construction ensures the system can withstand the harsh marine environment and high-pressure loads.

Benefits

• Improves boat stability and handling

• Helps reduce bow rise, stern squat, and side list

• Enhances fuel efficiency and smoother ride quality

• Ideal for recreational powerboats, center consoles, sport boats, and cuddy cabins

Applications

• Boats with limited transom height

• Coastal cruising and offshore conditions

• Replacement or upgrade to factory trim tab systems

Technical Specifications:

What’s Included in the Box:

• (2) 12-gauge stainless steel electro-polished trim tab planes

• (2) 12V actuators with 6' leads and Deutsch connectors

• (1) Standard Tactile Switch Kit (Keypad and Control Box)

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware

Installation Pro-Tip:

When mounting the planes, ensure they are at least 2 inches in from the side (chine) of the boat to avoid pulling air during turns. Because this model uses a tactile switch without LED indicators, you should familiarize yourself with the sound and timing of the actuators while at the dock so you can "feel" your tab adjustments instinctively while underway.
