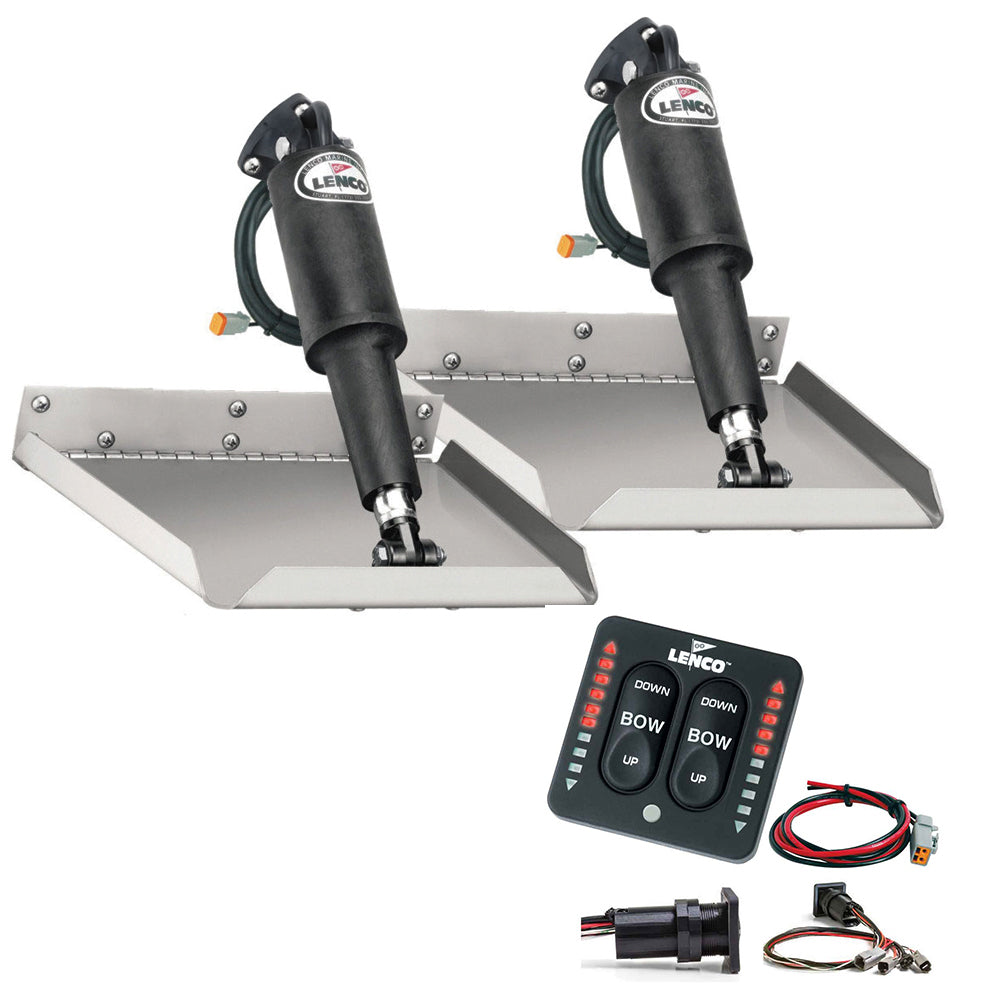

Lenco 12" x 18" Edgemount Trim Tab Kit with LED Indicator Switch Kit 12V - TT12X18EI

Lenco 12" x 18" Edgemount Trim Tab Kit with LED Indicator Switch – 12V – TT12X18EI

The Lenco TT12X18EI Edgemount Trim Tab Kit is designed to enhance boat performance, stability, and ride comfort while allowing installation at the outer edges of the transom. Featuring 12" x 18" stainless steel trim tabs, this edgemount system provides improved leverage and control, making it ideal for boats with limited transom space or unique hull designs.

This kit includes a 12V LED indicator switch, offering precise trim control with clear visual feedback at the helm. The edgemount configuration maximizes performance by positioning the tabs closer to the chine, improving responsiveness and reducing listing and porpoising.

Built with durable, corrosion-resistant materials, Lenco edgemount trim tabs are engineered to withstand harsh marine environments and deliver long-lasting, reliable performance.

Key Features:

• 12" x 18" stainless steel edgemount trim tabs

• 12V LED indicator switch for precise trim adjustment

• Edgemount design improves leverage and control

• Reduces listing and porpoising for smoother rides

• Enhances handling, stability, and fuel efficiency

• Corrosion-resistant construction for marine durability

Ideal For:

• Boats with limited transom mounting space

• Hull designs requiring edgemount trim tabs

• Boaters seeking improved responsiveness and control

• Enhancing ride comfort and vessel performance

The Lenco 12" x 18" Edgemount Trim Tab Kit with LED Indicator Switch – TT12X18EI is a powerful upgrade for boat owners looking to maximize control, stability, and performance on the water.

Available from Anchor Express—your trusted source for Lenco marine trim tab solutions.

Mounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each Kit Includes:

• Tactile LED Indicator Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : TT12X18EI
