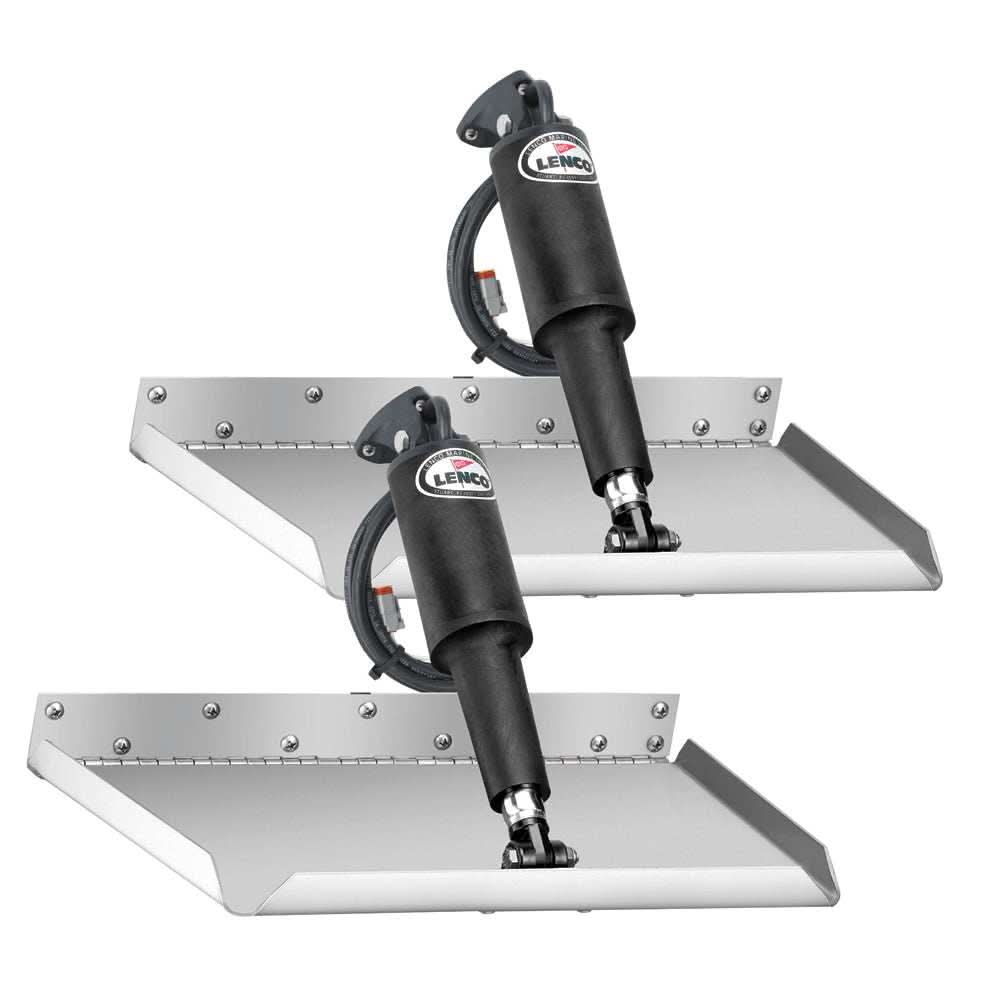

Lenco 12" x 18" Edgemount Trim Tab Kit w/o Switch Kit 12V - 15017-101
Manufacturer Part #: 15017-101
Couldn't load pickup availability
Lenco 12" x 18" Edgemount Trim Tab Kit without Switch Kit 12V – 15017-101
The Lenco 15017-101 is a 12" x 18" Edgemount Trim Tab Kit engineered for boats that need improved trim control while maximizing usable transom space. The edgemount design positions the trim tabs along the outer edges of the transom, making this kit ideal for vessels equipped with swim platforms, ladders, jack plates, or other transom-mounted accessories.
Built with Lenco’s trusted all-electric trim tab technology, this 12-volt system delivers fast, quiet, and dependable operation without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent solution for replacement installations or custom helm setups where a compatible Lenco tactile or LED indicator switch is already installed.
The 12" x 18" trim tabs provide effective lift to reduce bow rise, correct side-to-side list, and minimize porpoising, resulting in improved ride comfort, handling, and fuel efficiency. Constructed from marine-grade, corrosion-resistant materials, the Lenco 15017-101 is built to withstand harsh saltwater environments and deliver long-lasting performance.
Key Benefits
-
Edgemount design preserves valuable transom space
-
12" x 18" trim tabs for balanced lift and precise hull control
-
Reduces bow rise for quicker planing and improved visibility
-
Corrects side-to-side list caused by uneven passenger or gear loads
-
Minimizes porpoising at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
12" x 18" Edgemount Trim Tabs for transom-edge installation
-
12V electric actuators for fast, quiet, and reliable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15017-101
-
Tab Dimensions: 12" x 18"
-
Mounting Style: Edgemount
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 12" x 18" Edgemount Trim Tab Kit without Switch Kit is ideal for:
-
Center console boats with limited transom space
-
Boats with swim platforms or jack plates
-
Inshore and offshore fishing vessels
-
Replacement or custom trim tab installations
Maintenance-Free Electric Innovation
Lenco’s all-electric design eliminates the lag and environmental risks associated with hydraulic systems.
-
Instant Response: The included 12V 101 Standard Actuators respond immediately to helm input. This allows for precise, real-time leveling to correct for wind heel, uneven passenger loads, or engine torque.
-
Oil-Free Reliability: No hydraulic pumps to mount, no hoses to run, and zero risk of oil leaks. The system is completely self-contained and maintenance-free.
-
Submersible Durability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, ensuring they remain 100% waterproof in harsh saltwater environments.
Engineered for Longevity and Customization
-
Heavy-Duty Construction: The 18-inch blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity and lift.
-
Custom Control Flexibility: As a "Without Switch" kit, this package gives you the freedom to choose your control interface—whether it’s the Lenco LED Indicator Switch, a Standard Tactile Switch, or an integrated digital switching system (sold separately).
-
Fuel Efficiency: By optimizing your boat's running angle, you reduce hull drag and engine labor, leading to significantly better fuel economy and a smoother, drier ride.
Technical Specifications:
| Feature | Details |
| Model Number | 15017-101 |
| Blade Size | 12" Length (Depth) x 18" Width |
| Mounting Style | Edgemount (Low-profile) |
| Boat Length Range | 18' – 30' |
| Voltage | 12V |
| Material | 12-Gauge 304 Stainless Steel |
| Switch Included | No (Sold Separately) |
In the Box: 15017-101 Kit
-
(2) Edgemount Trim Tab Blades: 12" x 18" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(2) Upper Mounting Brackets: With specialized gland seals.
-
(2) Lower Mounting Brackets: (Pre-attached to blades).
-
(1) Hardware Pack: Complete set of stainless steel mounting screws.
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for Product Selection:
"The 12" x 18" Edgemount is the 'problem solver' for large offshore center consoles with integrated swim platforms. Because the actuator connects to the trailing edge of the tab, you can get the massive lift of an 18-inch wide tab even if you only have a few inches of clearance between your platform and the waterline."
Upgrade your boat with the Lenco 12" x 18" Edgemount Trim Tab Kit (15017-101) to enjoy smoother rides, better handling, and dependable all-electric trim control—without sacrificing transom space.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15017-101
UPC : 874847004398
