Lenco 12" x 12" Edgemount Trim Tab Kit w/o Switch Kit 12V - 15016-101
Manufacturer Part #: 15016-101
Couldn't load pickup availability
Lenco 12" x 12" Edgemount Trim Tab Kit without Switch Kit 12V – 15016-101
The Lenco 15016-101 is a 12" x 12" Edgemount Trim Tab Kit designed for boats that require effective trim control while preserving valuable transom space. The edgemount configuration positions the trim tabs along the outer edges of the transom, making this kit ideal for vessels equipped with swim platforms, ladders, jack plates, or other transom-mounted accessories.
Built with Lenco’s proven all-electric trim tab technology, this 12-volt system delivers fast, quiet, and dependable performance without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent solution for replacement installations, upgrades, or custom helm setups where a compatible Lenco tactile switch, LED indicator switch, or integrated control system is already installed.
The 12" x 12" trim tabs provide balanced lift to reduce bow rise, correct side-to-side list, and minimize porpoising, resulting in smoother rides, improved handling, and better fuel efficiency. Constructed from marine-grade, corrosion-resistant materials, the Lenco 15016-101 is built to withstand harsh saltwater environments and deliver long-lasting performance season after season.
Key Benefits
-
Edgemount design preserves transom space
-
12" x 12" trim tabs for reliable lift and precise control
-
Reduces bow rise for faster planing and improved visibility
-
Corrects side-to-side list from uneven passenger or gear loads
-
Minimizes porpoising at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
12" x 12" Edgemount Trim Tabs for transom-edge installation
-
12V electric actuators for fast, quiet, and reliable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15016-101
-
Tab Dimensions: 12" x 12"
-
Mounting Style: Edgemount
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 12" x 12" Edgemount Trim Tab Kit without Switch Kit is ideal for:
-
Center console boats with limited transom space
-
Boats with swim platforms or jack plates
-
Inshore and offshore fishing vessels
-
Replacement or custom trim tab installations
Fast-Acting Electric Precision
Lenco’s legendary electric actuators provide a cleaner, faster, and more reliable experience than hydraulic alternatives.
-
Instant Response: The included 12V 101 Standard Actuators respond the millisecond you touch the helm control. This allows for precise, real-time adjustments to correct for wind heel, uneven passenger loads, or engine torque.
-
Maintenance-Free Design: No hydraulic pumps to mount, no hoses to bleed, and zero risk of oil leaks. The system is completely self-contained and eco-friendly.
-
Submersible Durability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals for a 100% waterproof, long-lasting solution in saltwater.
Heavy-Duty Marine Engineering
-
Stainless Steel Strength: The 12" x 12" blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity and lift.
-
Custom Control Integration: As a "Without Switch" kit, you have the flexibility to pair the hardware with any Lenco-compatible switch—including the LED Indicator, Standard Tactile, or a third-party digital switching system (sold separately).
-
Fuel Efficiency: By optimizing your boat's running angle, you reduce hull drag and engine strain, resulting in faster hole shots and better fuel economy.
Technical Specifications:
| Feature | Details |
| Model Number | 15016-101 |
| Blade Size | 12" Width x 12" Length |
| Mounting Style | Edgemount (Requires less vertical transom space) |
| Boat Length Range | 16' – 25' |
| Voltage | 12V |
| Material | 12-Gauge 304 Stainless Steel |
| Switch Included | No (Sold Separately) |

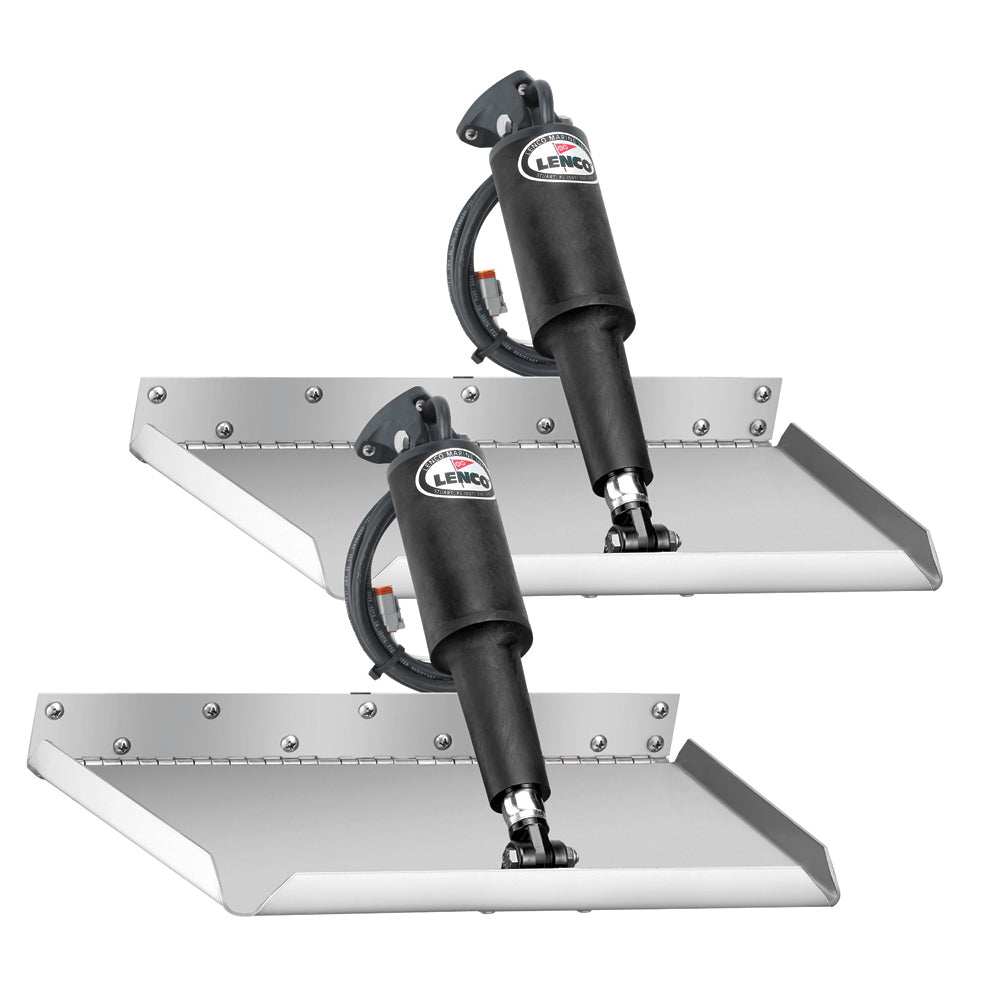

In the Box: 15016-101 Kit
-
(2) Edgemount Trim Tab Blades: 12" x 12" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(2) Upper Mounting Brackets: With specialized gland seals.
-
(2) Lower Mounting Brackets: (Pre-attached to blades).
-
(1) Hardware Pack: Complete set of stainless steel mounting screws.
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for Product Selection:
"The 12" x 12" Edgemount is the best-selling solution for boaters who want the performance of a standard tab but have a swim platform that hangs over the transom. It gives you the same lift as a standard 12"x12" kit while keeping the hardware tucked away and out of the way of ladders and platforms."
Upgrade your boat with the Lenco 12" x 12" Edgemount Trim Tab Kit (15016-101) for smooth rides, improved handling, and dependable all-electric trim control—without sacrificing transom space.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15016-101
UPC : 874847004374
