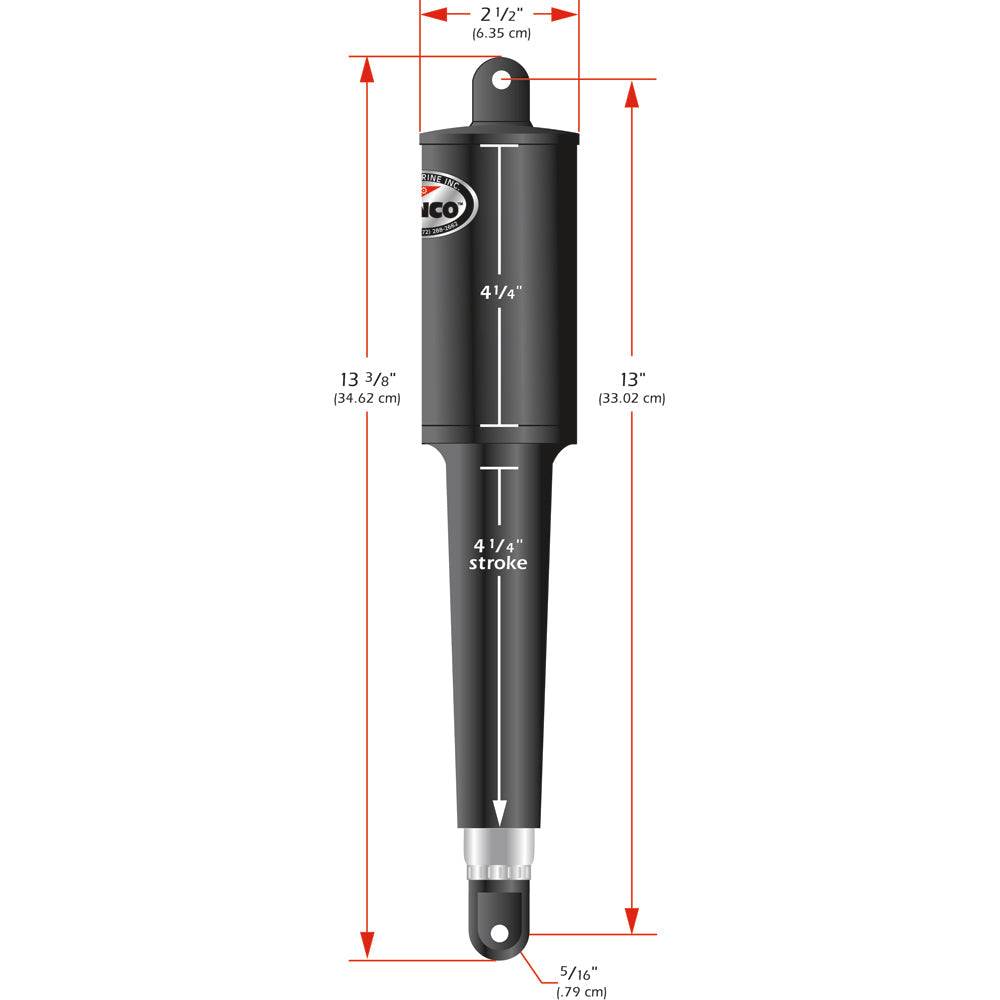

Lenco 102 Series Standard Actuator - 12V - 4-1/4" Stroke - 15059-001

Lenco 102 Series Standard Actuator – 12V | 4-1/4" Stroke | Model 15059-001

The Lenco 102 Series Standard Actuator is a reliable 12V marine actuator designed for standard trim tab systems. With a 4-1/4" stroke, it provides smooth, precise control to optimize your boat’s performance, improving handling, stability, and planing efficiency.

Constructed from marine-grade materials, this actuator offers excellent corrosion resistance and durability in both freshwater and saltwater environments. Its quiet, maintenance-free operation makes it an ideal choice for boaters seeking dependable trim tab performance without the complexity of hydraulic systems.

Key Features:

• Voltage: 12V DC

• Stroke Length: 4-1/4"

• Model Number: 15059-001

• Standard-duty actuator for typical marine trim tab applications

• Marine-grade corrosion-resistant construction

• Smooth and quiet electric operation

• Compatible with Lenco 102 series trim tab systems

Benefits:

• Enhances boat handling, stability, and planing

• Easy installation and reliable performance

• Low-maintenance design ensures long-lasting service

• Ideal for replacement or upgrades in standard trim tab setups

The Lenco 102 Series Standard Actuator 15059-001 delivers trusted performance and durability, providing boaters with a straightforward solution to improve trim tab functionality and overall vessel control.

Keywords: Lenco 102 Series actuator, 12V marine actuator, Lenco 15059-001, standard-duty trim tab actuator, marine trim tab actuator, 4-1/4" stroke actuator, electric trim tab actuator.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.

• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : 15059-001
UPC : 874847003247
