Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8" Hardware - 15063-001

Lenco 101XD Extreme Duty Actuator – 24V | 2 1/4" Stroke | 3/8" Hardware | Model 15063-001

The Lenco 15063-001 101XD Extreme Duty Actuator is a high-performance electric actuator engineered for demanding marine trim tab applications. Built to handle the rigors of heavy loads, frequent use, and harsh saltwater environments, this 24-volt extreme duty actuator delivers dependable power and long-lasting reliability for your boat’s trim tab system.

Designed for use with Lenco HD, XD, High Performance, and Super Strong trim tabs, the 101XD provides a 2¼-inch stroke with robust 3/8" mounting hardware and a 6-foot Deutsch-connected cable. Its compact yet powerful design enables smooth, responsive trim adjustments that help enhance vessel stability, reduce bow rise, and improve overall handling across a wide range of boating conditions.

🔧 Key Benefits

• Extreme duty construction for high-load performance and durability

• Instant response electric actuation—no hydraulics, pumps, or fluid

• Improves trim control, stability, and ride comfort

• Sealed marine-grade design resists corrosion in saltwater environments

• Ideal for heavy-use or performance-oriented boats

⚙️ Features

• 24V DC operation suitable for 24-volt marine systems

• 2¼" (2.25") stroke length provides effective trim tab travel

• 3/8" mounting hardware for secure actuator installation

• High-impact nylon housing with UV resistance and rugged durability

• 316 stainless steel tubing for corrosion resistance

• Anti-Extrusion Ring (AXR) seal system for enhanced seal stability

• Over-molded cable and waterproof Deutsch connectors to prevent water intrusion

• Improved O-rings, wiper seals, and brass thrust bearings for consistent long-term performance

• Tough, high-torque actuator motor capable of powerful actuation force

• 6-foot cable for flexible routing during installation



📏 Specifications

• Model: Lenco 101XD Extreme Duty Actuator

• Part Number: 15063-001

• Voltage: 24V DC

• Stroke Length: 2¼" (5.72 cm)

• Mounting Hardware: 3/8" clevis hardware included

• Cable Length: 6 ft with waterproof Deutsch connectors

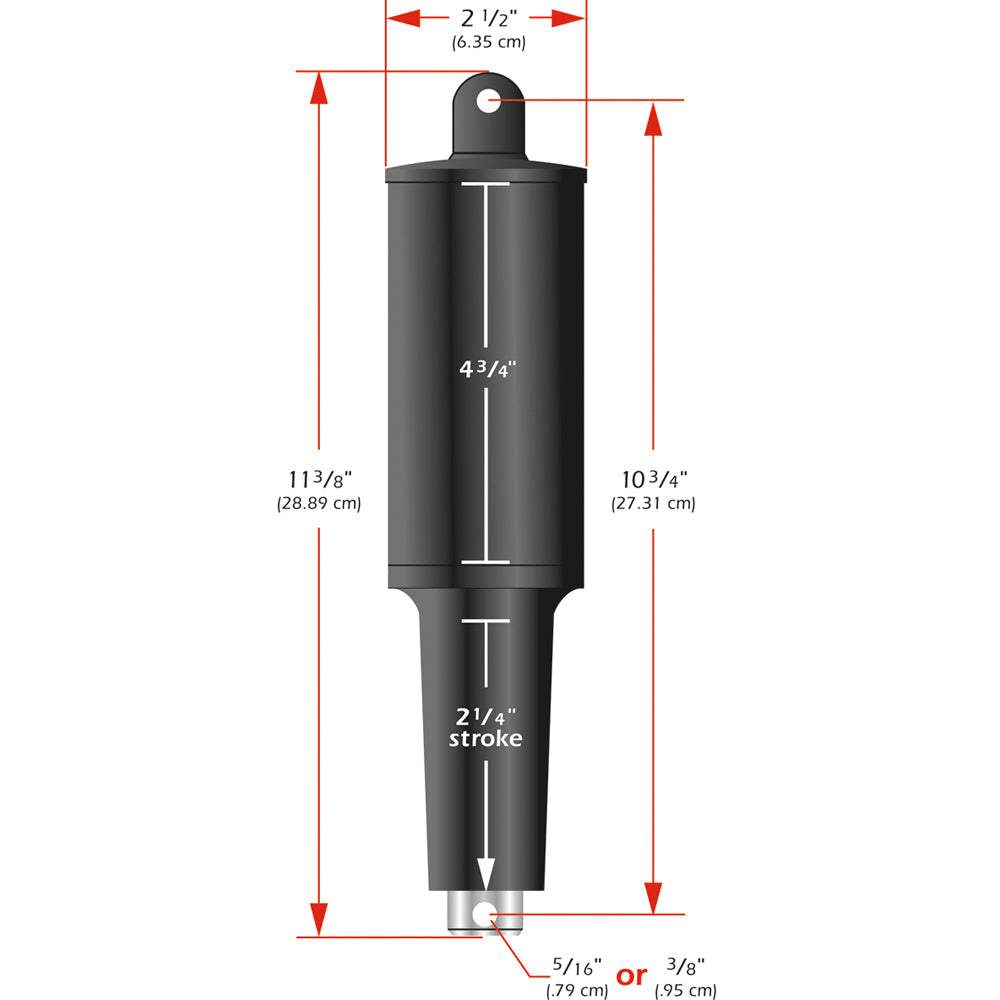

• Overall Length (tip-to-tip): ~11⅜"

• Actuator Housing: High-impact glass-fiber filled nylon

• Recommended Use: Heavy-duty and high-performance trim tab kits


🚤 Ideal Applications

The Lenco 101XD Extreme Duty Actuator 24V (15063-001) is ideal for:

• Electric trim tab replacement or upgrade on mid-to-large boats

• Heavy-use vessels requiring robust, high-torque actuation

• High-performance and offshore craft with demanding trim control needs

• Boats originally outfitted with HD, XD, or “Super Strong” tab systems

⚓ Why Choose Lenco

Lenco actuators are widely trusted for their instant electrical response, rugged marine construction, and long service life. Compared to hydraulic systems, Lenco’s electric ballscrew design delivers twice the effective power, eliminates fluid leaks, and simplifies installation and maintenance—making them a popular choice among performance boaters and serious cruisers alike.(

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : 15063-001
UPC : 874847003285
