Lee's Tackle 30° Stainless Steel Bar Pin Rod Holder - 2" O.D. - RH525SS/XS

Lee’s Tackle 30° Stainless Steel Bar Pin Rod Holder – 2" O.D. (RH525SS/XS)

Upgrade your fishing setup with the Lee’s Tackle RH525SS/XS 30° Bar Pin Rod Holder, a premium heavy-duty solution built for serious offshore anglers. Designed with a reinforced welded bar pin, this rod holder delivers superior rod security under extreme trolling loads—making it ideal for big game fishing and high-drag applications.

Constructed from marine-grade stainless steel, this rod holder is engineered to withstand harsh saltwater environments while maintaining its strength and polished appearance. The 30-degree fixed angle is optimized for trolling, helping you achieve better line spread and reducing tangles when running multiple rods.

With a 2-inch inside diameter and 9-inch tube length, the RH525SS/XS provides a deep, stable hold for most standard rods, while the flush mount design ensures a clean, professional installation on your boat’s gunwale. Trusted by boat manufacturers and anglers alike, Lee’s has been a leader in rod holder innovation for over 50 years.

Key Features & Enhancements

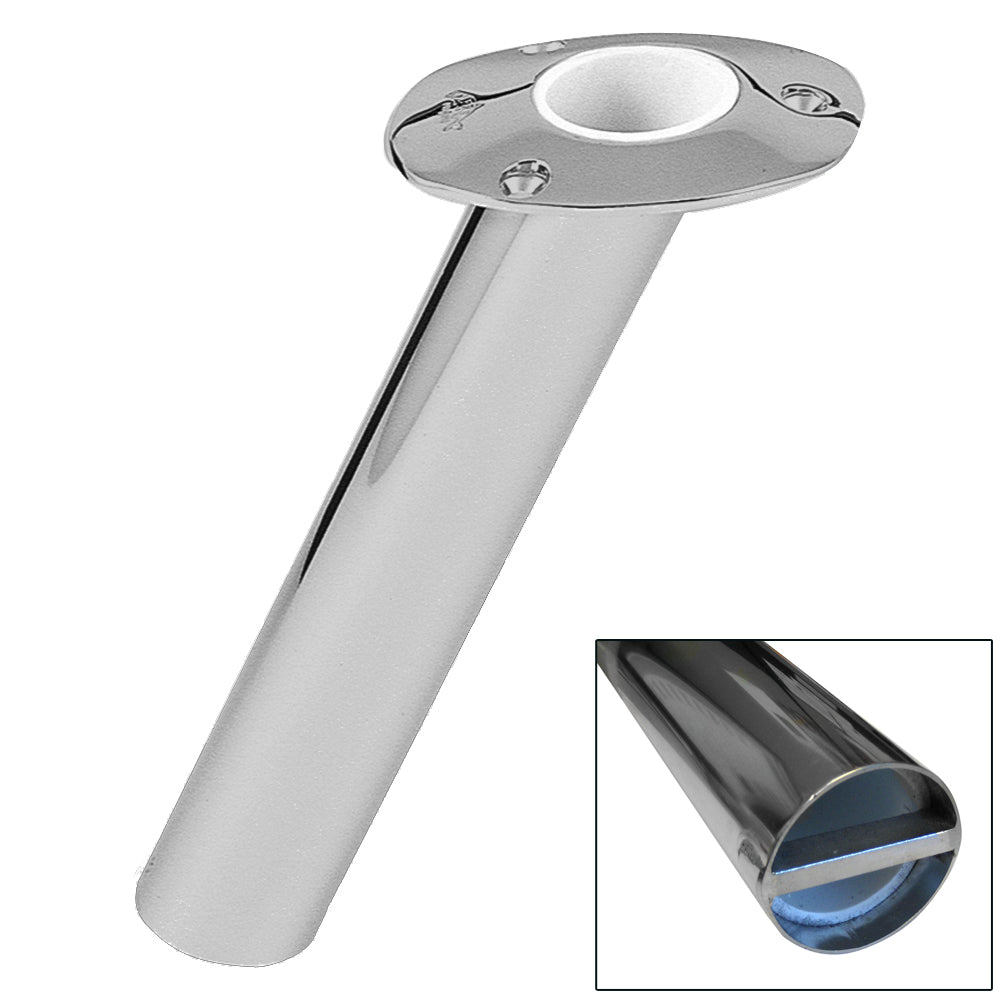

• Heavy-Duty Bar Pin: Replaces the standard 1/4" round pin with a 1/4" x 1/2" stainless steel bar. This bar is welded into the base, making it virtually impossible to shear or break under heavy drag.

• Superior Finish: Each holder is hand-polished and then electropolished to provide a mirror-like finish that offers maximum resistance to pitting and corrosion in saltwater.

• Crowned Top Flange: The 3-3/8" x 4-3/16" rectangular flange is crowned for added structural strength and a sleek, professional look on the gunwale.

• Rod Protection: Includes a full-length white vinyl insert with rounded edges to prevent line fraying and protect your rod butts from scratches.

Technical Specifications

• Angle: 30 Degrees (Fixed).

• Tube Diameter: 2" Outside Diameter (Medium Duty).

• Tube Length: 9" Overall.

• Material: Marine-grade 316L Stainless Steel.

• Mounting: Flush mount with 3 countersunk holes for 1/4" bolts.

Ideal For

• Offshore trolling and big game fishing

• High-drag reels and heavy tackle setups

• Center consoles and sportfishing boats

• Anglers needing extra rod security with gimbal-equipped rods

Why Choose the Bar Pin Version?

Unlike standard rod holders, the bar pin (XS) design adds an extra level of control and safety by locking the rod’s gimbal in place. This prevents spinning and slippage when battling powerful fish, making it the preferred choice for serious offshore anglers and tournament setups.

Installation & Component Matching

For the most secure installation, this unit should be through-bolted using 1/4" stainless steel bolts rather than screws. If you are mounting this into a fiberglass gunwale for heavy-tackle use, The Lee's RH5931 Stainless Backing Plate to help distribute the load and prevent hull cracking.

Manufacturer : Lee's Tackle
Manufacturer Part No : RH525SS/XS
UPC : 096811512511
