Lectrotab Smart Tabs SX Series 10.5 x 12 for 21-25 ft Boats Up to 350 HP - SX10512-90
Manufacturer Part #: SX10512-90
Couldn't load pickup availability
Lectrotab Smart Tabs SX Series 10.5 x 12 Trim Tabs for 21–25 ft Boats – SX10512-90
The Lectrotab Smart Tabs SX Series 10.5 x 12 (SX10512-90) are high-performance automatic trim tabs engineered to improve ride quality, handling, and efficiency on 21–25 foot boats powered by engines up to 350 HP. Designed to react instantly to changing water conditions, these self-adjusting trim tabs enhance performance without the need for electrical connections, switches, or hydraulics.
Built with durable composite trim plates and corrosion-resistant stainless steel hardware, Smart Tabs SX deliver reliable performance in both freshwater and saltwater environments. The system uses gas-actuated struts that automatically adjust tab position to reduce bow rise, improve hole shot, and maintain a level ride while underway. This results in faster planing, improved visibility, better fuel efficiency, and increased overall stability.
The 10.5 x 12 tab size provides excellent lift for mid-size boats, making them ideal for fishing boats, center consoles, dual consoles, and runabouts. Installation is straightforward with no wiring required, and once installed, the tabs operate automatically—responding instantly to load changes, speed, and sea conditions.
Trusted by boaters worldwide, Lectrotab Smart Tabs SX are an effective and affordable solution for improving performance, safety, and comfort on the water.
Key Performance Benefits
-
Automatic Stabilization: Self-adjusts to your boat's load and sea conditions—no helm controls or pilot intervention required.
-
Faster Planing: Reduces minimum planing speed by up to 33%, allowing you to get on plane faster with significantly less bow rise.
-
Superior Handling: Integrated Tracking Ribs improve high-speed handling and eliminate common issues like porpoising and chine walking.
-
Corrosion-Free Construction: Molded from high-strength composite materials, these tabs are 100% rust-proof and ideal for both freshwater and saltwater environments.
-
Fuel Efficiency: By optimizing the hull's running angle, this system can improve fuel economy by 11% or more.
Product Specifications
| Feature | Details |
| Model Number | SX10512-90 |
| Plate Dimensions | 10.5" Width x 12" Depth |
| Boat Length Range | 21' – 25' |
| Engine Compatibility | Up to 350 HP (Outboard or I/O) |
| Actuator Type | Nitrogen Gas (90 lb load rating) |
| Material | Molded Composite (Black) |
| Installation Time | Under 1 hour (No through-hull drilling) |
Why Choose the SX10512-90?
This specific model features a 32% larger planing surface than standard SX models, making it the perfect choice for heavy RIBs, day cruisers, deck boats, and cuddy cabins. The nitrogen actuators provide maximum lift during acceleration and automatically retract as speed increases to eliminate drag.
What's In The Box?
-

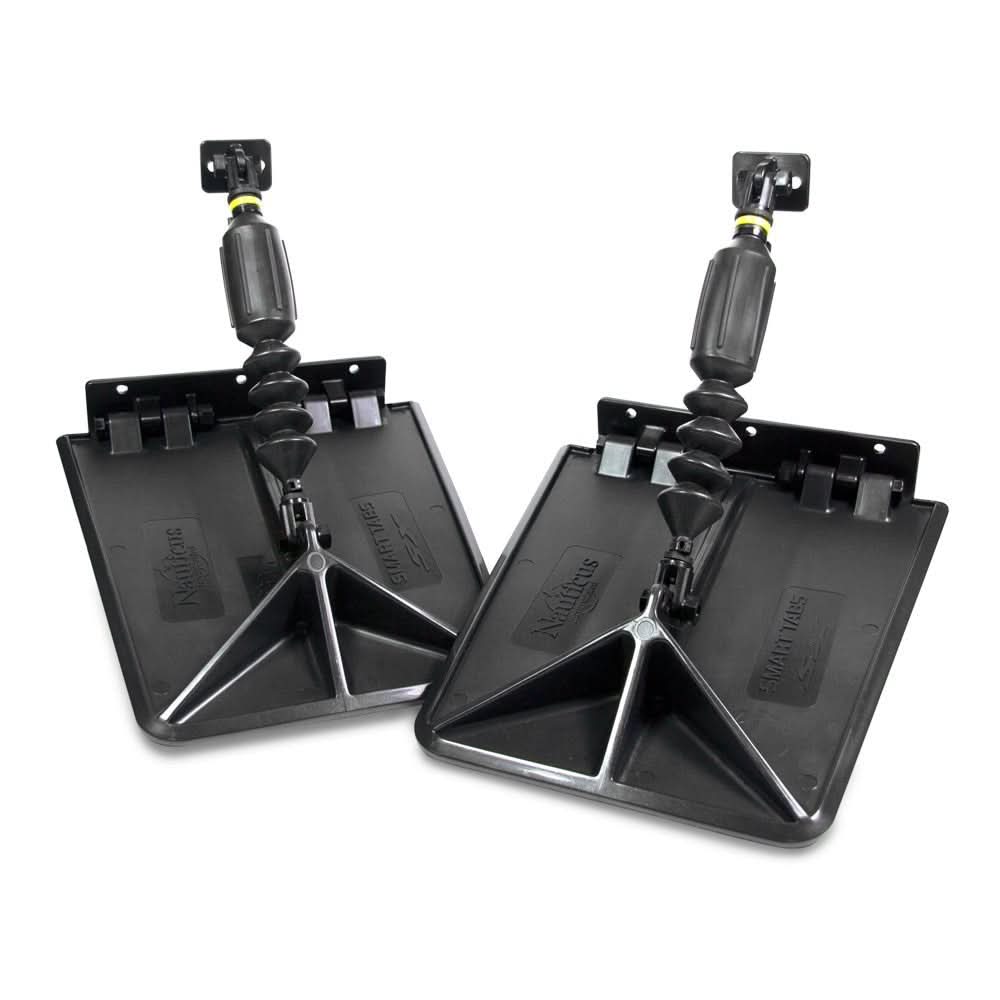

2 x Trim Plates: 10.5" x 12" high-strength molded composite plates with integrated tracking ribs.
-
2 x Nitrogen Gas Actuators: 90 lb. lift-rated actuators (identified by a white cable clamp/boot).
-
2 x Composite Hinges: Heavy-duty hinge design with four mounting bosses for maximum durability.
-
1 x Hinge Hardware Kit (HK10512): Includes all necessary mounting screws and self-locking clevis pins.
-
1 x Installation & Owner’s Manual: Step-by-step guide for assembly and mounting.
-
Installation Templates: Paper templates to ensure precise positioning on your boat's transom.
Quick Installation Facts
-
Required Tools: You only need an electric drill (with a 3/16" bit) and a Phillips screwdriver.
-
No Through-Hull Drilling: The system is completely external; you won't need to run any hoses or wires through the boat's hull.
-
Marine Sealant: While some kits include a small tube of sealant, it is always recommended to have a fresh tube of 3M 5200 or 4200 Marine Sealant on hand to seal the mounting screw holes.
The Lectrotab Smart Tabs SX Series 10.5 x 12 – SX10512-90 are the ideal upgrade for boat owners looking to improve handling, performance, and efficiency without the complexity of traditional trim tab systems.
BRAND: Lectrotab
MPN: SX10512-90Lectrotab Smart Tabs SX Series 10.5 x 12 for 21-25 ft Boats Up to 350 HP - SX10512-90 is backordered and will ship as soon as it is back in stock.
