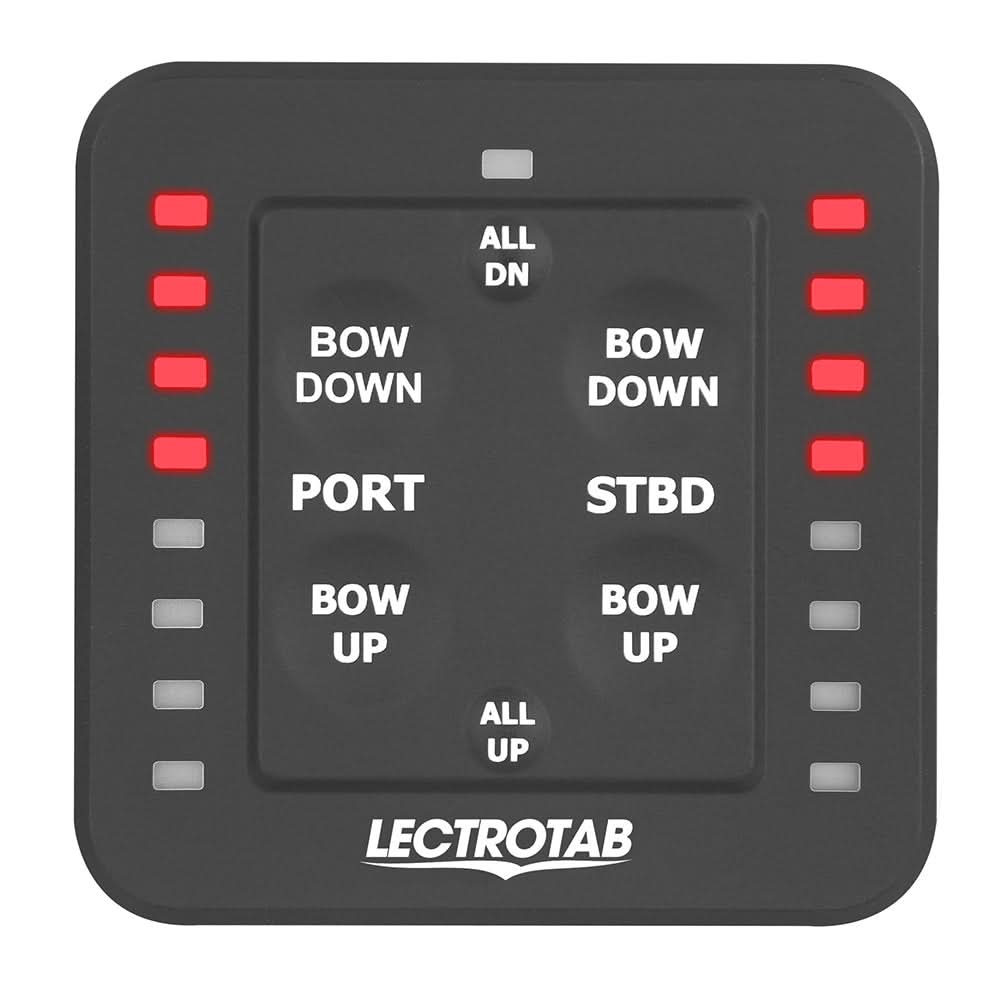

Lectrotab One-Touch LED Control - 12/24V w/Auto Retract & LED IndicatorsSLC-11 - SLC-11

Lectrotab One-Touch LED Control - 12/24V w/Auto Retract & LED IndicatorsSLC-11

One-Touch LED Control - 12/24V with Auto Retract & LED Indicators

Lectrotab's control incorporates features requested by boat owners to provide a user-friendly control for a more enjoyable boating experience.

Features:

• One-Touch button to raise/lower tabs
• Automatic tab position return
• Completely sealed and waterproof
• Microprocessor-based trim tab control with LED tab position indicators
• Single-button press to move both tabs up or down simultaneously
• Direct replacement for Oval LED (SETR-61) controls
• Automatic return to last tab position if the ignition key is turned off and back on again
• Completely sealed, completely waterproof, and will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from rocker switch style control
• No external power module required for single or dual actuator per tab systems
• LED tab position indicators dim automatically in darkness and brighten in the sunlight
• Adjustable programming features
• Operates on 12 or 24VDC systems

Enter, Adjust & Exit Program Mode:

• Before entering program mode, 12vdc or 24vdc must be applied to Oval main power
• Power to AUX terminal must be OFF (Aux is typically connected to ignition key switch or aux switch)
• Press and hold button noted in Programming chart under column “Enter” for more than 2 seconds while switching the Aux terminal switch to ON at the same time
• Release the “Enter” button and press the “STBD BOW UP or DOWN” button to change the value
• Press and hold “PORT BOW UP” for more than 2 seconds to exit program mode

Product : LECTROTAB ONE TOUCH LED CONTROL 12/24V WITH AUTO
Manufacturer : Lectrotab
Manufacturer Part No : SLC-11
Product : LECTROTAB ONE TOUCH LED CONTROL 12/24V WITH AUTO
