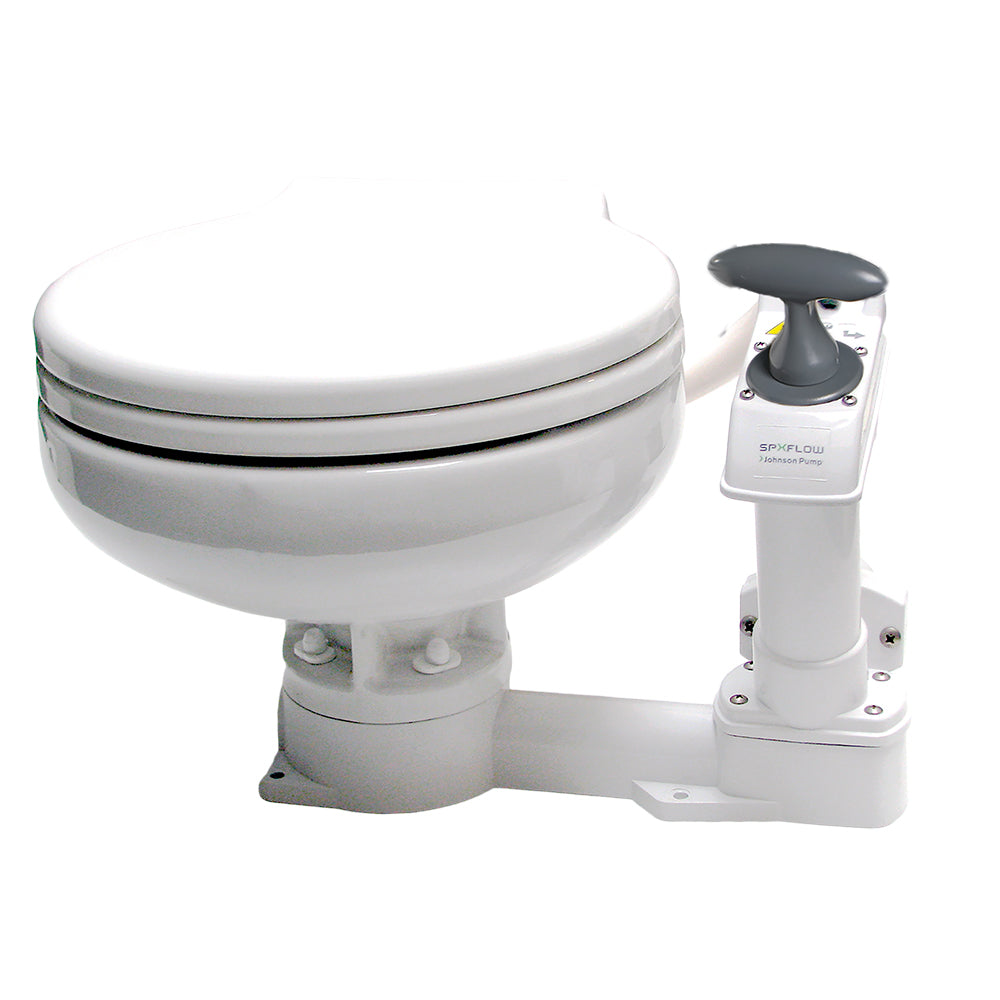

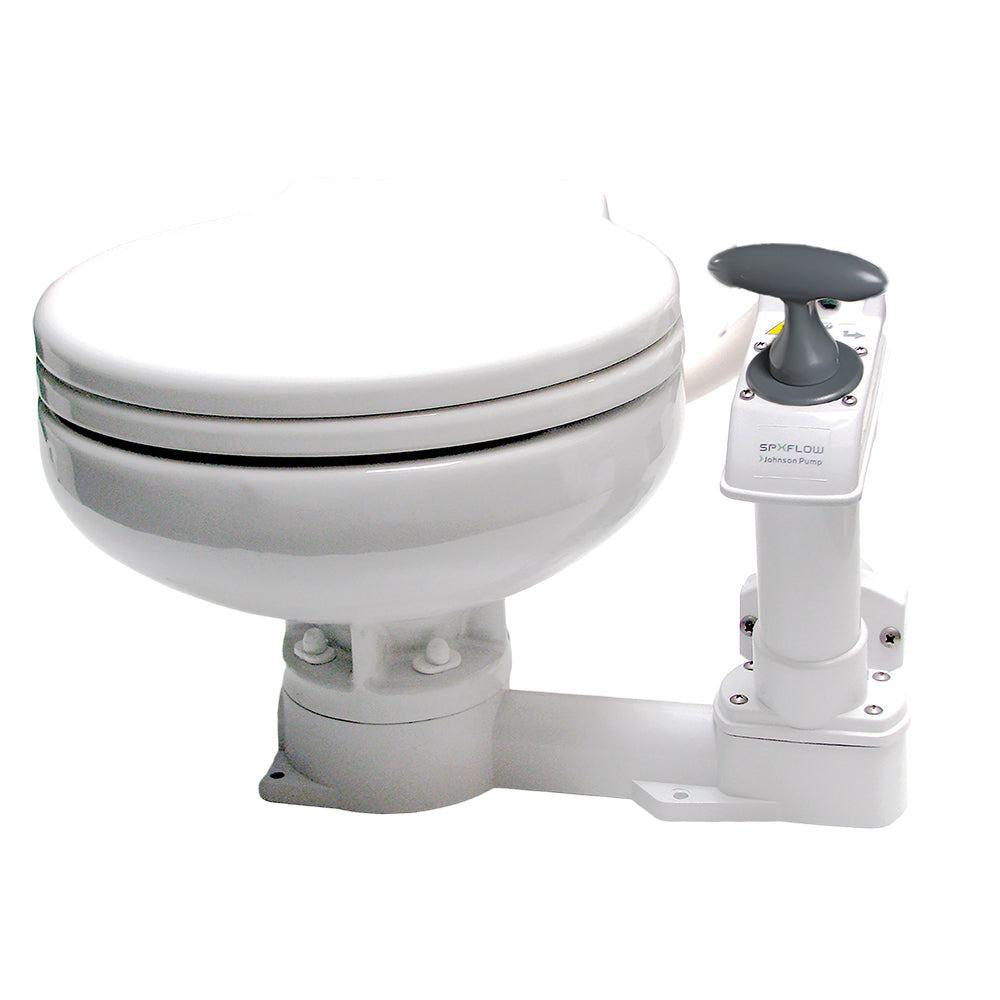

Johnson Pump AquaT Manual Marine Toilet | Super Compact (80-47625-01)

The Johnson Pump AquaT manual marine toilet (80-47625-01) is a professional-grade manual marine toilet designed specifically for boats where space is at a premium. As part of the AquaT Super Compact range, it features a smaller, lower-profile bowl and a shortened base, making it the ideal solution for small heads, sailboats, and compact powerboats without sacrificing the performance of a full-sized head.

Robust and User-Friendly Design

The AquaT manual toilet is engineered for longevity in the harsh marine environment. It features a powerful self-priming double-action piston pump that provides a thorough flush with every stroke. The reversible pump mounting allows for installation on either the left or right side of the bowl, providing maximum flexibility for tight installations.

Key Features:

• Super Compact Footprint: Designed with a smaller vitreous china bowl and a space-saving base to fit into the tightest compartments.

• Ergonomic Piston Pump: A high-efficiency manual pump that can be mounted for left or right-hand operation during installation.

• Hygienic Vitreous China: The bowl is made of high-quality white ceramic that is easy to clean and resistant to odors and staining.

• Soft-Closing Seat: Includes a durable, impact-resistant plastic seat and cover with a soft-close hinge to prevent slamming in heavy seas.

• Backflow Prevention: Features an integrated check valve and "Dry Flush" option to prevent waste return and ensure the bowl remains empty when not in use.

• Universal Bolt Pattern: Designed with a base that matches most common manual toilets, making it an easy "drop-in" replacement for older units.

• Corrosion-Resistant Materials: Built with stainless steel fasteners and marine-grade plastics to withstand saltwater and cleaning chemicals.

Technical Specifications:

• Model Number: 80-47625-01

• Type: Manual Piston Pump

• Bowl Style: Super Compact

• Inlet Port: 3/4" (19mm)

• Discharge Port: 1-1/2" (38mm)

• Dimensions: 13.6" H x 17.7" W x 16.7" D

• Weight: 21 lbs (9.5 kg)

• Approvals: CE certified / ISO 8846 (Ignition Protection)

Why Choose the AquaT Super Compact?

The 80-47625-01 is the industry standard for small-vessel refits. Its main advantage is its height; at only 13.6 inches, it can be installed on raised platforms or in heads with limited overhead clearance. Despite its "Super Compact" label, the bowl depth is designed to be comfortable and splash-resistant during use.

Installation Pro-Tip:

When installing the AquaT below the waterline, it is critical to use Vented Loops on both the intake and discharge hoses to prevent siphoning. Ensure the top of the vented loop is at least 6–10 inches above the highest waterline of the boat at all angles of heel.
