T-H Marine ATLAS 8" Set Back Hydraulic Jack Plate - Heavy Duty Black - AHJ-8VHD-B-DP

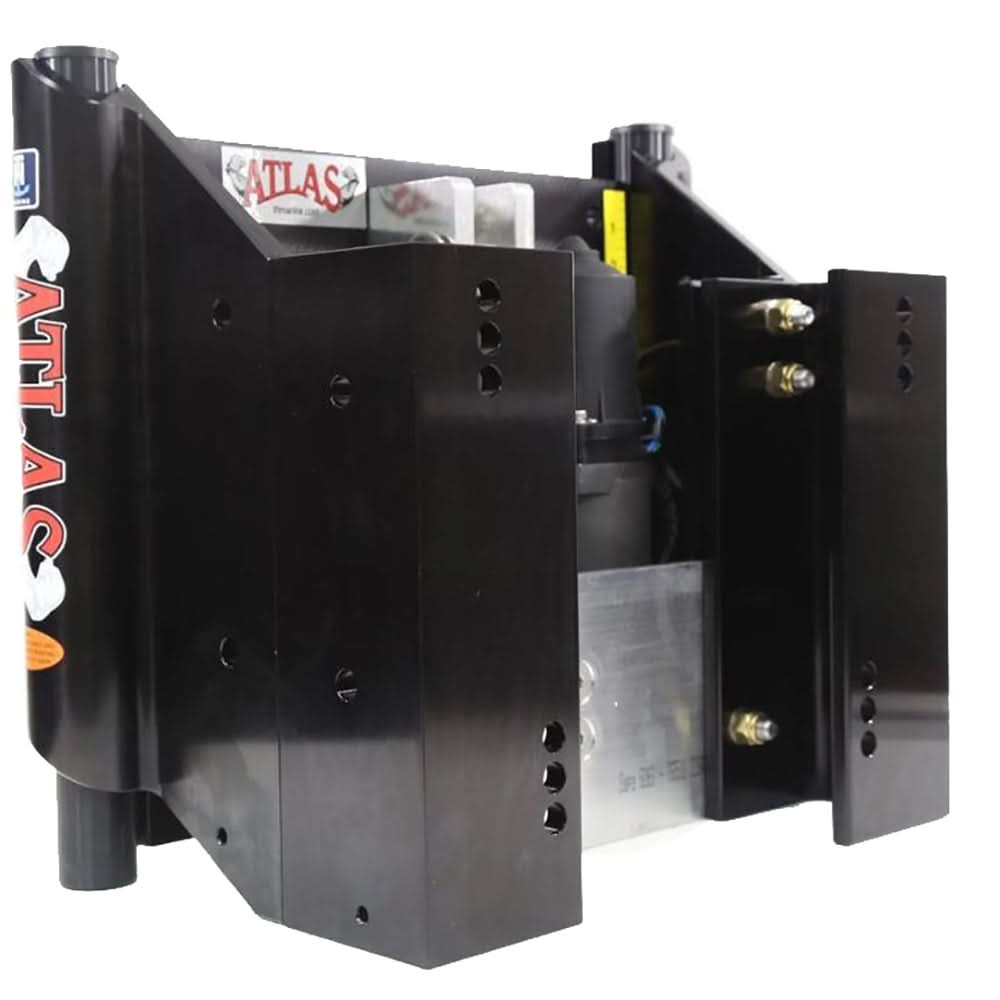

T-H Marine ATLAS 8" Set Back Hydraulic Jack Plate – Heavy Duty Black (AHJ-8VHD-B-DP)

The T-H Marine ATLAS™ 8" Set Back Hydraulic Jack Plate – Heavy Duty Black (AHJ-8VHD-B-DP) is engineered for serious performance boating and heavy outboard engines. Designed with enhanced strength and durability, this heavy-duty hydraulic jack plate allows boaters to adjust engine height on the fly for improved speed, handling, and shallow-water performance.

Featuring an 8-inch setback, the ATLAS jack plate moves the engine further from the transom to improve water flow to the propeller and optimize overall boat performance. The self-contained hydraulic actuator system eliminates the need for external pumps or reservoirs, delivering smooth and reliable height adjustments at the touch of a switch.

Built to handle high-horsepower outboards up to 450 HP and 810 lbs, the heavy-duty ATLAS model is ideal for today’s larger engines. Its innovative rod-and-slot lifting design provides smooth, maintenance-free operation while delivering up to 5–7 inches of vertical adjustment in less than 8 seconds.

Finished in a sleek black anodized coating, this jack plate offers superior corrosion resistance and a clean, professional appearance for high-performance bass boats, fishing boats, and offshore vessels.

Maximize your boat’s performance with the T-H Marine ATLAS 8" Heavy Duty Hydraulic Jack Plate, providing powerful lift capability, precise engine height control, and the durability needed for high-horsepower outboards.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : T-H Marine Supplies
Manufacturer Part No : AHJ-8VHD-B-DP
