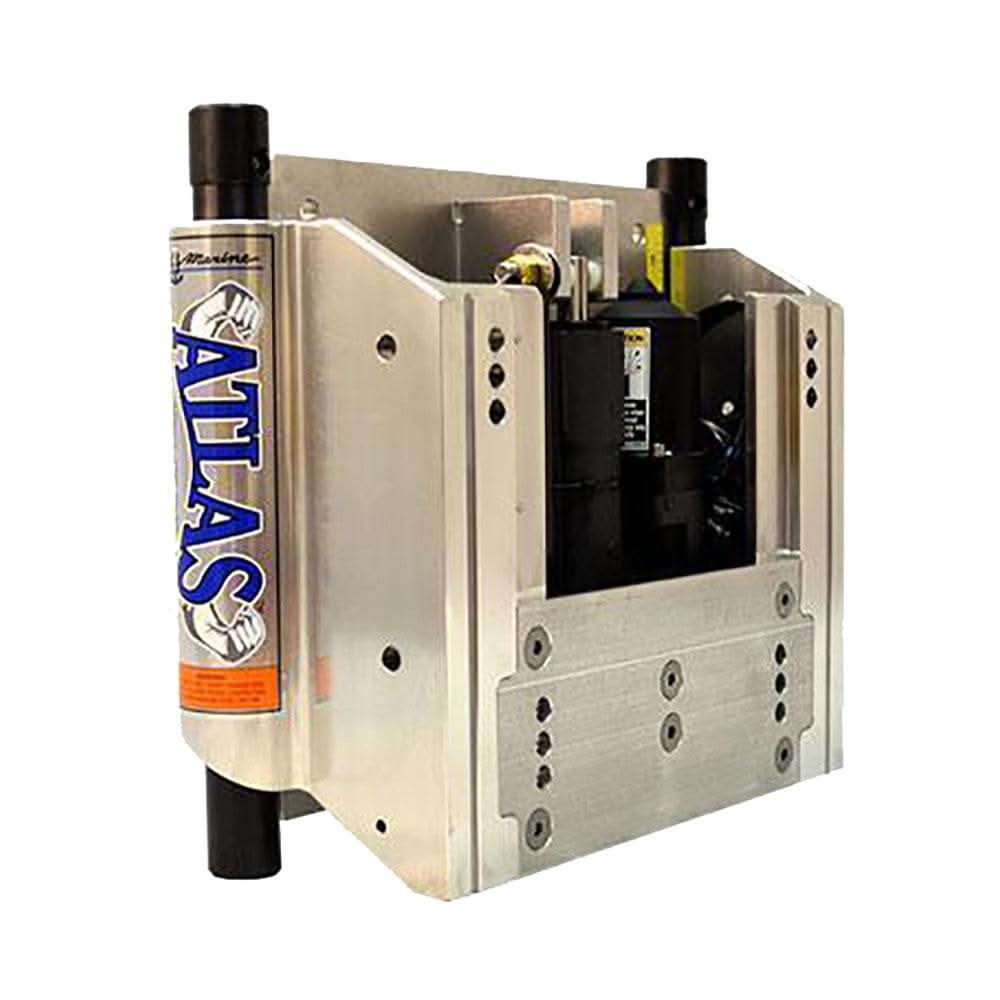

T-H Marine ATLAS 4" Set Back Hydraulic Jack Plate STD Polished - AHJC-4V-DP
Manufacturer Part #: AHJC-4V-DP
Couldn't load pickup availability
T-H Marine ATLAS 4" Set Back Hydraulic Jack Plate – STD Duty Polished – AHJC-4V-DP
The T-H Marine ATLAS 4" Set Back Hydraulic Jack Plate (AHJC-4V-DP) delivers precise engine height control and improved on-water performance in a compact, lightweight design. Engineered for outboard engines up to 300 HP, this standard-duty hydraulic jack plate allows quick, push-button vertical adjustment to optimize speed, handling, and fuel efficiency in changing water conditions.
Constructed from aircraft-grade aluminum and finished in a high-polish aluminum coating, the ATLAS 4" jack plate offers excellent corrosion resistance with a clean, professional appearance. The 4-inch setback provides improved leverage and hull balance without excessive transom extension, making it ideal for bass boats, bay boats, and performance-oriented outboard applications.
Designed and manufactured in the USA, ATLAS hydraulic jack plates are trusted by professional anglers and boaters for their smooth operation, durability, and reliable hydraulic lifting system.
Key Performance Features
-
Self-Contained Hydraulics: This unit features an internal actuator, eliminating the need for external hydraulic pumps or reservoirs. This makes for a much cleaner installation and saves valuable space in the bilge.
-
Speed and Power: The heavy-duty actuator can lift the heaviest V6 outboards—including modern high-torque four-strokes—from bottom to top in under 8 seconds.
-
Maintenance-Free Design: Built with high-tech self-lubricating polymer rods and bushings that are harder than bronze. These rods won't corrode and don't require regular greasing, ensuring smooth operation over time.
-
Polished Aesthetic: The "DP" (Dolphin Polished) finish provides a high-shine, mirror-like aluminum look that is both attractive and resistant to the marine environment.
Technical Specifications
-
Setback: 4 Inches
-
Engine Rating: Up to 300 HP
-
Vertical Lift: 5.75 Inches
-
Finish: Polished Aluminum
-
Hydraulics: Internal Actuator (Self-contained)
In the Box
The AHJC-4V-DP arrives as a complete kit ready for installation:
-
Jack Plate Assembly: Pre-assembled with the internal hydraulic actuator.
-
Wiring Harness: Marine-grade harness with integrated relays and connectors.
-
Control Switch: A standard dash-mounted rocker switch.
-
Mounting Hardware: High-strength bolts for attaching the plate to your transom.
Technical Specifications
-
Model: ATLAS Hydraulic Jack Plate
-
Part Number: AHJC-4V-DP
-
Setback: 4 inches
-
Horsepower Rating: Up to 300 HP
-
Lift Type: Hydraulic
-
Material: Aircraft-grade aluminum
-
Finish: Polished
-
Duty Rating: Standard Duty
-
Application: Outboard engines (freshwater or saltwater)
Benefits
-
Improves acceleration and overall handling
-
Optimizes propeller height for top-end performance
-
Enhances shallow-water capability
-
Allows fast adjustments for load or water depth changes
Applications
-
Bass boats
-
Bay boats
-
Flats boats
-
Performance outboard boats
-
Freshwater and saltwater use
Why Choose the ATLAS 4" Hydraulic Jack Plate
The T-H Marine ATLAS AHJC-4V-DP is ideal for boaters seeking improved performance without excessive setback. Its standard-duty strength, compact profile, and polished finish make it a versatile upgrade for a wide range of outboard boats.
Summary for the User
The ATLAS 4" Jack Plate is the gold standard for performance boaters who need a shorter setback. It allows you to lift your engine vertically to reach the "clean" water behind the hull, which reduces drag and helps you get on plane faster in shallow conditions.
Pro Tip: To get the most out of your plate, you can add a Digital Gauge Kit. This allows you to see your exact plate height from the helm, helping you find the perfect setting for different speeds or water depths.
Manufacturer : T-H Marine Supplies
Manufacturer Part No : AHJC-4V-DP
UPC : 733572232813
T-H Marine ATLAS 4" Set Back Hydraulic Jack Plate STD Polished - AHJC-4V-DP is backordered and will ship as soon as it is back in stock.
