Jabsco Engine Cooling Pump - 43210-0001
Manufacturer Part #: 43210-0001
Couldn't load pickup availability

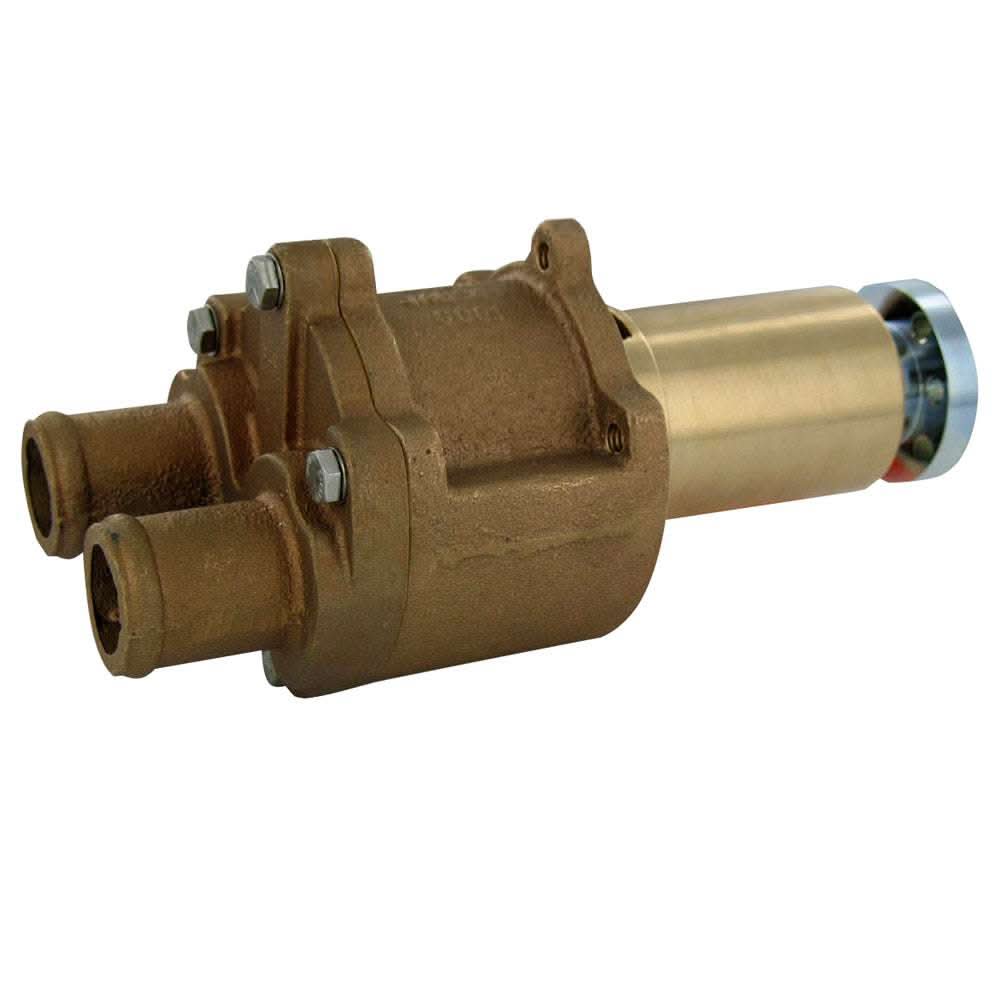

Jabsco Engine Cooling Pump – 43210-0001
The Jabsco 43210-0001 Engine Cooling Pump is a heavy-duty, flexible impeller raw water pump designed to deliver reliable cooling water flow for marine engines. Built with Jabsco’s proven pump engineering, this pump ensures consistent seawater intake to help prevent engine overheating in both recreational and commercial marine applications.
Constructed with a corrosion-resistant bronze housing, the pump is engineered to withstand harsh saltwater environments while providing long service life. The flexible impeller design allows the pump to self-prime and handle varying flow conditions, making it ideal for engine cooling circuits that require dependable performance at different engine speeds.
Commonly used as a direct replacement or OEM-equivalent engine cooling pump, the Jabsco 43210-0001 is trusted by boat builders and marine service professionals worldwide.
Performance & Design
-
Self-Priming Capability: This pump is remarkably efficient at self-priming, capable of drawing water from a dry start up to 10 feet (3 meters) vertical lift.
-
Flexible Impeller Technology: The heart of the pump is a flexible Neoprene impeller. This design allows it to handle slightly sandy or silty water without immediate damage, which is common when operating in shallow or murky coastal waters.
-
Marine-Grade Materials: To combat the corrosive effects of saltwater, the pump features a bronze body and a 316 stainless steel shaft.
-
High-Quality Sealing: It utilizes a mechanical carbon-ceramic face seal to ensure a watertight fit and prevent leaks at the drive shaft.
Technical Specifications
-
Flow Rate: Approximately 21.5 GPM (81.5 LPM) at 1500 RPM.
-
Port Size: 1" NPT (Internal Thread).
-
Mounting: Flange Mount (typically used on various marine engines).
-
Drive: Features a spline drive for secure connection to the engine's power takeoff.
-
Impeller Part Number: Replacement uses the Jabsco 17937-0001 (Neoprene).
Summary for the User
The 43210-0001 is a reliable "fit-and-forget" component for engine cooling systems. Its bronze construction ensures it won't rust out in a salt-air environment, and the mechanical seal provides a much longer service life than cheaper lip-seal alternatives.
Maintenance Tip: Always keep a spare Jabsco 17937-0001 Impeller and a fresh gasket on board. If your engine's temperature starts to creep up, a worn or "set" impeller is often the first thing to check.
Part Number: 43210-0001
The Jabsco Engine Cooling Pump 43210-0001 delivers dependable raw water flow, corrosion resistance, and proven durability—making it an essential component for protecting marine engines from overheating.
WARNING: This product can expose you to chemicals including STYRENE which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 43210-0001
UPC : 671880034708
Jabsco Engine Cooling Pump - 43210-0001 is backordered and will ship as soon as it is back in stock.
