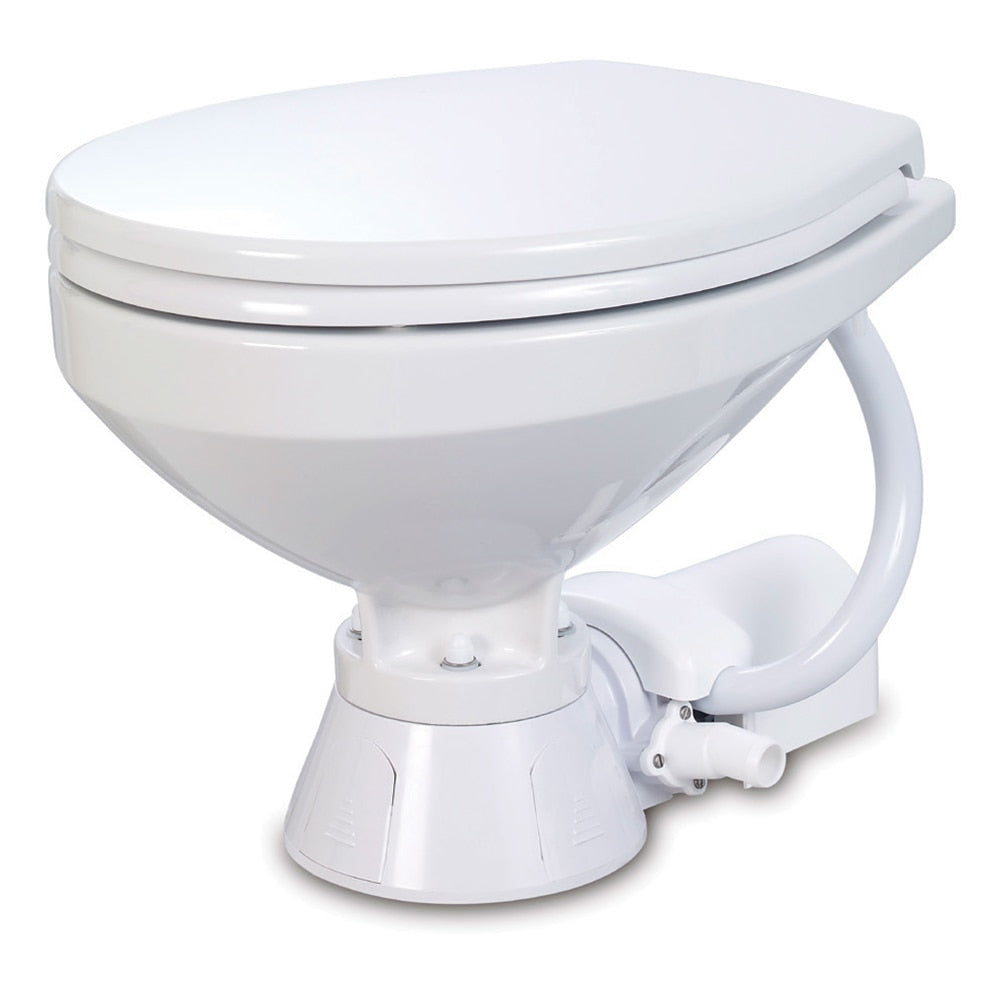

Jabsco Electric Marine Toilet - Compact Bowl - 24V - 37010-3094
Manufacturer Part #: 37010-3094
Couldn't load pickup availability
Jabsco Electric Marine Toilet – Compact Bowl – 24V – 37010-3094
The Jabsco Electric Marine Toilet (37010-3094) is a compact, high-performance sanitation solution designed for boats operating on 24-volt DC electrical systems. Featuring a space-saving compact bowl, this electric marine toilet is ideal for smaller heads, tight installations, and vessels where maximizing available space is critical without sacrificing reliability or flushing power.
Engineered for durability and ease of use, this model delivers dependable, push-button flushing with Jabsco’s proven macerator technology.
🚽 Compact Bowl – Space-Saving Design
The compact bowl configuration is perfect for smaller boats and limited head compartments. It offers practical comfort while reducing overall footprint, making it an excellent choice for sailboats, sportfishing boats, and mid-size cruisers.
24V Electric Flush System
Designed for 24V DC systems, this toilet integrates seamlessly into commercial and larger recreational vessels with higher-voltage electrical setups. The electric motor powers a robust macerator and pump, providing consistent, efficient flushing at the touch of a button.
Efficient Maceration & Waste Management
The integrated macerating system breaks down waste and toilet paper for smooth evacuation through sanitation hoses. Controlled water flow helps reduce odors, minimize clogs, and maintain cleaner plumbing and holding tanks.
Marine-Grade Construction
Built specifically for marine environments, the 37010-3094 features corrosion-resistant materials, sealed electrical components, and a durable ceramic bowl. It is engineered to withstand vibration, humidity, and saltwater exposure for long-term reliability onboard.
Simple Installation & Easy Serviceability
This model is compatible with standard marine plumbing connections and is suitable for both new installations and replacements. Jabsco’s wide availability of replacement parts ensures long-term serviceability and easy maintenance.
In the Box: 37010-3094
-
(1) Compact White Porcelain Bowl: Vitreous china designed for space-saving installation.
-
(1) 24V Motor & Macerator Assembly: Pre-installed on the base.
-
(1) Standard Compact Seat & Lid: Heavy-duty plastic with corrosion-resistant hinges.
-
(1) Push-Button Switch: For bulkhead mounting.
-
(1) 1" to 1.5" Discharge Adapter: To match common sanitation hose sizes.
-
(1) Installation Manual: Includes a full-scale mounting template.
Key Features & Benefits
1. Space-Saving "Compact" Footprint
The Compact bowl features a shorter front-to-back depth and a lower profile than the "Regular" models. This makes it the ideal choice for smaller sailboats, powerboats, and mid-sized cruisers where every inch of floor space in the head counts.
2. High-Efficiency 24V Motor
Running on a 24V system allows this toilet to draw only 8.0 Amps—exactly half the current of the 12V version. This reduces the risk of voltage drop, allows for lighter-gauge wiring, and is significantly more efficient for vessels with 24V battery banks.
3. Integrated Macerator
The stainless steel centrifugal chopper grinds waste and toilet tissue into a fine slurry. This allows the unit to pump out through a 1" (25mm) discharge line, preventing the clogs often associated with manual pump toilets.
4. Simple Push-Button Control
Eliminates the complexity of manual pumping. Guests and children can operate the head with a single touch, making the boating experience more user-friendly and "home-like."
Technical Specifications
| Feature | Details |
| Model Number | 37010-3094 |
| Voltage | 24V DC |
| Bowl Style | Compact |
| Amp Draw | 8.0 Amps |
| Fuse Size | 15.0 Amp |
| Inlet Port | 3/4" (19mm) Hose Barb |
| Discharge Port | 1" (25mm) or 1.5" (38mm) |
| Compliance | Ignition Protected (ISO 8846) |
Pro-Tip for Installation:
"Because the Compact bowl is shorter, check your clearances for the discharge hose behind the toilet before bolting it down. These units often sit very close to the bulkhead. Using a 90-degree discharge elbow (often included or available as an accessory) can help you route the 1" sanitation hose downward through the floor or sideways through a locker without kinking the line."
Ideal Applications
-
Sailboats and cruisers with limited head space
-
Commercial and recreational vessels with 24V electrical systems
-
Replacement for compact manual or electric marine toilets
-
Boats requiring efficient, space-saving sanitation solutions
Why Choose Jabsco Electric Marine Toilets
Jabsco is a global leader in marine sanitation and pumping systems, trusted worldwide for quality, reliability, and ease of service. The 37010-3094 Compact Electric Marine Toilet offers dependable performance, efficient flushing, and smart space utilization for demanding marine environments.
Upgrade your onboard sanitation with the Jabsco Electric Marine Toilet – Compact Bowl – 24V – 37010-3094, a durable, efficient, and space-conscious solution designed for modern vessels.
