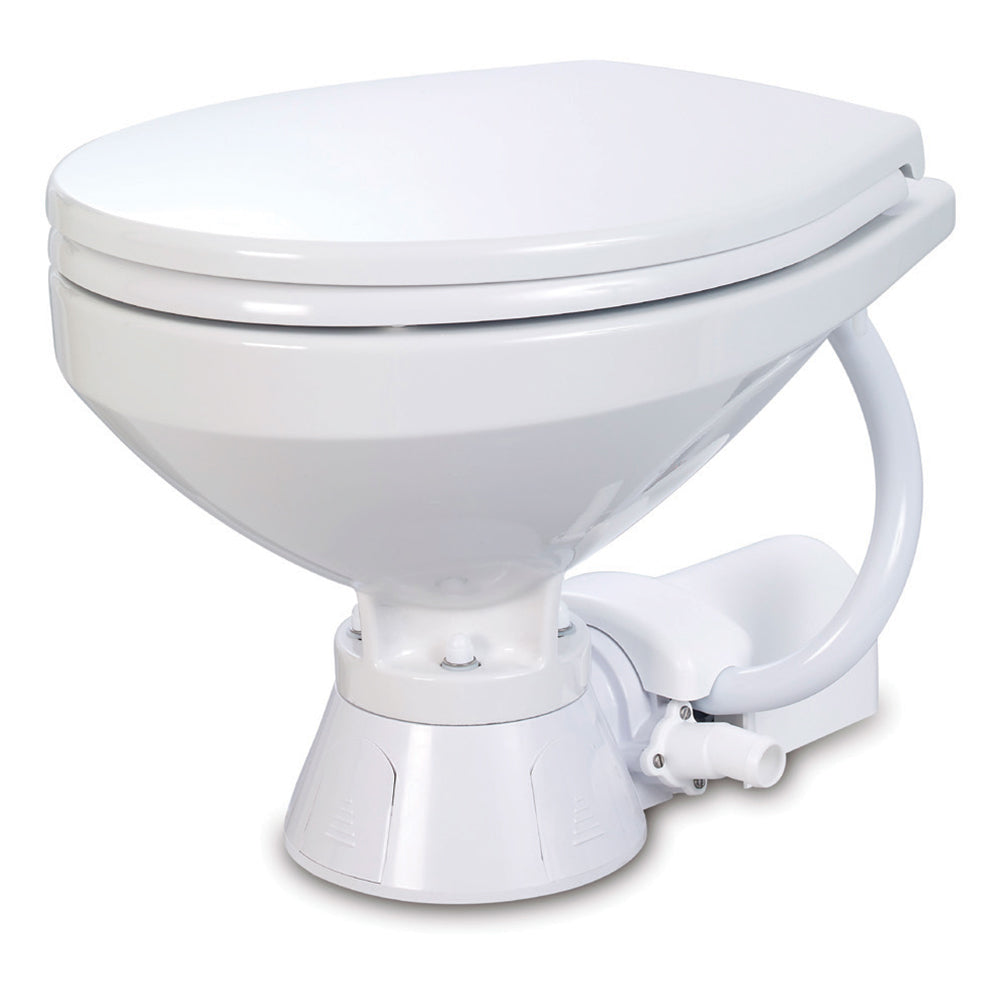

Jabsco Electric Marine Toilet - Compact Bowl - 12V - 37010-3092
Manufacturer Part #: 37010-3092
Couldn't load pickup availability
Jabsco Electric Marine Toilet – Compact Bowl – 12V – 37010-3092
The Jabsco Electric Marine Toilet (37010-3092) is a reliable, space-saving sanitation solution designed for boats equipped with 12-volt DC electrical systems. Featuring a compact bowl design, this electric marine toilet is ideal for vessels where head space is limited while still delivering powerful, push-button flushing performance.
Built with proven Jabsco macerator technology and marine-grade materials, this model offers dependable operation, efficient waste management, and long-term durability in demanding marine environments.
Compact Bowl – Space-Efficient Comfort
The compact bowl configuration reduces the toilet’s footprint, making it well suited for sailboats, smaller cruisers, and tight head compartments. It provides practical comfort without occupying unnecessary space.
12V Electric Flush System
Designed to operate on 12V DC power, the toilet integrates easily into standard recreational marine electrical systems. The electric motor drives a powerful macerator and pump for consistent, hands-free flushing at the touch of a button.
Efficient Maceration & Waste Transfer
The integrated macerating system breaks down waste and toilet paper for smooth discharge through sanitation hoses. Controlled water usage helps reduce odors, minimize clogging, and keep plumbing cleaner.
Marine-Grade Durability
Engineered specifically for marine use, the 37010-3092 features corrosion-resistant components, sealed electrical connections, and a durable ceramic bowl. It is designed to withstand vibration, moisture, and saltwater exposure over years of service.
Easy Installation & Service Support
Compatible with standard marine plumbing connections, this electric toilet is suitable for both new installations and replacements of manual or electric heads. Jabsco’s extensive availability of replacement parts ensures easy maintenance and long-term serviceability.
The Jabsco 37010-3092 is the 12V DC version of the industry's most popular compact electric marine toilet. Designed specifically for smaller heads where space is at a premium, the "Compact Bowl" offers a shorter front-to-back profile and lower height than residential-style models.
This unit is a self-contained "all-in-one" system: a single motor handles both the intake of flush water and the maceration/discharge of waste.
In the Box: 37010-3092
-
(1) Compact White Porcelain Bowl: Vitreous china for a durable, hygienic finish.
-
(1) 12V Motor & Macerator Assembly: Pre-installed on the base.
-
(1) Standard Compact Seat & Lid: High-impact plastic with corrosion-resistant hinges.
-
(1) Push-Button Switch: For bulkhead or vanity mounting.
-
(1) 1" to 1.5" Discharge Adapter: To ensure compatibility with standard sanitation hoses.
-
(1) Installation Manual: Including a full-scale mounting footprint template.
Key Features & Benefits
1. Space-Saving Design
The Compact bowl is the go-to choice for mid-sized sailboats and powerboats. It allows for a functional electric head in compartments where a "Regular" bowl would prevent the door from closing or block walkway access.
2. Powerful Maceration
The internal stainless steel centrifugal chopper grinds waste and toilet paper into a fine slurry. This allows waste to be pumped through a 1" (25mm) discharge line, which is much easier to route through a boat than the larger lines required for non-macerating toilets.
3. All-In-One Pump System
The motor drives two separate stages:
-
Stage 1: A flexible impeller pulls in raw water (sea/lake/river) for rinsing.
-
Stage 2: A centrifugal pump grinds and evacuates waste to a holding tank or overboard (where permitted).
4. Simple Operation
The included push-button control offers a "press-to-flush" operation that is intuitive for guests and children, eliminating the manual pumping and "dry/wet" valve switching found on manual heads.
Technical Specifications
| Feature | Details |
| Model Number | 37010-3092 |
| Voltage | 12V DC |
| Bowl Style | Compact (Space-Saving) |
| Amp Draw | 16.0 Amps |
| Fuse Size | 25.0 Amp |
| Inlet Port | 3/4" (19mm) Hose Barb |
| Discharge Port | 1" (25mm) or 1.5" (38mm) |
| Compliance | Ignition Protected (ISO 8846) |
Pro-Tip for Installation:
"Since this toilet draws 16 Amps, it is sensitive to voltage drop. If your batteries are far from the head, use 10 AWG or even 8 AWG wire to ensure the motor spins at full RPM. A slow-spinning motor won't macerate effectively and is the leading cause of clogs in the discharge line. Also, remember that this model uses raw water; if you want to use onboard fresh water, you must install a solenoid valve to protect your potable water supply from contamination."
Ideal Applications
-
Sailboats and compact cruisers
-
Recreational boats with 12V electrical systems
-
Tight head compartments
-
Replacement for manual or compact electric marine toilets
Why Choose Jabsco Electric Marine Toilets
Jabsco is a trusted leader in marine sanitation solutions, known worldwide for reliability, performance, and service support. The 37010-3092 Compact Electric Marine Toilet delivers dependable flushing power, efficient operation, and space-saving convenience for life onboard.
Upgrade your onboard sanitation with the Jabsco Electric Marine Toilet – Compact Bowl – 12V – 37010-3092, a proven, compact solution designed for reliable marine performance.
