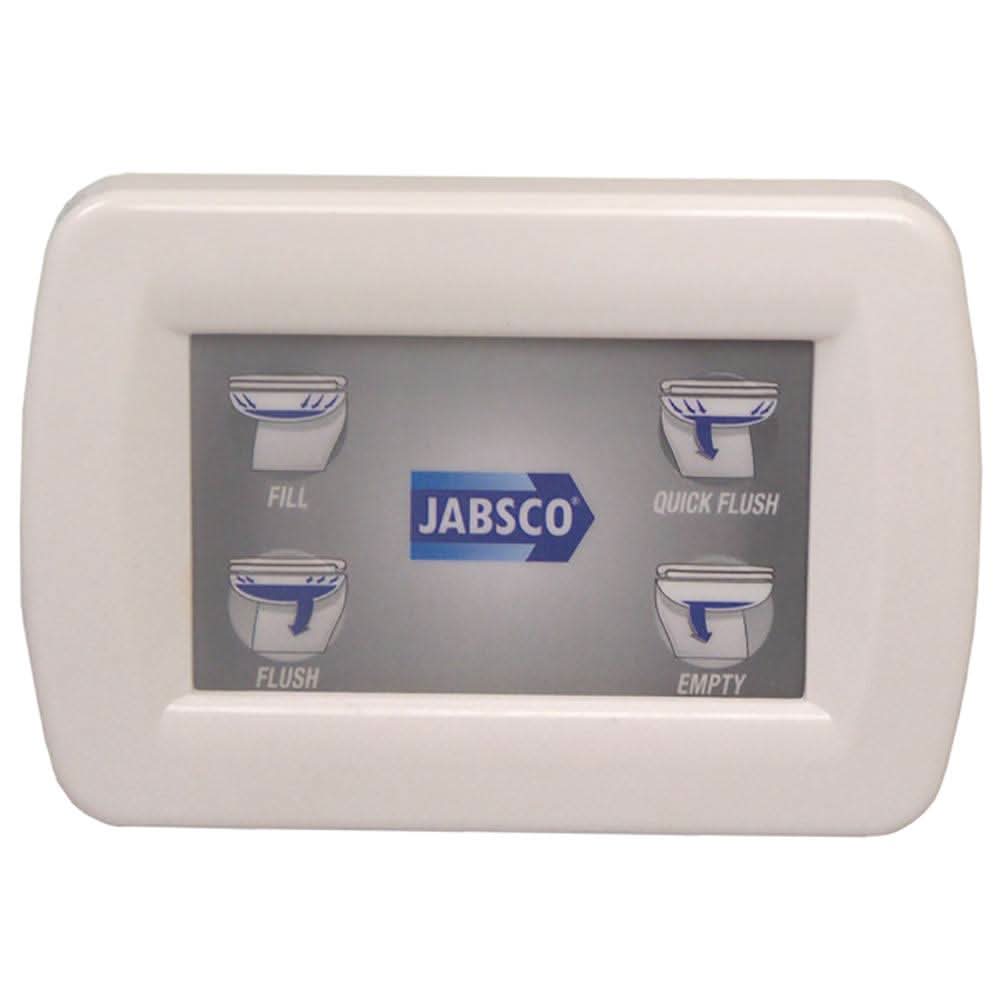

Jabsco Control Kit for Deluxe Flush & Lite Flush Toilets - 58029-1000

Key Performance Features

• Four Flush Options: The panel provides four distinct cycles to manage water usage and hygiene:

  • Fill: Adds 1 quart (1 liter) of water to a dry bowl before use.

  • Quick Flush: A water-saving rinse and empty cycle for light use (uses less than 1 quart).

  • Flush: A double rinse and empty cycle for heavy use (uses approximately 2.5 quarts).

  • Empty: Evacuates the bowl without adding any new water.

• Programmable Bowl Level: You can toggle between a "Wet" or "Dry" bowl setting by holding the 'Quick Flush' and 'Flush' buttons simultaneously for 5 seconds. The "Dry" setting is ideal for saving water or minimizing movement while underway.

• Sealed Electronics: The kit includes a potted control box module to protect sensitive electronics from the humid and corrosive marine environment.

Technical Specifications

• Voltage: Compatible with 12V or 24V DC systems.

• Compatibility: Exclusively for Jabsco Deluxe Flush (58xx0 series) and Lite Flush (37045 series) toilets.

• Included Components: Control box electronics module, touch pad face plate, trim plate, adapter plate, and heat shrink sleeve for the control cable.

• Control Type: Soft-touch membrane panel.

Summary for the User

The 58029-1000 is the essential "brain" for modern Jabsco electric toilets. Its ability to switch between water-saving modes and full-flush cycles makes it highly versatile for long-range cruisers. Users often find the "Dry" bowl setting particularly helpful for preventing splashes in rough seas.

Installation Tip: When installing the control box, ensure you use the included heat shrink sleeve on the control cable connection. This prevents moisture from entering the plug, which is the most common cause of erratic button behavior or panel failure.
