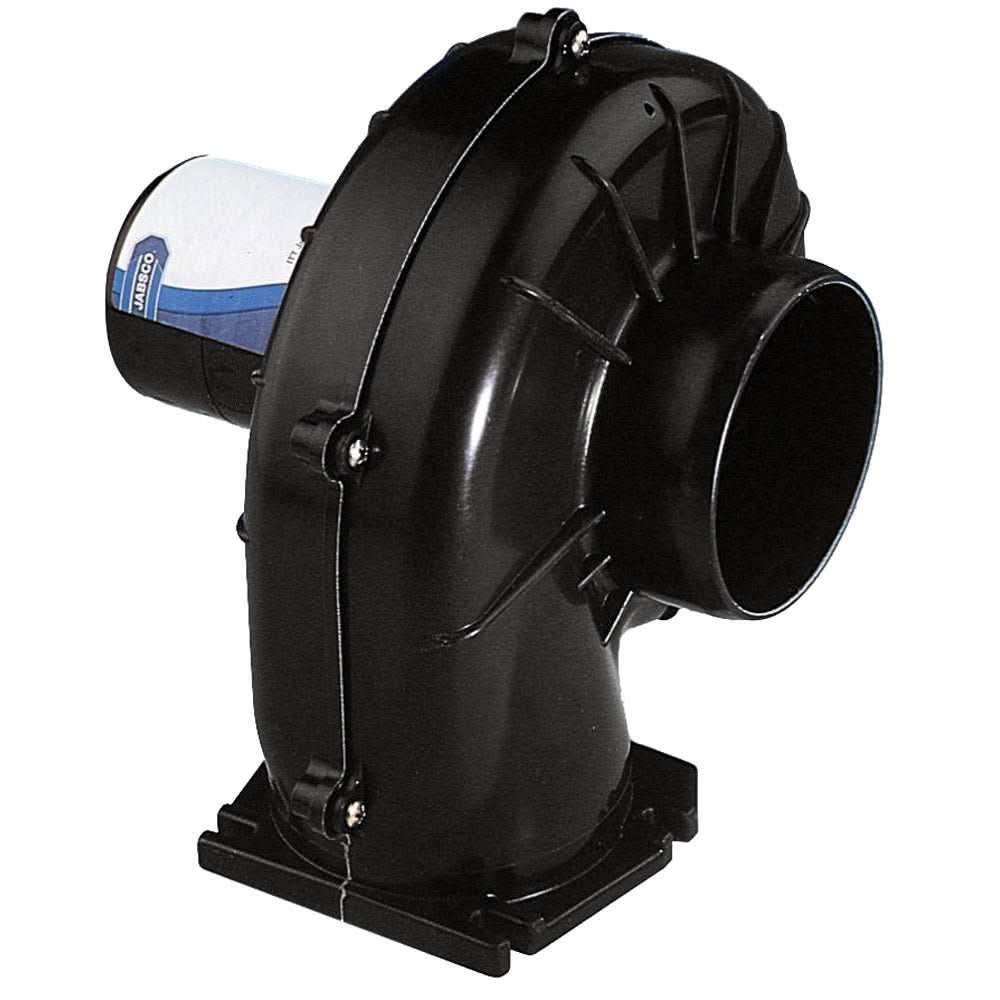

Jabsco 3" Flangemount Blower – 105 CFM – 24V – 34739-0020
The Jabsco 3" Flangemount Blower is a compact, dependable 24-volt marine ventilation blower engineered to provide consistent airflow in enclosed spaces. Delivering 105 CFM, this blower is ideal for ventilating engine compartments, machinery spaces, lockers, and other confined areas on vessels and commercial equipment using 24V electrical systems.
Designed for durability and long service life, this blower is a trusted solution for applications where reliable air circulation and corrosion resistance are critical.
Efficient 105 CFM Airflow
With a 105 cubic feet per minute airflow rating, this blower effectively removes heat, moisture, fumes, and odors from smaller compartments while maintaining quiet, efficient operation.
Secure Flangemount Installation
The flangemount design allows for solid, vibration-resistant installation on bulkheads or flat mounting surfaces. This ensures stable operation and long-term reliability in demanding marine environments.
24V DC Power Compatibility
Operating on 24-volt DC power, this blower is ideal for commercial vessels, workboats, and yachts equipped with 24V electrical systems, providing dependable ventilation without the need for voltage conversion.
Marine-Grade Construction
Manufactured with corrosion-resistant materials and a sealed motor, the blower is built to withstand moisture, vibration, and harsh operating conditions commonly found onboard.
In the Box: 34739-0020
-
(1) Jabsco 3" Flangemount Blower: 24V DC unit with a corrosion-resistant, high-impact plastic housing.
-
(1) Integrated Flange Mounting Bracket: Built into the intake side for flush-style mounting.
-
(1) Wiring Pigtail: For connection to your 24V power source.
-
(1) Instruction Sheet: Including mounting hole templates and electrical specifications.
Key Features & Benefits
1. High-Efficiency 24V Motor
Designed for boats with 24V battery banks, this blower draws a very low 2.2 Amps. This makes it extremely efficient for long-term use, such as exhausting heat from an engine room during a long passage or providing constant ventilation to a battery locker.
2. Ignition Protected (ISO 8846)
This blower is fully compliant with USCG 183.410 and ISO 8846 Marine standards. This means it is safe to use in environments where gasoline fumes may be present, as any internal sparks are contained within the motor
3. Quiet & Compact
The 3-inch diameter allows this blower to fit into tight spaces where larger 4-inch blowers cannot. Its radial leaf fan design is balanced to minimize vibration and noise, making it less intrusive when used near living quarters.
4. Corrosion-Resistant Materials
The motor features a nickel-plated shell, and the housing is made of a tough thermoplastic that will not rust or corrode in the humid, salty environment of a boat's bilge.
Technical Specifications
| Feature | Details |
| Model Number | 34739-0020 |
| Voltage | 24V DC |
| Airflow (Open Flow) | 105 CFM (3.0 $m^3/min$) |
| Amp Draw | 2.2 Amps |
| Fuse Size | 4.0 Amp |
| Ducting Size | 3" (76mm) |
| Mounting Style | Flangemount (Bulkhead) |
| Safety Standard | Ignition Protected (ISO 8846) |
Pro-Tip for Installation:
"To maintain maximum airflow, ensure the 3-inch ducting is pulled taut and has as few bends as possible. If you are using this blower for exhausting engine room fumes, mount it as high as possible in the compartment. If you are using it to cool sensitive electronics, ensure the intake air is pulled from a cool, dry area of the boat rather than the humid bilge."
Ideal Applications
-
Engine compartment ventilation
-
Electrical and machinery spaces
-
Marine lockers and storage areas
-
Commercial vessels and workboats
-
24V marine electrical systems
Why Choose Jabsco Ventilation Products
Jabsco is a global leader in marine ventilation and fluid management, known for producing rugged, reliable equipment. The 3" 105 CFM Flangemount Blower – 24V delivers dependable airflow in compact installations where performance and durability matter.
Ensure proper airflow onboard with the Jabsco 3" Flangemount Blower – 105 CFM – 24V – 34739-0020, a compact and reliable ventilation solution built for professional marine use.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 34739-0020
UPC : 671880029377
