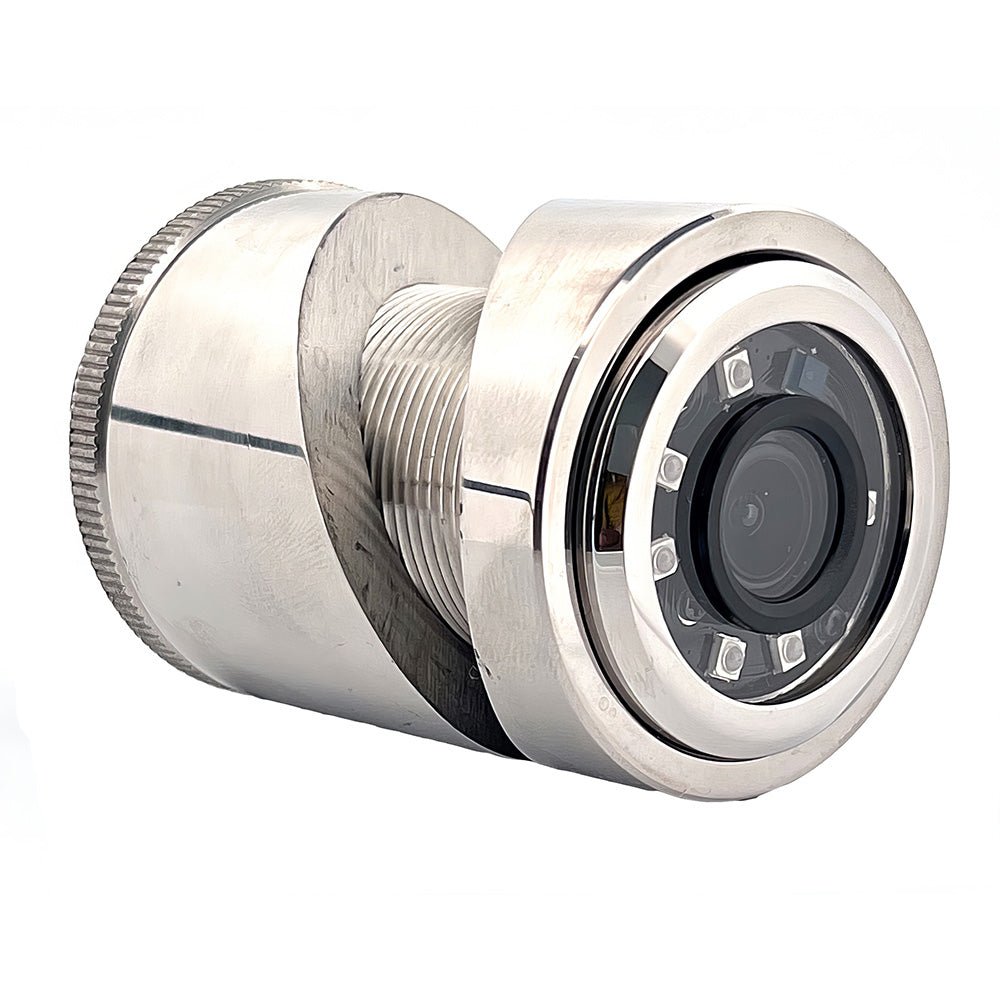

Iris 3MP Compact 316L Stainless Steel Thru-Hull/Panel IP Camera - 2.8mm Lens - IRIS435-28

Iris 3MP Compact 316L Stainless Steel Thru-Hull/Panel IP Camera – 2.8mm Lens (IRIS435-28)

Enhance onboard visibility and security with the Iris 3MP Compact Thru-Hull/Panel IP Camera. Built specifically for marine environments, this high-resolution 3-megapixel camera features a rugged 316L stainless steel housing designed for thru-hull or panel mounting applications. Compact, corrosion-resistant, and engineered for harsh saltwater conditions, the IRIS435-28 delivers clear, wide-angle video monitoring above or below deck.

Ideal for engine rooms, cockpits, swim platforms, companionways, and exterior hull monitoring, this marine-grade IP camera provides dependable performance in demanding conditions.

Key Features & Benefits

3MP High-Definition Video
Delivers crisp, detailed 3-megapixel resolution for enhanced clarity and situational awareness on board.

2.8mm Wide-Angle Lens
Provides broad field-of-view coverage, making it ideal for monitoring large areas such as decks, transoms, engine compartments, or entry points.

316L Stainless Steel Housing
Constructed from premium marine-grade 316L stainless steel for superior corrosion resistance in saltwater and offshore environments.

Thru-Hull or Panel Mount Design
Versatile mounting configuration allows flush installation in hulls or panels for a clean, professional appearance.

Compact Low-Profile Form Factor
Small footprint makes it easy to install in tight spaces while maintaining a sleek aesthetic.

IP Network Connectivity
Integrates with onboard network systems, NVRs, and compatible marine monitoring platforms for remote viewing and recording.

Built for Marine Environments

The IRIS435-28 is engineered to withstand:

• Saltwater exposure

• UV radiation

• Vibration and vessel movement

• Temperature fluctuations

• Harsh offshore conditions

Its durable stainless housing and sealed construction make it ideal for long-term marine installation.

What’s in the Box

• IRIS435-28 Camera Unit: 3MP HD IP camera in a 316L Stainless Steel housing.

• 2.8mm Wide-Angle Lens: Pre-installed for a broad 120∘ field of view

• Wedge Adapters: Includes 60∘ wedge adapters to help angle the camera during surface or thru-hull mounting.

• Water-Resistant Connector: Field-installable RJ45 backshell for a waterproof network connection.

• Hardware Kit: Stainless steel mounting screws and fixings.

• Installation Manual: Technical guide for network setup (ONVIF) and mounting.

Technical Specifications

• Resolution: 3 Megapixel ($2304\times 1296$).

• Field of View: 120∘ Horizontal.

• Night Vision: 6x 850nm Infrared LEDs ($10\text{m}$ range).

• Material: Marine Grade 316L Stainless Steel.

• Ingress Protection: IP68 (Fully submersible).

• Power: PoE (Power over Ethernet) IEEE802.3af or 12V DC.

• Connectivity: ONVIF Profile S compliant; compatible with Raymarine (Axiom), Furuno (TZT), Navico (Simrad/B&G/Lowrance), and Garmin (via CMAC).

Ideal Applications

• Engine room monitoring

• Cockpit and helm security

• Swim platform surveillance

• Companionway or cabin entry monitoring

• Transom and stern visibility

• Yacht and commercial vessel security systems

Installation Recommendations

Install using proper marine sealant for thru-hull applications. Ensure compatibility with onboard network infrastructure and NVR systems. Use marine-grade Ethernet and waterproof connectors for optimal reliability.

Reliable Marine Surveillance

The Iris 3MP Compact 316L Stainless Steel IP Camera (IRIS435-28) combines high-definition imaging, rugged marine construction, and flexible installation options to deliver dependable onboard monitoring wherever visibility matters most.

Manufacturer : Iris Innovations
Manufacturer Part No : IRIS435-28
