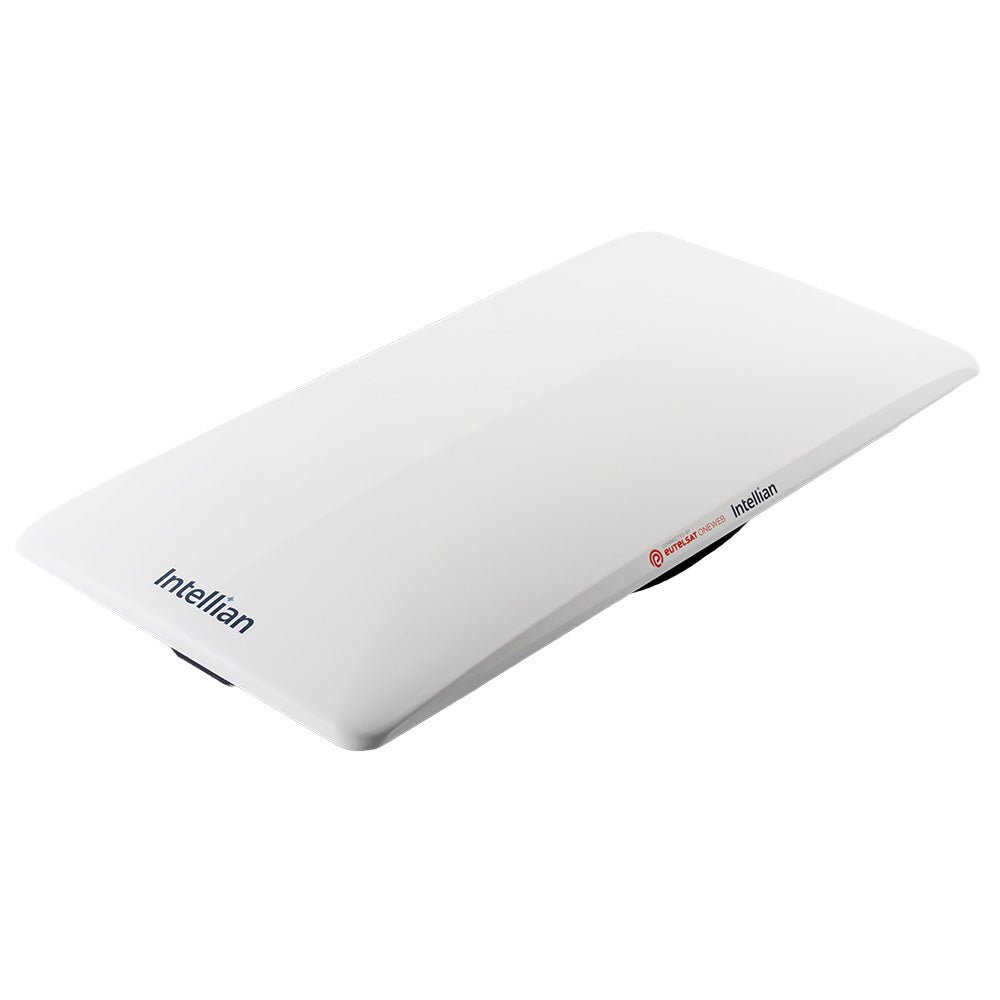

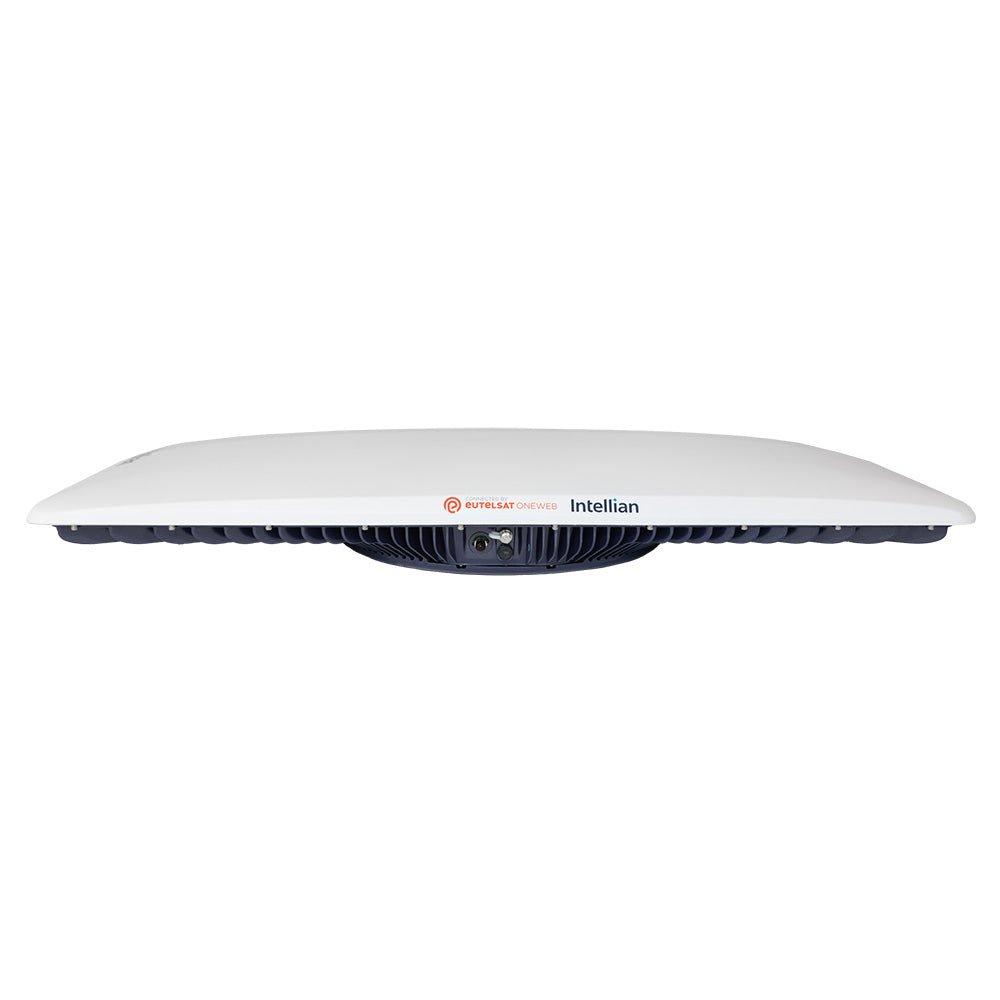

Intellian MS-OW11FFG Enterprise Land Mobile Outdoor Antenna Unit for Critical Communications - MS-OW11FFG

Intellian MS-OW11FFG Enterprise Land Mobile Outdoor Antenna Unit for Critical Communications

The Intellian MS-OW11FFG Enterprise Land Mobile Outdoor Antenna Unit is engineered to provide reliable, high-speed connectivity for government and transportation sectors. Its flat panel design ensures optimal performance even at low elevation angles, making it ideal for land mobile applications requiring high throughput and low latency. Utilizing advanced antenna technology, the OW11FV delivers maximum link margin and maintains robust communication capabilities in challenging environments, ensuring safety, route management, and entertainment services remain uninterrupted. Its seamless connectivity features, including sophisticated tracking and blockage mitigation, facilitate smooth handovers and consistent service while in motion, supporting critical operations across various terrains and conditions.

Designed for ease of installation, the lightweight and sleek structure simplifies deployment by a single technician. The system employs a single coaxial cable for power and encrypted data transfer, reducing setup complexity. The integrated dual GNSS antennas offer automated True North calibration and tilt error compensation, enhancing positional accuracy. The unit is built to withstand extreme temperatures, operating reliably from -40°C to +55°C (-40°F to +131°F), ensuring dependable performance in harsh outdoor environments. Compatibility with Intellian’s Customer Network Exchange (CNX) units, available in multiple variants, enables flexible integration into existing network architectures. The system’s compact dimensions and weight facilitate installation on vehicles of varying sizes, further supported by the optional mobile mount adapter kit and intuitive mobile app for site surveys, configuration, and monitoring.

Technical specifications include a peak downlink data rate of 195 Mbps and uplink of 32 Mbps, with an EIRP of +36.6 dBW for dual carrier operation. The antenna features a 38.2-inch by 19.7-inch panel size, weighs approximately 45 pounds, and is designed for quick, straightforward installation. Its high gain and low ingress loss make it suitable for mission-critical land mobile communication needs, providing a durable and efficient solution for outdoor connectivity in diverse operational scenarios.

Features:

• Optimized Performance: Delivers maximum throughput on the OneWeb network with high link margin, ensuring reliable connectivity even at low elevation angles.

• Seamless Connectivity: Advanced tracking, extended scan range, and blockage mitigation provide dependable service while in motion, enabling smooth handovers.

• Harsh Environment Performance: Operates reliably in temperatures from -40°C to +55°C (-40°F to +131°F), suitable for demanding outdoor conditions.

• Simplified Installation: Lightweight, sleek design with a single coaxial cable for power and data, plus embedded GNSS antennas for automated calibration.

• Flexible Network Integration: Compatible with multiple CNX variants (WIFI, RACK, MOBILITY), supporting easy deployment in various network setups.

• Easily Deployable System: Compact, lightweight design allows installation by a single person; includes optional mobile mount adapter kit for vehicle deployment.

BRAND: Intellian

Manufacturer Part Number: MS-OW11FFG
