What electrical systems are compatible with the Marine Hidden Horn?

The Marine Hidden Horn is designed to work with 12 or 24 Volt DC systems, making it versatile for most marine vessels.

Is this horn suitable for boats shorter than 12 meters?

Yes, this horn is specifically intended for vessels under 12 meters (39.4 feet) in length, ensuring optimal performance for smaller boats.

The Marine Hidden Horn uses advanced 'SETS' Horn Technology, which provides a powerful sound while drawing less than 1/2 Amp, making it energy-efficient for marine use.

What are the installation requirements for this marine horn?

The horn requires a 2-1/4 inch mounting hole and comes with a mounting gasket. It is also polarity protected and features a built-in water evacuation drainage system for durability.

Does the Marine Hidden Horn have moving parts that could wear out?

No, this horn is a solid state device with no moving parts, ensuring long-lasting performance and minimal maintenance.

What are the benefits of the built-in drainage system on this horn?

The built-in water evacuation drainage system helps prevent water accumulation inside the horn, increasing its longevity and reliability in marine environments.

Popular right now
Lots of people have looked at this recently

Innovative Lighting Marine Hidden Horn - Black - 540-0000-7

Name: Innovative Lighting Marine Hidden Horn - Black - 540-0000-7
Brand: Innovative Lighting
SKU: 70419
Price: 32.99 USD
Availability: InStock

$32.99 ~~$39.55~~

SKU: 70419

Manufacturer Part #: 540-0000-7

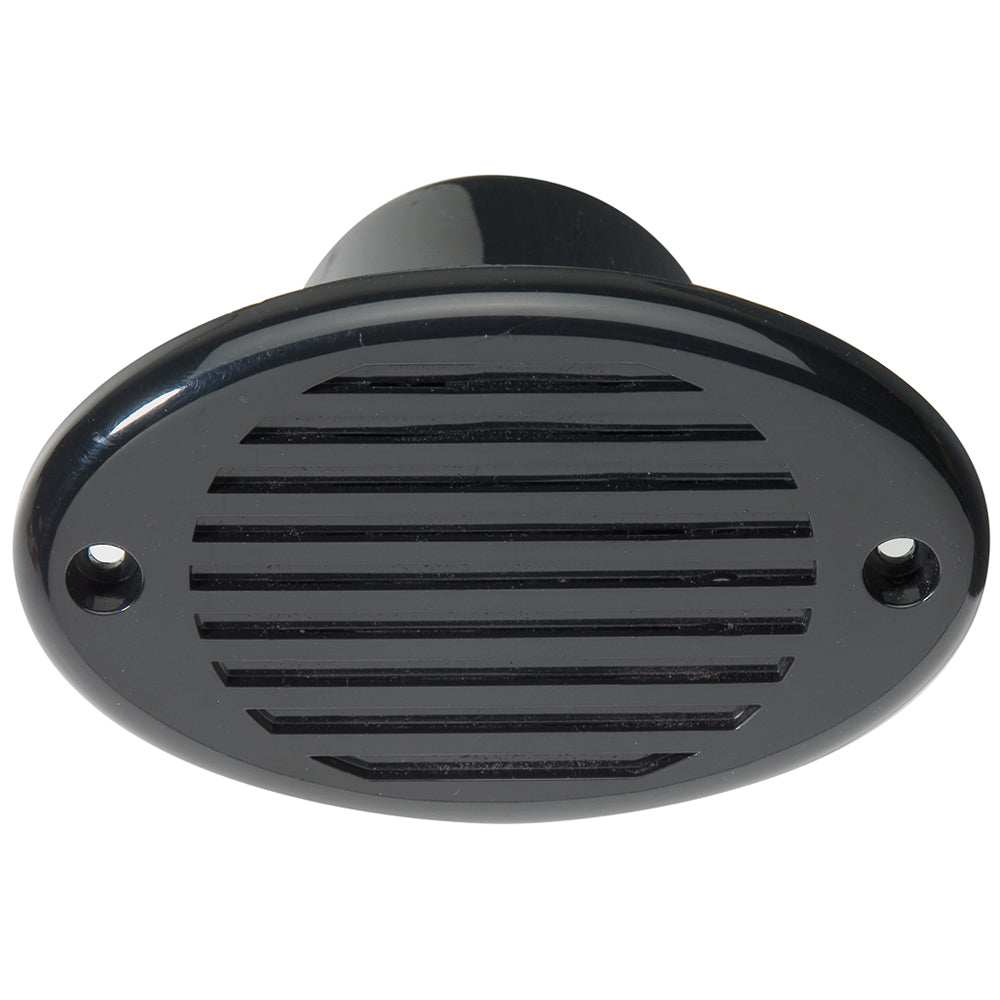

Innovative Lighting Marine Hidden Horn – Black (Model 540-0000-7)

Add reliable, low-profile sound signaling to your boat with the Innovative Lighting Marine Hidden Horn in black. Designed to mount discreetly behind grills or under decks, this compact marine horn delivers clear, attention-getting sound while maintaining a clean, uncluttered look on your vessel.

Built for harsh marine environments, the horn features corrosion-resistant construction and sealed components to withstand moisture, spray, and vibration. It’s compatible with standard 12V marine electrical systems, making it an easy replacement or upgrade for existing marine horns on powerboats, pontoons, and personal watercraft. Ideal for meeting basic sound signaling needs while keeping hardware out of sight.

Key Features

Discrete Profile: Specifically designed for "hidden" installation, keeping the hardware out of sight for a minimalist aesthetic.
Corrosion-Resistant: Built with a high-impact plastic housing that will not rust or corrode in marine environments.
Universal Compatibility: Standard 12V operation makes it compatible with almost all powerboat and sailboat electrical systems.
Loud & Clear Signal: Designed to meet or exceed USCG and ABYC standards for audible signaling on the water.
Easy Mounting: Compact footprint allows for installation in tight compartments where traditional trumpet horns won't fit.

Technical Specifications

Feature	Specification
Model Number	540-0000-7
Color/Finish	Black
Voltage	12V DC
Sound Output	Approx. 105 dB at 1 Meter
Current Draw	3.0 Amps
Material	High-Impact Non-Corrosive Plastic
Dimensions	3.25"W x 2.0"H x 3.5"D
Certification	Meets USCG & ABYC Requirements

What’s In The Box?

(1) Innovative Lighting Hidden Horn (Black)
(1) Pre-Wired Pigtail Connector
(1) Mounting Gasket
Basic Mounting Hardware & Instructions

Applications

Powerboats, pontoons, and center consoles
Replacement or upgrade marine horn
Discreet sound signaling solutions

Part Number: 540-0000-7
Condition: New
Category: Marine Electrical / Horns & Sound Signaling
