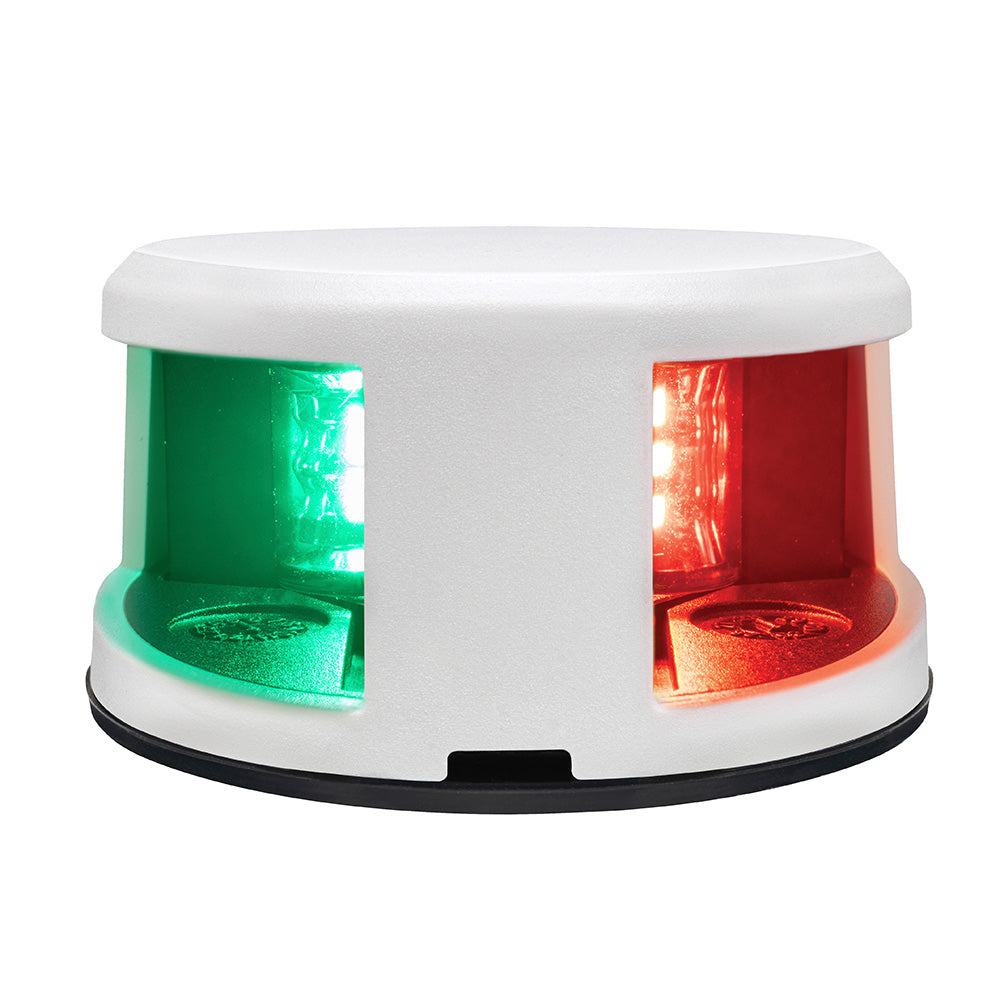

Hella Marine NaviLED Gen II Bi-Color Deck Mount Navigation Lamp - White - 17910601
Couldn't load pickup availability
Hella Marine NaviLED Gen II Bi-Color Deck Mount Navigation Lamp provides dependable navigation lighting for powerboats and vessels up to 65 feet in length. Part number 17910601 features a clean, compact profile with a horizontal surface-mount design and two-hole screw installation. Once installed, the fasteners remain concealed for a streamlined appearance, while the white housing complements a variety of vessel finishes.
Built for 12- and 24-volt marine electrical systems, the lamp uses Multivolt circuitry to maintain the required 2 nautical miles of visibility even when system voltage drops as low as 9 volts. Reverse-polarity protection helps safeguard the light during installation or wiring errors, and the bi-color design combines port and starboard navigation functions in one efficient fixture. Power consumption remains below 2 watts, supporting efficient onboard electrical management.
The Hella Marine NaviLED Gen II is engineered for harsh marine conditions. Its high-impact, UV-resistant acrylic lens and fully sealed construction protect internal components from sunlight, salt air, vibration, water intrusion, submersion during operation, and high-pressure water-jet cleaning. IP67 and IP69 protection ratings provide added confidence for demanding deck installations. Integrated electromagnetic compatibility measures help limit interference with radio, communication, navigation, and other electrical equipment on board.
Installation is simplified with 120 millimeters of tinned marine cable for reliable connection and corrosion resistance. Designed to meet current American Boat and Yacht Council standards and applicable international requirements, this Hella Marine navigation lamp is a durable choice for replacement or new-build applications. It is backed by a 5-year warranty for long-term service confidence.
Features:
- Mounting: Horizontal surface mount with two-hole screw installation and concealed fasteners
- Navigation visibility: 2 nautical miles for port, starboard, and bi-color operation
- Lens material: High-impact, UV-resistant acrylic
- Operating voltage: Multivolt 9-32V DC for 12V and 24V marine systems
- Voltage protection: Reverse-polarity protected
- Power consumption: Less than 2 watts for bi-color operation
- Cable: 120 millimeters of tinned marine cable
- Protection: IP67 and IP69 fully sealed construction, suitable for submersion during operation and high-pressure water-jet cleaning
- Compatibility: Suitable for vessels up to 65 feet in length and compliant with applicable ABYC and international standards
- Warranty: 5 years
Hella Marine NaviLED Gen II Bi-Color Deck Mount Navigation Lamp - White
Hella Marine NaviLED Gen II Bi-Color Deck Mount Navigation Lamp provides dependable navigation lighting for powerboats and vessels up to 65 feet in length. Part number 17910601 features a clean, compact profile with a horizontal surface-mount design and two-hole screw installation. Once installed, the fasteners remain concealed for a streamlined appearance, while the white housing complements a variety of vessel finishes.
Built for 12- and 24-volt marine electrical systems, the lamp uses Multivolt circuitry to maintain the required 2 nautical miles of visibility even when system voltage drops as low as 9 volts. Reverse-polarity protection helps safeguard the light during installation or wiring errors, and the bi-color design combines port and starboard navigation functions in one efficient fixture. Power consumption remains below 2 watts, supporting efficient onboard electrical management.
The Hella Marine NaviLED Gen II is engineered for harsh marine conditions. Its high-impact, UV-resistant acrylic lens and fully sealed construction protect internal components from sunlight, salt air, vibration, water intrusion, submersion during operation, and high-pressure water-jet cleaning. IP67 and IP69 protection ratings provide added confidence for demanding deck installations. Integrated electromagnetic compatibility measures help limit interference with radio, communication, navigation, and other electrical equipment on board.
Installation is simplified with 120 millimeters of tinned marine cable for reliable connection and corrosion resistance. Designed to meet current American Boat and Yacht Council standards and applicable international requirements, this Hella Marine navigation lamp is a durable choice for replacement or new-build applications. It is backed by a 5-year warranty for long-term service confidence.
Features:
- Mounting: Horizontal surface mount with two-hole screw installation and concealed fasteners
- Navigation visibility: 2 nautical miles for port, starboard, and bi-color operation
- Lens material: High-impact, UV-resistant acrylic
- Operating voltage: Multivolt 9-32V DC for 12V and 24V marine systems
- Voltage protection: Reverse-polarity protected
- Power consumption: Less than 2 watts for bi-color operation
- Cable: 120 millimeters of tinned marine cable
- Protection: IP67 and IP69 fully sealed construction, suitable for submersion during operation and high-pressure water-jet cleaning
- Compatibility: Suitable for vessels up to 65 feet in length and compliant with applicable ABYC and international standards
- Warranty: 5 years
BRAND: Hella Marine
Manufacturer Part Number: 17910601
