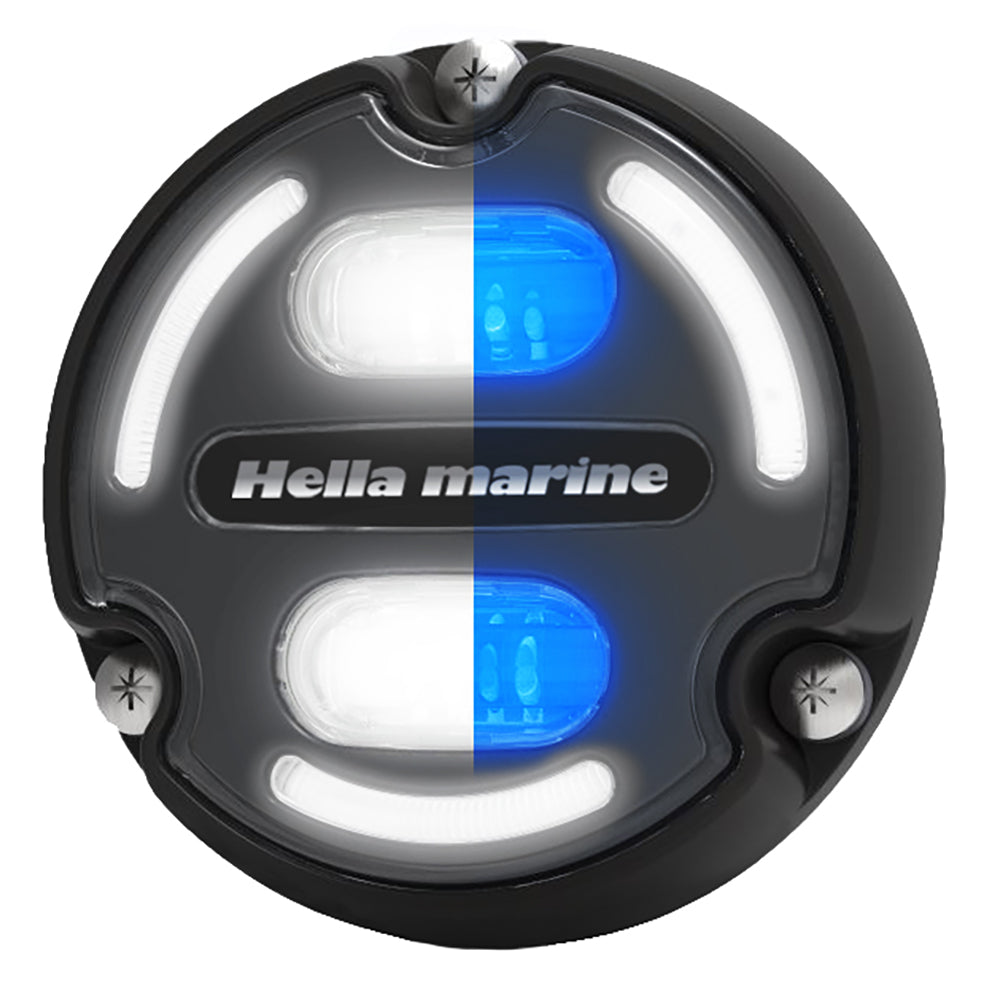

Hella Marine Apelo A2 Blue White Underwater Light - 3000 Lumens - Black Housing - Charcoal Lens w/Edge Light - 016147-001

Hella Marine Apelo A2 Blue White Underwater Light – 3000 Lumens

Black Housing – Charcoal Lens with Edge Light (016147-001)

Elevate your boat’s underwater presence with the Hella Marine Apelo A2 Blue White Underwater Light. Delivering an impressive 3000 lumens of crisp blue-white illumination, this high-performance LED light features a sleek black housing and charcoal lens with advanced edge light technology for smooth, evenly distributed output.

Designed for serious boaters who want premium performance and modern styling, the Apelo A2 combines powerful illumination with rugged marine durability for long-lasting reliability in both saltwater and freshwater environments.

Key Features & Benefits

Powerful 3000 Lumen Output
High-intensity LED performance delivers bright underwater illumination for enhanced visibility, nighttime aesthetics, and dockside ambiance.

Blue-White LED Lighting
Produces a crisp, vibrant blue-white glow that enhances hull appearance and improves underwater visibility around the transom and swim platform.

Edge Light Technology
Advanced optical design provides smooth, uniform illumination with minimal hotspots for a professional underwater lighting effect.

Black Marine-Grade Housing
Low-profile black finish blends seamlessly with modern hull designs and remains discreet when turned off.

Charcoal Lens Design
Tinted charcoal lens reduces glare above water while maintaining brilliant light transmission below the waterline.

Built for Marine Durability
Engineered to withstand UV exposure, vibration, saltwater corrosion, and harsh marine conditions for dependable long-term performance.

Why Choose the Apelo A2 Blue White?

Hella Marine is recognized globally for innovative marine lighting solutions. The Apelo A2 series offers:

• High-output performance in a compact footprint

• Energy-efficient LED operation

• Premium styling for modern vessels

• Reliable construction for demanding marine use

• Clean, consistent underwater illumination

What’s in the Box

• Apelo A2 Dual-Color Light: Black thermal polymer housing with a Charcoal lens.

• Edge Light Feature: Integrated accent lighting bordering the lamp face.

• Marine Cable: 2.5 meters (8.2 feet) of 2-core tinned marine cable.

• Mounting Hardware: Stainless steel screws and protective washers.

• Installation Guide: Includes wiring for dual-color switching and strobe mode.

Technical Specifications

• Light Output: 3000 Lumens (White light equivalent).

• Colors: Dual Color (White and Blue) + Strobe Mode.

• Edge Light Output: <2W (Gentle white accent glow).

• Voltage: Multivolt 9–32V DC (12V/24V nominal).

• Power Consumption: * Main Light: 30W ($2.5\text{A}$ @ 12V / $1.3\text{A}$ @ 24V)

  • Edge Light: <2W ($0.2\text{A}$ @ 12V)

• Materials: High-strength Grilamid (Nylon) lens; Hard-anodized aluminum/thermal polymer base.

• Sealing: IP68 (Submersible) and IP69K (High-pressure wash resistant).

• Dimensions: $95\text{mm}$ ($3.74\text{"}$) Diameter x $24\text{mm}$ ($0.94\text{"}$) Profile.

Ideal Applications

• Underwater transom lighting

• Swim platform illumination

• Night fishing visibility

• Dockside entertainment lighting

• Sportfish, center consoles, cruisers, and yachts

Installation Recommendations

Install below the waterline using marine-grade sealant and wiring. Mount strategically for balanced light distribution. Inspect seals and electrical connections periodically to maintain optimal performance.

Enhance your boat’s nighttime presence and underwater visibility with the Hella Marine Apelo A2 Blue White Underwater Light – 3000 Lumens, built for performance, durability, and modern marine styling.

Manufacturer : Hella Marine
Manufacturer Part No : 016147-001
