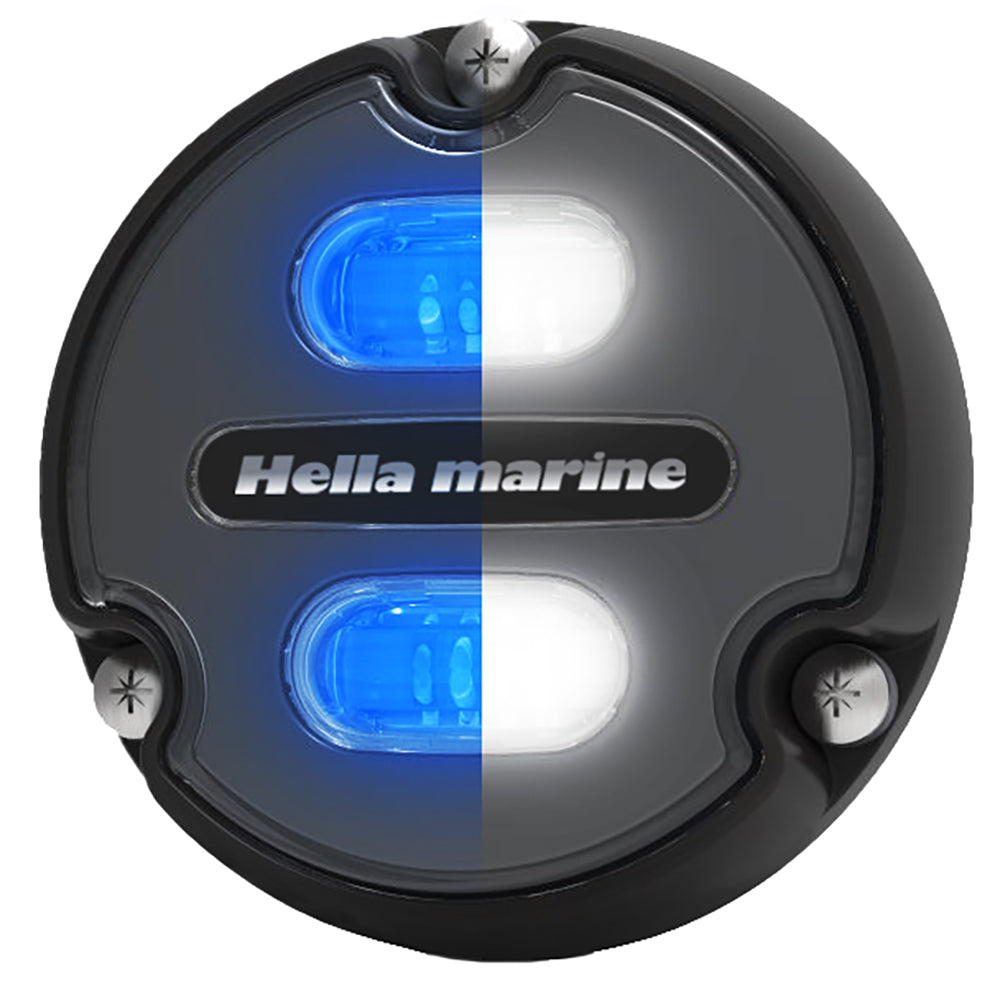

Hella Marine Apelo A1 Blue White Underwater Light - 1800 Lumens - Black Housing - Charcoal Lens - 016145-001
Manufacturer Part #: 016145-001
Couldn't load pickup availability
Hella Marine Apelo A1 Blue/White Underwater Light – 1800 Lumens, Black Housing, Charcoal Lens
Model: 016145-001
Light Color: Selectable Blue / White
Brightness: 1,800 Lumens
Housing: Black
Lens: Charcoal
Voltage: 12V DC
Application: Marine Underwater Lighting
Powerful Dual-Color Underwater Illumination
The Hella Marine Apelo A1 Underwater Light delivers stunning underwater illumination with selectable blue or white light, giving your boat both style and functionality. With 1,800 lumens of brightness, it creates an impressive glow around your transom—perfect for night cruising, dockside ambience, and improved visibility in the water.
Premium Optics with Charcoal Lens
The charcoal lens delivers a sleek, stealth look when the light is off, then bursts to life with vivid underwater illumination when powered on. Dual-color output lets you switch between crisp white for visibility and vibrant blue for atmosphere.
Built for Harsh Marine Environments
Engineered for underwater use, the Apelo A1 features a fully sealed, corrosion-resistant housing designed to withstand saltwater immersion, vibration, and harsh weather conditions. It’s built for long-term performance below the waterline.
Energy-Efficient LED Performance
Advanced LED technology delivers bright light with low power draw and long service life—ideal for boats that want maximum visual impact without draining the battery bank.
Key Features
-
Dual Color Output: Toggle between brilliant White and vibrant Blue illumination using a standard power switch.
-
Advanced Materials: Built with a Grilamid® high-strength nylon lens and a corrosion-proof thermal polymer housing—safe for any hull material (fiberglass, aluminum, steel, or wood).
-
Optical Intelligence: Engineered to maximize horizontal spread while minimizing vertical glare, ensuring the most efficient light distribution in the water.
-
Dry-Run Protected: Advanced thermal management allows the light to be operated out of the water for testing without damaging the LEDs or housing.
-
Fully Sealed Design: Completely watertight and electronically protected against reverse polarity and voltage spikes.
In The Box
| Component | Description |
| Apelo A1 Light Unit | 1800 Lumen LED unit with Black Housing & Charcoal Lens |
| Mounting Hardware | Stainless steel screws for secure surface installation |
| Wiring Pigtail | 2.5m (8.2ft) of marine-grade twin-core cable |
| Installation Template | Drill-hole template for precise surface mounting |
| Instruction Manual | Detailed wiring guide and safety specifications |
Technical Specifications
-
Model Number: 016145-001
-
Lumens: 1800 (White)
-
Voltage: 12/24V DC (Multi-volt)
-
Power Consumption: < 20W (White/Blue)
-
Degree of Protection: IP68 / IP69 (Submersible)
-
Mounting Style: Surface Mount with 2.5m Cable
Installation Note: Because the Apelo A1 is a surface-mount light, it only requires a small hole for the cable to pass through the hull, significantly reducing the risk of leaks compared to through-hull style lights.
Perfect For
-
Transom lighting
-
Swim platform illumination
-
Night docking & visibility
-
Dockside ambiance
-
Boat exterior lighting upgrades
Manufacturer : Hella Marine
Manufacturer Part No : 016145-001
