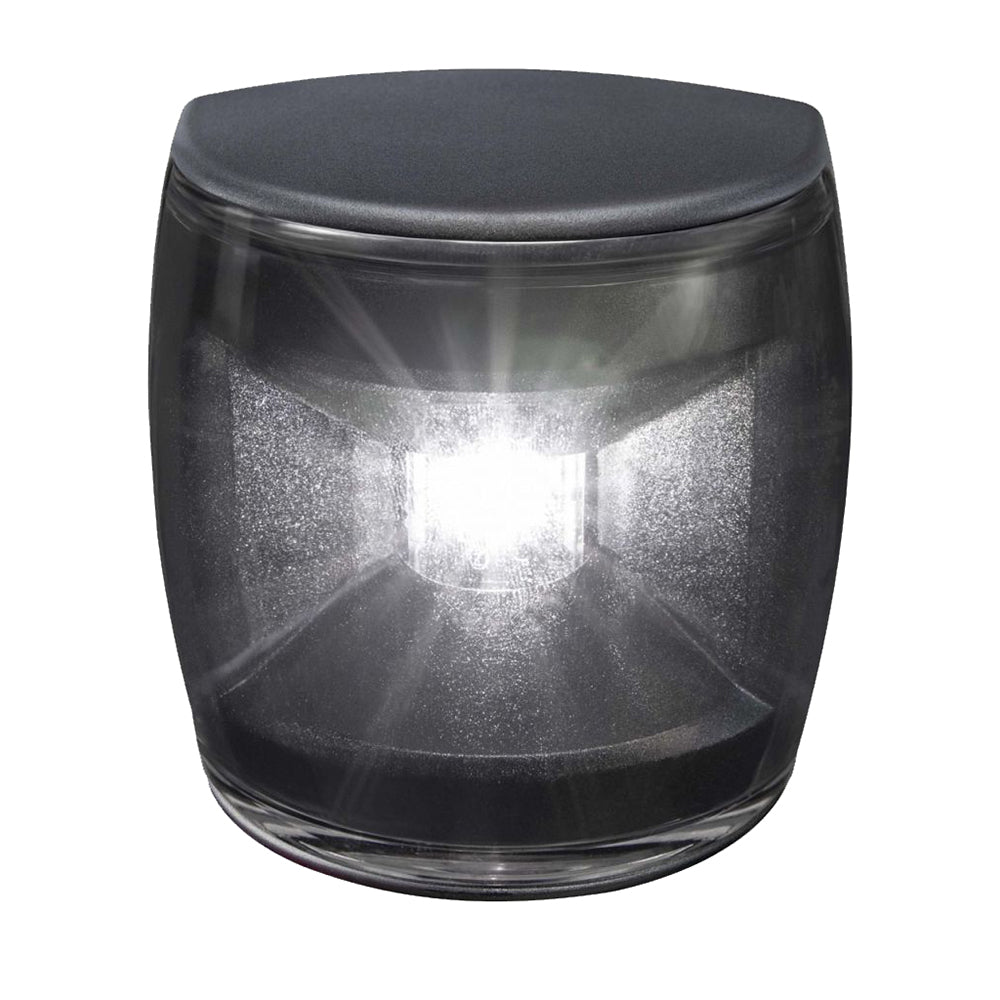

Hella Marine 3nm NaviLED PRO Stern Navigation Lamp - Black - 017462101
Manufacturer Part #: 17462101
Couldn't load pickup availability
Hella Marine 3nm NaviLED PRO Stern Navigation Lamp – Black (017462101)
The Hella Marine 3nm NaviLED PRO Stern Navigation Lamp (017462101) is a high-performance LED stern light designed for reliable marine navigation and superior durability. Engineered for commercial, offshore, and recreational vessels, this advanced navigation light delivers 3 nautical mile visibility, ensuring clear identification and compliance with international marine safety standards.
Built with Hella Marine’s highly efficient LED technology, the NaviLED PRO series provides precise light output with ultra-low power consumption. The lamp operates on Multivolt™ 9–33V DC systems, making it suitable for both 12V and 24V marine electrical systems.
The light features a fully sealed IP67-rated housing, protecting internal components from water, salt spray, vibration, and harsh marine conditions. Constructed with UV-resistant, high-impact materials, it offers long-term reliability even in demanding offshore environments.
Designed to meet global marine regulations, the NaviLED PRO stern light is certified to IMO COLREG 72, USCG, and ABYC C-5 standards, making it suitable for vessels requiring dependable and compliant navigation lighting.
Key Features & Benefits
-
3 Nautical Mile Visibility: Exceeds standard requirements for vessels up to 50 meters, ensuring maximum safety and compliance with USCG, IMO COLREG, and ABYC standards.
-
Indestructible Construction: The housing is made from high-impact, UV-resistant acrylic that is completely sealed (IP67 rated) against dust and high-pressure water jets.
-
Multivolt Technology: Advanced internal electronics provide consistent illumination from 9V to 33V DC, protecting the light from voltage spikes and low battery conditions.
-
Ultra-Low Power Consumption: Draws less than 2 Watts (approx. 0.17A @ 12V), making it an ideal choice for sailors and powerboaters looking to minimize battery drain during long night passages.
-
Completely Maintenance-Free: With no filaments to break and no bulbs to change, this LED lamp is designed to last the life of your vessel under normal operating conditions.
What's In The Box
-
(1) Hella Marine NaviLED PRO Stern Lamp (Black Housing)
-
2.5 Meters of Tinned Marine Cable (Pre-wired and sealed)
-
Mounting Screws and Installation Guide
Technical Specifications
| Feature | Specification |
| Model Number | 017462101 |
| Light Type | Stern (135° Arc) |
| Minimum Visibility | 3 Nautical Miles |
| Voltage Range | 9V – 33V DC |
| Power Consumption | < 2.0 Watts |
| Protection Rating | IP67 (Completely Sealed) |
| Installation | Pre-wired with 2.5m Cable |
Ensure safe nighttime navigation with the Hella Marine NaviLED PRO 3nm Stern Navigation Lamp, delivering powerful LED illumination, low energy consumption, and rugged marine-grade durability.
Manufacturer : Hella Marine
Manufacturer Part No : 017462101
UPC : 9416325253426
