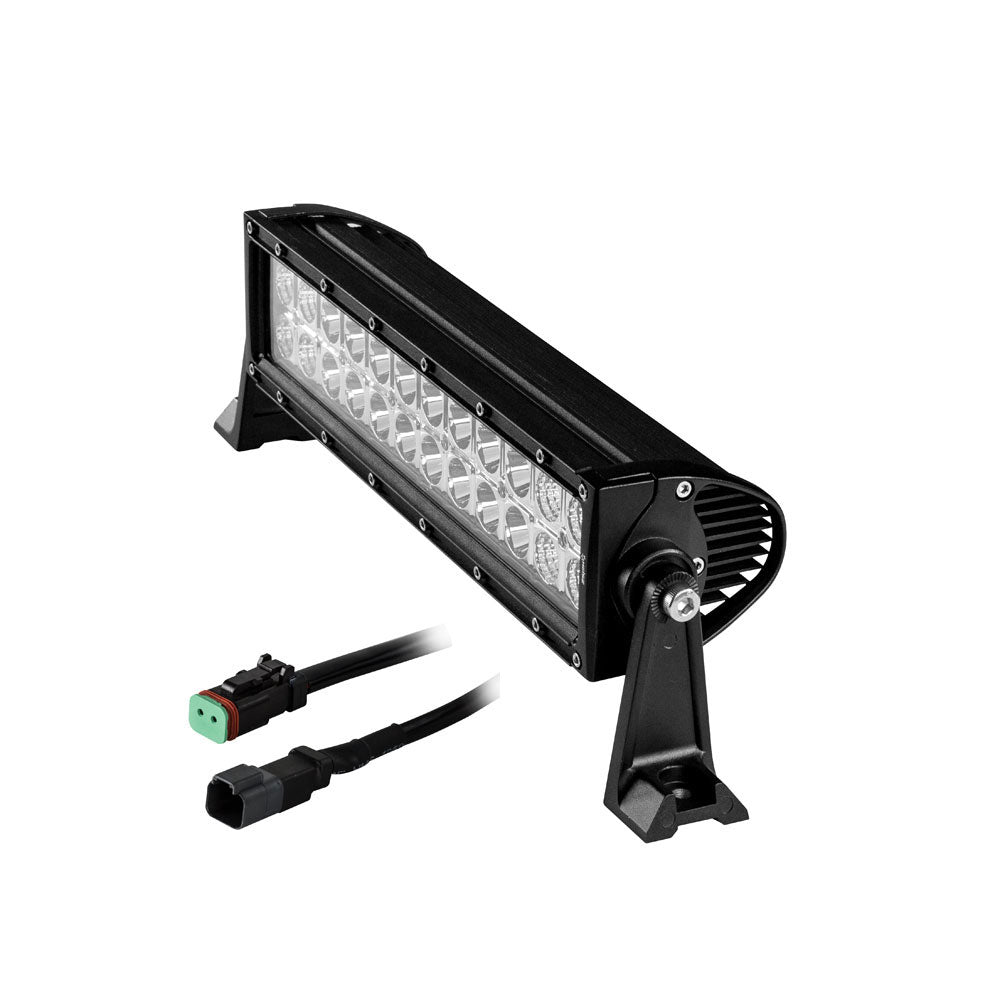

HEISE Dual Row LED Light Bar - 14" - HE-DR14
Manufacturer Part #: HE-DR14
Couldn't load pickup availability
Dual Row LED Light Bar - 14"
SPECS
- Input Voltage: 10-30V DC
- Power Consumption: 72W
- (24-3W CREE LEDs)
- Raw Lumens: 5760
- LUX @ 10M: 466
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Length of Bar without Mounting Brackets: 14"
- Hole Dimensions:
- Brackets turned inward - 13.50"
- Brackets turned outward - 14.75"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40°C to +60°C
- Current Consumption: 3.7 amps @ 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
HEISE Dual Row LED Light Bar - 14" - HE-DR14 is backordered and will ship as soon as it is back in stock.
