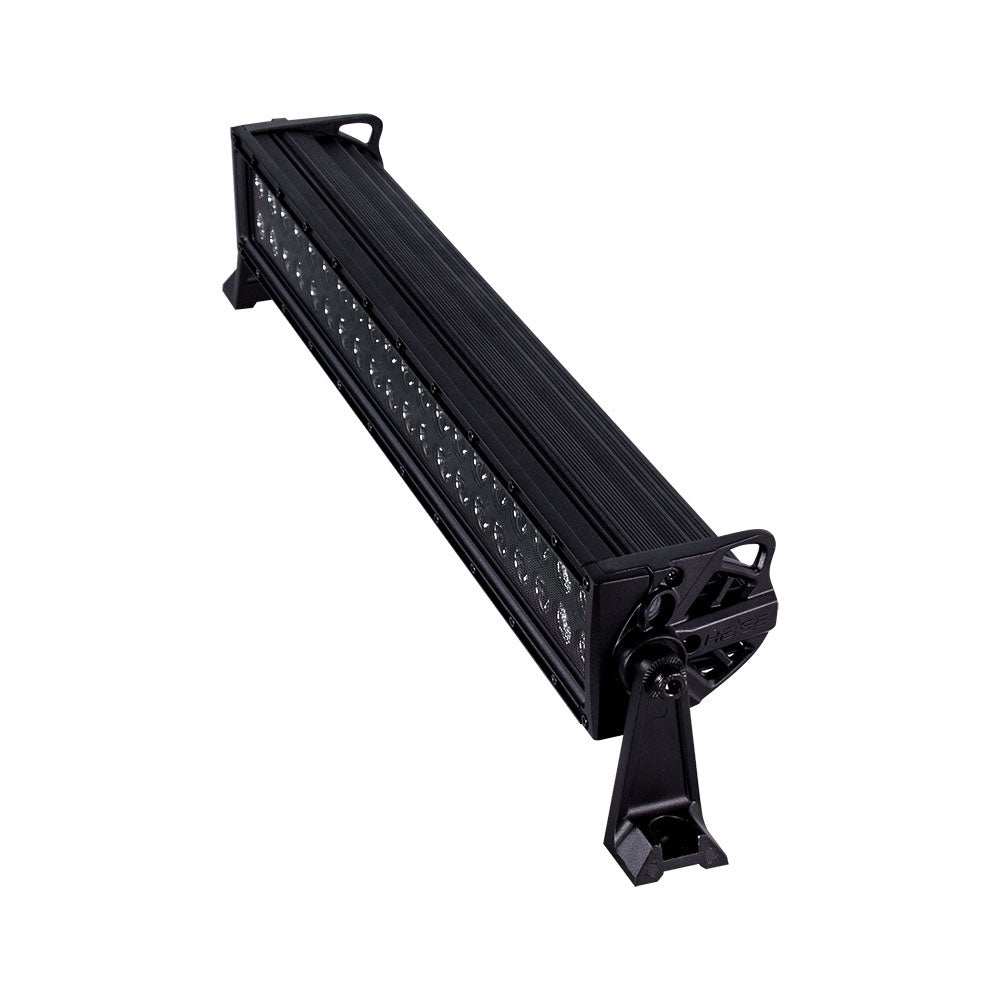

HEISE Dual Row Blackout LED Light Bar - 22" - HE-BDR22

$212.99 $427.99
SKU: 69732

Manufacturer Part #: HE-BDR22


Dual Row Blackout LED Light Bar - 22"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 120W (40–3W CREE LEDs)
  • Raw Lumens: 9600
  • LUX @ 10M: 655
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Die–cast Aluminum Housing
  • Housing Color: Black
  • Membrane: Gore
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Hole Dimensions:
  • Brackets turned inward – 21.3125"
  • Brackets turned outward – 23.75"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 6.3 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
