What are the main features of the Harken 40 Self-Tailing Radial Winch?

The Harken 40 Self-Tailing Radial Winch features an all-chrome construction, a 2-speed gear system, and a self-tailing mechanism that allows for easy single-person operation. Its design maximizes grip and reduces line wear through diagonal ribs on the drum.

How does the Harken 40 improve sailing performance?

The Harken 40 enhances sailing performance by providing reliable, smooth, and powerful winching capabilities with its dual-speed gearing, making sail trimming and raising easier and more efficient for crew members.

What size and type of lines can the Harken 40 accommodate?

The Harken 40 is compatible with lines ranging from 8mm to 12mm (5/16in to 1/2in), making it suitable for a variety of sailing lines and ensuring secure grip and operation.

How should I maintain the Harken 40 to ensure its longevity?

Regular cleaning and inspection of the winch, especially the gripping surface and gears, will help maintain optimal performance. Since it's all-chrome, wipe it down to prevent corrosion and keep it looking new for years of reliable use.

What are the main features of the Harken 40 Self-Tailing Radial All-Chrome Winch?

The Harken 40 Self-Tailing Radial All-Chrome Winch features a durable all-chrome construction, a self-tailing mechanism for easy sail trim, and a two-speed design with optimized gripping power through diagonal ribs. Its design helps reduce line wear while providing reliable performance for sailing needs.

How do I choose the right line size for the Harken 40 winch?

The Harken 40 winch is compatible with line sizes ranging from 8mm (5/16 inch) to 12mm (1/2 inch), making it suitable for various sailing applications. Ensure your line falls within this range for optimal performance and safety.

Popular right now
Lots of people have looked at this recently

Harken 40 Self-Tailing Radial All-Chrome Winch - 2 Speed - 40.2STCCC

Name: Harken 40 Self-Tailing Radial All-Chrome Winch - 2 Speed - 40.2STCCC
Brand: Harken
SKU: 93988
Price: 1402.99 USD
Availability: OutOfStock

$1,402.99 ~~$2,547.00~~

SKU: 93988

Manufacturer Part #: 40.2STCCC

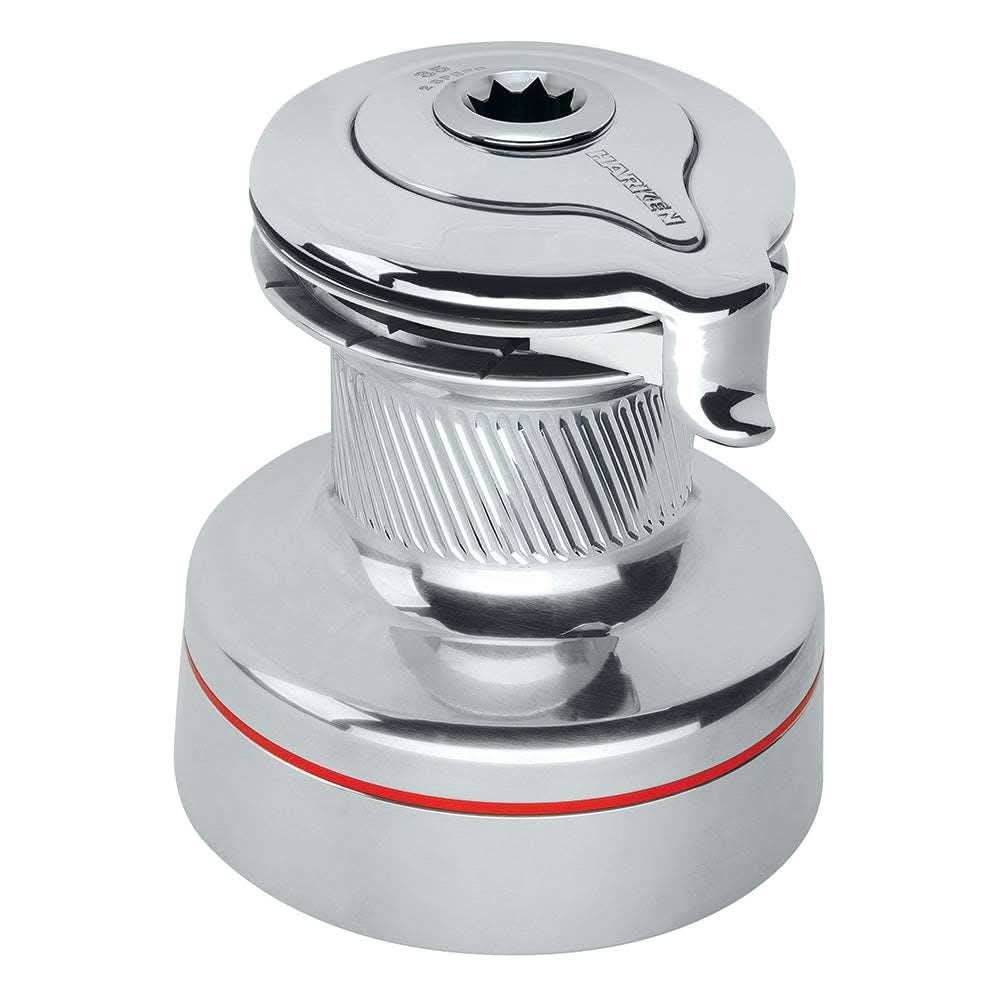

Harken 40 Self‑Tailing Radial All‑Chrome Winch – 2 Speed – 40.2STCCC

The Harken 40 Self‑Tailing Radial All‑Chrome Winch – 2 Speed (Model 40.2STCCC) is a premium sailing winch engineered for performance, durability, and smooth handling on cruising and performance sailboats. Made from all‑chrome plated materials, this winch combines classic looks with rugged marine resilience, making it ideal for halyards, sheets, and other high‑load lines where reliable power and corrosion resistance are essential.

Product Overview

Whether you’re trimming sails on a cruising yacht or setting up for offshore passages, the Harken 40 two‑speed self‑tailing winch delivers mechanical advantage, smooth operation, and excellent rope grip thanks to its radial drum design. The self‑tailing arms make single‑handed trimming easier by holding the line securely, while the two‑speed gearing lets you choose between fast line take‑up and powerful load control.

Technical Specifications

General

Model: 40.2STCCC
Type: Self‑tailing sailing winch (manual)
Configuration: Two‑speed radial winch
Material: All‑chrome plated for superior corrosion resistance and classic aesthetics

Performance

Gear Ratios:
- 1st Speed: 2.13:1
- 2nd Speed: 6.28:1
Power Ratios:
- 1st Speed: ~13.50:1
- 2nd Speed: ~39.90:1
  These ratios give you a balance of fast line retrieval and strong hauling power.

Dimensions

Drum Diameter: 80 mm (3‑1/8″)
Base Diameter: 157 mm (6‑3/16″)
Height: 175 mm (6‑7/8″)
Line Entry Height: 82 mm (3‑1/4″)
Fastener Circle: 123 mm (4‑7/8″)
Number of Fasteners: 5

Line Capacity

Min Line Ø: 8 mm (5/16″)
Max Line Ø: 12 mm (1/2″)

Weight

Approx: 6.2 kg (13.7 lb) — heavier than aluminum versions due to all‑chrome construction.

The Harken 40 Self-Tailing Radial All-Chrome Winch (40.2STCCC) is a premium, high-performance manual winch designed for sailors who want a blend of classic aesthetics and modern line-handling technology. The all-chrome finish provides a high-polish look with the dependable low-friction power of Harken's advanced gearing.

Key Features & Performance

Radial Gripping Surface: The drum features diagonal ribs rather than abrasive materials, which maximizes gripping power while significantly reducing line wear.
Two-Speed Gearing: Offers a high-speed gear for fast trimming and a high-power gear for fine-tuning heavily loaded lines.
Self-Tailing Efficiency: The integrated self-tailing mechanism allows a single crew member to easily raise or trim sails without needing a second person to tail the line.
Durable Internals: Load-carrying gears and pins are made from 17-4PH stainless steel for superior strength and corrosion resistance.
Easy Maintenance: The snap-fit design allows the winch to be disassembled and serviced on deck without the risk of losing small parts.

In the Box

As a professional-grade marine component, this winch typically includes:

Winch Assembly: The complete pre-assembled 40.2STCCC winch unit.
Installation Manual: Detailed instructions for mounting and initial lubrication.
Exploded View Diagram: A reference guide for future maintenance and ordering spare parts.

Note: Mounting hardware (bolts) and winch handles are not included in the standard box, as bolt length depends on your specific deck thickness.

Ideal For

Cruising yachts and performance sailboats
Halyards, sheets, and control lines
Sailors wanting traditional chrome aesthetics with high functionality
Deck installations where corrosion resistance and durability are priorities

Manufacturer : Harken
Manufacturer Part No : 40.2STCCC
