Icom IP-M60 Hybrid LTE Plus Marine VHF Radio for Maritime and Land Communication - IPM60 12

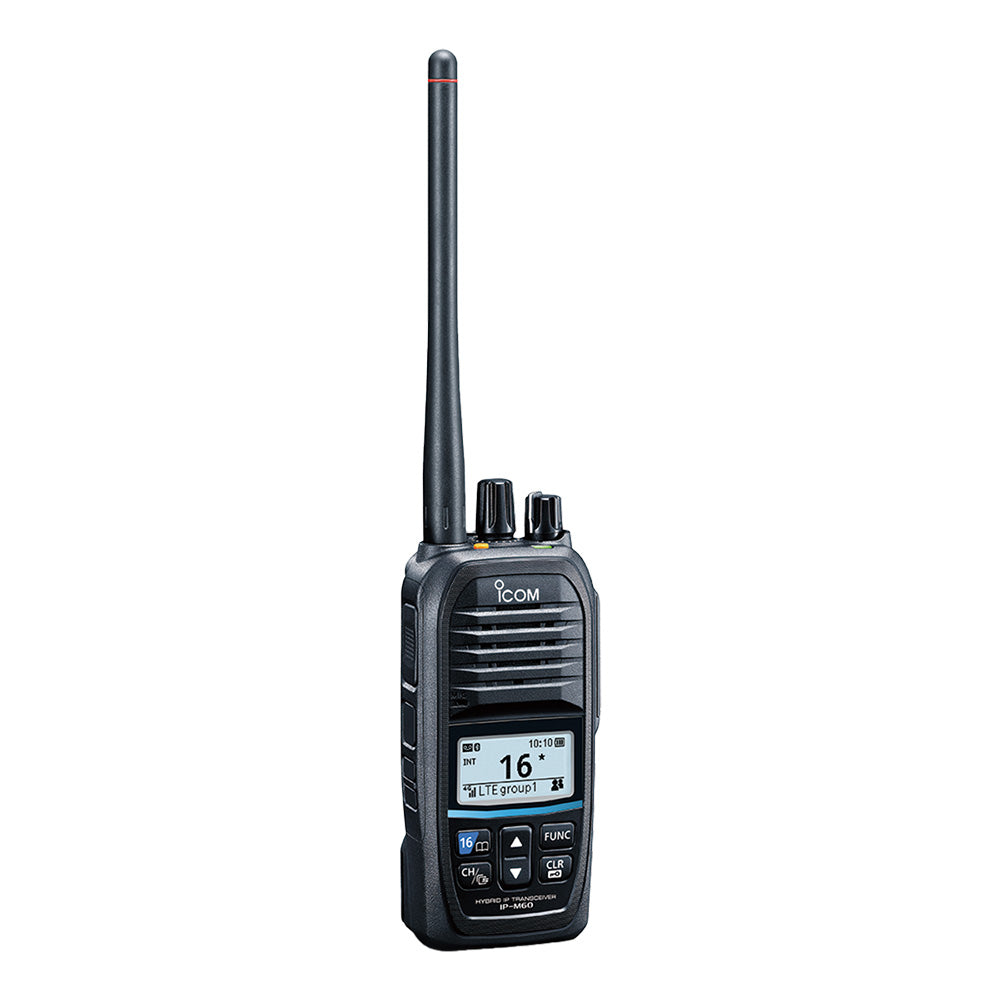

IP-M60 Hybrid LTE Plus Marine VHF Radio

Supports Communication at Sea on Land

The IP-M60 is the worlds first hybrid IP radio, combining two communication modes in one device: VHF marine and LTE. It functions as a marine VHF handheld mobile radio - widely used for maritime safety - and as a land-based LTE cellular radio for long-distance communication within cellular coverage areas.

The IP-M60 is ideal for use offshore, in ports, rivers, and canals where both maritime and land-based communication are needed. Its especially useful for rescue boats coordinating with search-and-rescue agencies, or during events like yacht races that require communication across multiple networks.

Cellular (LTE) Mode

In Cellular mode, communication takes place over the carriers LTE (or 3G) network, allowing calls anywhere within coverage. Simultaneous TalkListen enables full-duplex communication, so users can talk and listen at the same timejust like a phone call.

Marine Mode

This mode operates as a VHF marine radio, offering the same core functions and performance as traditional models like the Icom IC-M25. VHF marine communication is essential for ensuring maritime safety between vessels and coastal stations.

Cellular (LTE) + Marine Mode

Cellular and Marine modes can be used simultaneously (simultaneous reception is possible, and audio is MIXED.) PTT buttons for Main and Sub-mode make it possible to select the communication mode assigned to each with one touch. The communication mode can be selected quickly without having to switch modes. Simultaneous transmission on both channels is possible by pressing the PTT buttons for the Main and Submode at the same time.

Four Sub-Modes - Automatically Select Transmission Mode

Cellular + Marine Mode offers four sub-modes: Cellular Main, Marine Main, Adaptive PTT with Cellular Main, and Adaptive PTT with Marine Main. Below are examples of Cellular Main and Adaptive PTT with Cellular Main modes. The same settings can be swapped between Marine and LTE modes.

Cellular Main Mode

In the Cellular Main mode, the IP-M60 typically stands by in Cellular mode and initiates calls to cellular groups by pushing the Main PTT button. However, if a call is received on a marine channel, the radio temporarily switches to the Marine mode to respond on the marine channel.

Adaptive PTT with Cellular Main Mode

In this mode, the radio remains in the Cellular mode by default and initiates calls to cellular groups when the Main PTT button is pressed. As the operator moves to a preprogrammed marine area (GPS point), the radio automatically shifts to the Marine mode and transmits on a marine channel.

Relay Mode Transfers Received Audio to Another Mode

Relay Mode transfers received audio between the marine and IP radio groups. When operating in this mode, the IP-M60 automatically forwards incoming voice signals without playing them through the speaker.

*The Relay function may be prohibited in some countries.

Bluetooth Technology Enables Wireless Operation

The built-in Bluetooth unit provides a wireless connection between the IP-M60 and an optional Bluetooth headset. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation.

1500 mW Speaker Output, Provide Clear Loud Audio

Icoms custom high-power capacity speaker delivers a loud 1500 mW audio output with advanced acoustic sound clarity for noisy environments.

MIL-STD-810 IP67 Specifications

The IP-M60 is tested to U.S. Military standard environmental tests and dust-tight and waterproof rating of IP67*. It can be used with peace of mind on decks exposed to rain or splashing water, or in dusty conditions such as during ship repairs.

*1 meter (3 feet) under water for 30 minutes.

AquaQuake Draining Functions

Icoms unique AquaQuake function emits a buzzing sound, shedding water from the speaker grill. The IP-M60 provides clear sound even if it gets wet from rain or waves.

Emergency Call Functions*

Simply by pushing the Emergency button, an emergency call can be made with an audible warning to a pre-defined destination. In addition to pressing the Emergency button, the Emergency call can be triggered by the Man Down, Lone Worker, and Motion/Stationary functions.

*Emergency call functions work in the Cellular mode.

Status Function Posts the Current Status

Current Status information, such as Break, Working, and Meeting can be posted and referenced from other radios. In addition, predefined short messages (up to 32 characters) can be sent to the talkgroup.

Vibration Alert Function Notifies You of an Incoming Call

The Vibration Alert function notifies the user that a call or text message has been received with a strong vibration. This function can be configured for individual calls, group calls, all calls, or only when receiving text data, depending on how it is used.

Last Four Minutes Recording*

The IP-M60 has a recording and playback function, so that if you miss something, you can listen to it again immediately.

*Maximum recording: 4 minutes or 10 recordings

Dedicated Channel 16 Button

Channel 16 is the international Distress, Emergency, and Calling channel. Push the Channel 16 button to monitor the channel.

Dualwatch Tri-Watch Functions

Dualwatch and Tri-watch functions allow you to monitor Channel 16 and another working channel simultaneously. This is especially useful in scenarios like yacht races, where race announcements are made on one channel while Channel 16 must still be monitored for safety.

Features:

• Noise-canceling function reduces background noise from the transmitting voice


• The Automatic Firmware Update and Provisioning function works through an LTE connection


• Priority call with a high-priority authority


• Dual SIM capability to install two SIM cards at the same time


• One Touch PTT function keeps transmitting while you are talking


• Address book for storing talkgroup IDs


• Favorite channel scan, Priority channel scan, and Auto Scan Start functions


• Weather channel receiver with a Weather Alert function*

*Depending on the transceiver version.

*1 According to Icom research as of February 2024.

*2 Coverage area depends on the LTE network provider.

The Icom IP-M60 is a groundbreaking hybrid radio device designed to seamlessly integrate maritime VHF communication with land-based LTE cellular networks. It is ideal for offshore operations, ports, rivers, and canals where reliable communication across different environments is critical. This versatile radio combines the durability and core functions of a traditional marine VHF radio with the extended range and convenience of LTE connectivity, making it an essential tool for rescue operations, yacht races, and port management. Its dual-mode capability ensures that users can maintain constant contact regardless of location, enhancing safety and operational efficiency.

In LTE mode, the IP-M60 enables full-duplex, simultaneous talk and listen functions over cellular networks, providing clear voice communication within coverage areas. The marine mode operates as a conventional VHF radio, supporting essential safety features and vessel-to-coast communication. With the ability to use cellular and marine modes simultaneously, operators can switch between channels effortlessly using dedicated PTT buttons, facilitating quick responses during critical situations. The device also supports four sub-modes that automatically select the appropriate transmission method based on location and operational context, such as Adaptive PTT modes that shift between cellular and marine channels as the user moves through predefined GPS zones.

Advanced features include Bluetooth wireless operation with VOX for hands-free communication, a high-power 1500 mW speaker for loud and clear audio even in noisy environments, and rugged MIL-STD-810 and IP67 ratings ensuring durability against dust, water, and harsh weather conditions. The AquaQuake draining function helps shed water from the speaker grill, maintaining sound clarity after exposure to rain or splashes. Emergency call functions, including one-touch emergency alerts and support for critical safety protocols, enhance user confidence in life-threatening situations. Additional functionalities like last four minutes recording, dual watch, tri-watch, and priority calling make the IP-M60 a comprehensive communication solution for demanding maritime environments.

With a robust set of features tailored for safety, convenience, and reliability, the Icom IP-M60 Hybrid LTE Plus Marine VHF Radio stands out as a versatile tool for maritime professionals. Its capability to operate seamlessly across land and sea, combined with advanced communication technologies, ensures users stay connected in the most challenging conditions, making it an indispensable asset for naval, rescue, and recreational maritime activities.

Features:
* Supports simultaneous LTE cellular and marine VHF communication modes
* Full-duplex LTE mode with TalkListen function for clear calls over cellular networks
* Traditional VHF marine mode for reliable safety communication at sea
* Dual-mode operation with quick mode switching via dedicated PTT buttons
* Four sub-modes enabling automatic transmission mode selection based on location
* Bluetooth connectivity for wireless headset operation and VOX hands-free communication
* 1500 mW speaker output delivering loud, clear audio in noisy environments
* MIL-STD-810 environmental resistance and IP67 waterproof and dustproof rating for durability
* AquaQuake water shedding function maintains sound clarity after exposure to water
* One-touch emergency call button with audible warning for rapid alerting
* Support for relay mode transferring audio between marine and cellular channels
* Last four minutes recording and playback for review of missed communications
* Channel 16 dedicated button for emergency and distress monitoring
* Dualwatch and Tri-watch functions for simultaneous monitoring of multiple channels
* Priority call support with high-priority authority override
* Built-in GPS-based adaptive transmission modes for seamless operation across environments
* Weather channel reception with optional alert functions (dependent on version)
* Address book for storing talkgroup IDs and favorite channels
* Firmware update via LTE connection for easy maintenance
