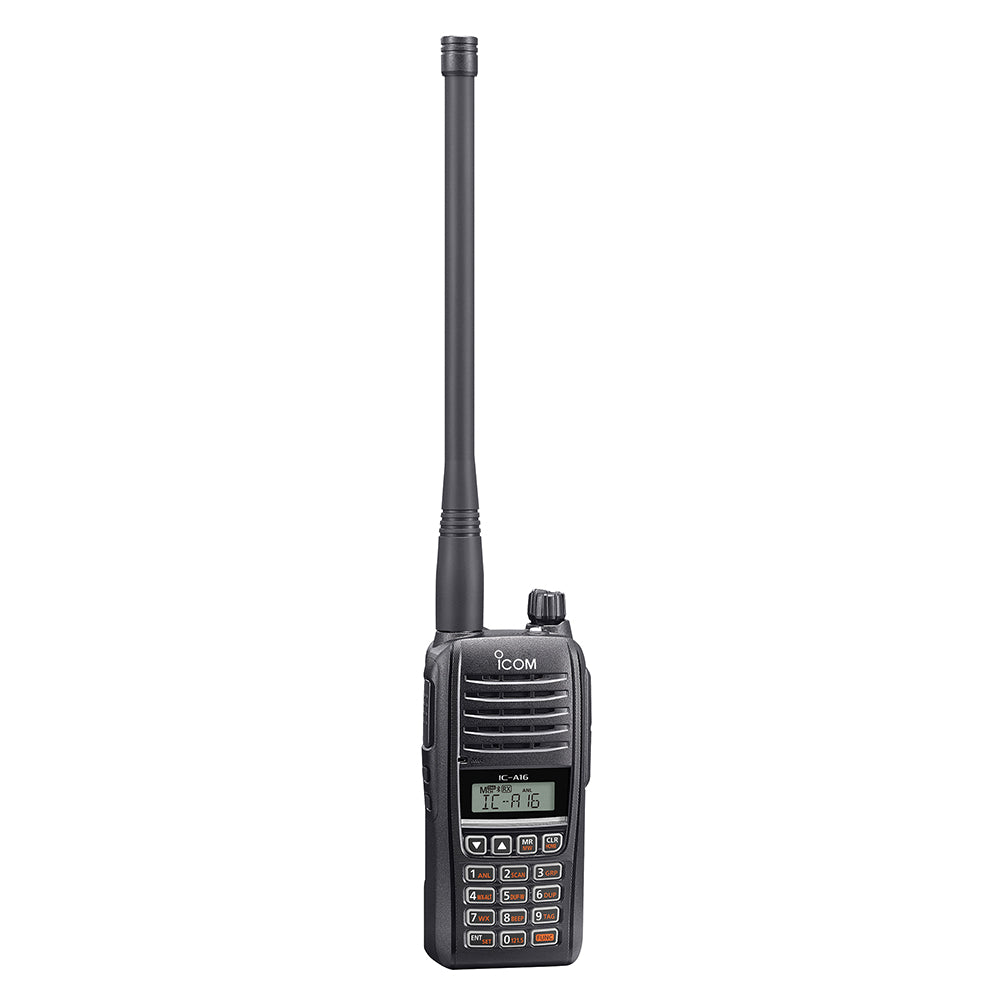

Icom A16 Entry Level Air Band Handheld Radio with 1500 mW Audio and Bluetooth - A16 61

A16 Entry Level Air Band Handheld Radio

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio

Loud, Durable, Easy to Use

The A16 is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower. Users appreciate the A16s compact, waterproof design for one-hand operation for working on the flight line, using it for backup in any aircraft, or for use by ground crew. Its 2400mAh Li-ion battery lasts over 17 hours, and the radio includes a nice sit-in rapid charger.

Features:

• 8.33 kHz and 25 kHz Channel Spacing


• 1500 mW Loud Audio Provides Clear Communications


• 6 W (PEP) /1.8 W (Carrier) RF Output Power


• Built-in Bluetooth for Hands-Free Operation*


• *Bluetooth operation depends on the transceiver version.


• Large Capacity Battery Pack Provides 17 hours* of Long Battery Life


• *With BP-280. Typical operation with TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF)


• Compact, Waterproof, Durable Body (IP67/54 and MIL-STD-810-G)


• LCD and Key Backlight for Night-Time Operation


• Compatible* with Third-Party Aviation Headsets


• *Optional headset adapter, OPC-2401 required.


• Auto Noise Limiter (ANL) for noise reduction


• Side Tone function


• Internal VOX capability


• 200 memory channels with names up to 8 characters


• BNC type antenna connector

Specifications:

• Frequency range: TX: 118.000136.99166 MHz, RX: 108.000136.99166 MHz, RX (Weather): 161.650163.275 MHz


• Number of memory channels: 200 channels


• Channel spacing: 8.33 kHz/25 kHz


• Type of emission: 6K00A3E, 5K60A3E, 16K0G3E (Weather)


• Power supply requirement: 7.2 V DC


• Current drain (approximate): TX High 1.8 A


• RX: Stand-by 65 mA typical


• Max. audio: 650 mA


• Antenna impedance: 50 (BNC type antenna connector)


• Operating temperature range: 10C to +60C, 14F to +140F


• Dimensions (WHD): (Projections not included) 52.2 111.8 34.1 mm, 2.1 4.4 1.3 in (with BP-280)


• Weight (approximate): 257 g, 9.1 oz (with BP-280)

The Icom A16 is a reliable and compact handheld radio designed for aviation professionals and student pilots. With a frequency range covering 108 to 136.99166 MHz for standard airband and weather channels up to 163.275 MHz, this portable device ensures clear communication during all phases of flight. Its 8.33 and 25 kHz channel spacing options allow for versatile operation suitable for various air traffic environments. The powerful 1500 mW audio output guarantees loud, clear audio, making it easier to communicate in noisy cockpit or ground settings. Designed with durability in mind, the A16 features an IP67/54 waterproof rating and MIL-STD-810-G compliance, ensuring it withstands harsh conditions and rough handling. The device*s ergonomic design allows for one-handed operation, ideal for pilots, ground crew, or maintenance personnel working on the flight line. Its long-lasting 2400mAh Li-ion battery provides over 17 hours of continuous use, and is complemented by a sit-in rapid charger for quick recharging between flights or shifts. The A16 also offers advanced features such as built-in Bluetooth for hands-free operation (dependent on transceiver version), internal VOX capability, auto noise limiter, and side tone function, enhancing user convenience and communication clarity. With 200 memory channels, users can store and easily access frequently used frequencies, each labeled with up to 8 characters for quick identification. The inclusion of a BNC antenna connector ensures compatibility with a wide range of aviation antennas, optimizing radio performance. Whether used as a primary communication device or backup, the Icom A16 offers essential features in a durable, user-friendly package designed for aviation professionals and enthusiasts alike.

Features:
* 8.33 kHz and 25 kHz channel spacing for versatile communication
* 1500 mW loud audio for clear, loud sound in noisy environments
* 6 W (PEP) / 1.8 W (Carrier) RF output power for strong transmissions
* Built-in Bluetooth for hands-free operation*
* Large capacity 2400mAh Li-ion battery providing over 17 hours of use
* Compact, waterproof (IP67/54), and MIL-STD-810-G durable construction
* LCD and key backlight for easy night-time operation
* Compatible with third-party aviation headsets* (optional OPC-2401 headset adapter required)
* Auto noise limiter (ANL) for noise reduction
* Internal VOX functionality for voice-activated transmissions
* 200 programmable memory channels with customizable labels
* BNC type antenna connector for flexible antenna options
