Garmin GPSMAP 8610xsv Combo GPS and Fishfinder with 10-Inch Full HD Touchscreen - 010-02091-51
$1,912.99
$2,999.99
Unit price
/
Unavailable
SKU:
97054
Manufacturer Part #: 010-02091-51
Couldn't load pickup availability
Garmin GPSMAP 8610xsv 10" Chartplotter/Sonar Combo with Garmin Navionics+ | MPN: 010-02091-51

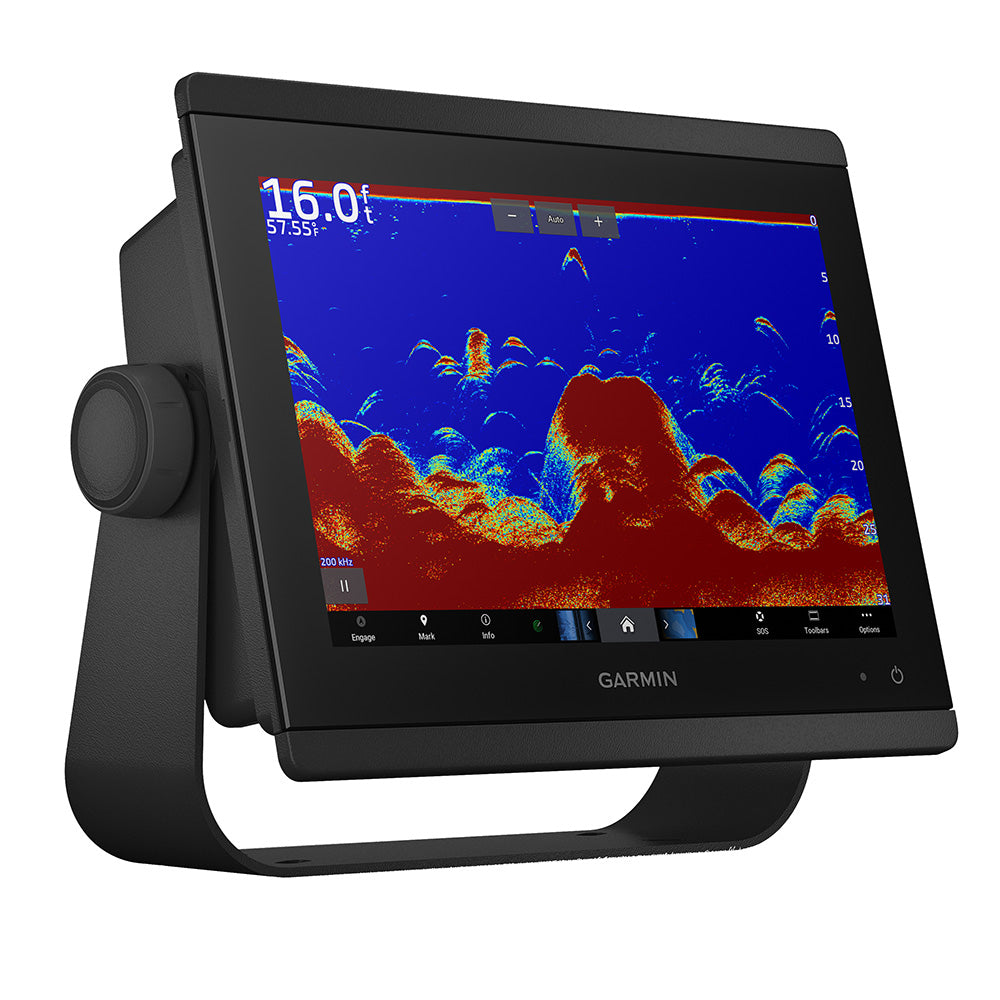

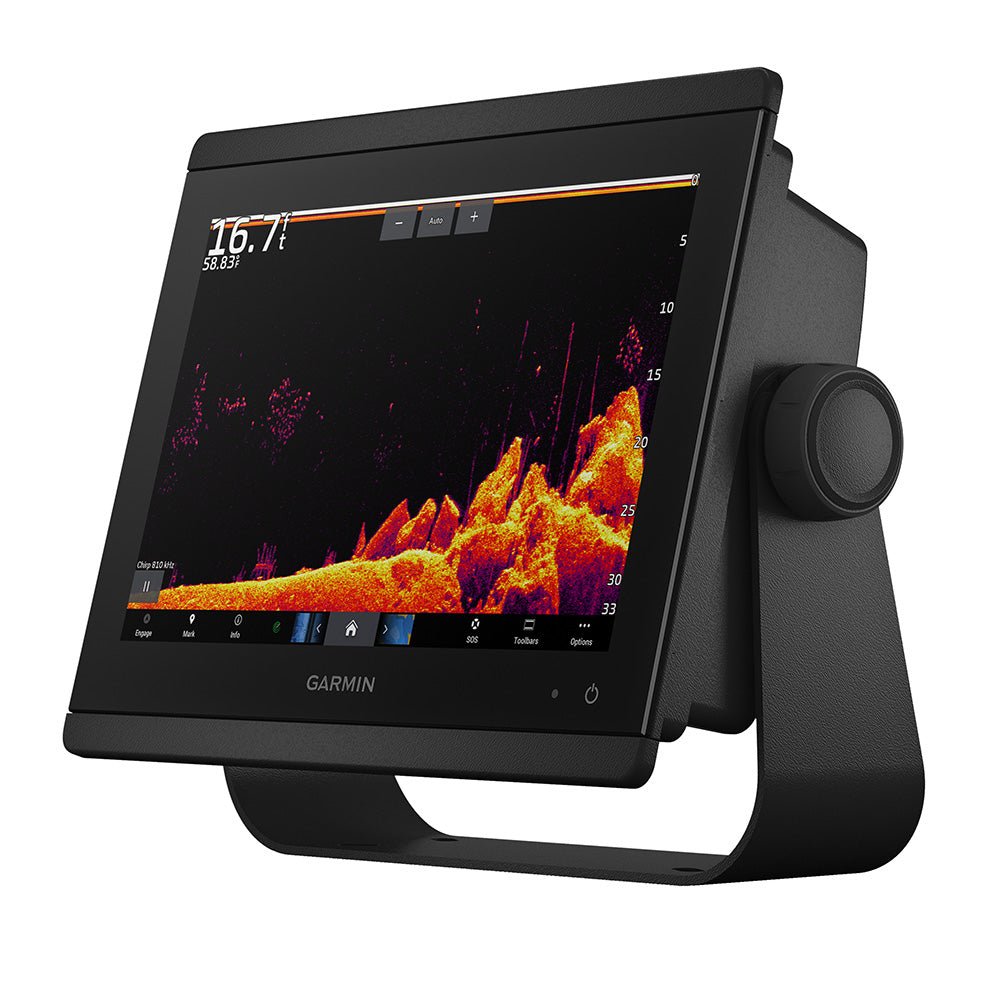

Command your helm with flagship MFD performance using the Garmin GPSMAP 8610xsv Chartplotter/Sonar Combo (Part Number: 010-02091-51). Engineered for serious anglers, cruisers, and sportfishers, this 10-inch multifunction display features a high-performance processor, razor-sharp Full HD IPS touchscreen display (1920 x 1200 WUXGA), and preloaded Garmin Navionics+™ inland and coastal charts for the U.S. and Canada.
The GPSMAP 8610xsv delivers built-in support for Garmin’s industry-leading sonar suite without requiring external black box modules. Enjoy built-in 1kW dual-channel traditional CHIRP, Ultra High-Definition (UHD) ClearVü, and UHD SideVü scanning sonars, as well as plug-and-play support for Panoptix™ and LiveScope™ live sonar systems (transducers sold separately). With seamless NMEA 2000® and Garmin Marine Network connectivity, you can easily tie together radar, autopilots, engines, cameras, and OneHelm™ third-party boat automation.
Key Features & Performance Advantages
-
Full HD IPS Touchscreen Display: Anti-glare 10" in-plane switching (IPS) display offers ultra-wide viewing angles and superior clarity, even when wearing polarized sunglasses.
-
Preloaded Garmin Navionics+™ Mapping: Includes detailed coastal and inland mapping for the U.S. and Canada with Auto Guidance+™ technology, 1-foot depth contours, and shallow water shading.
-

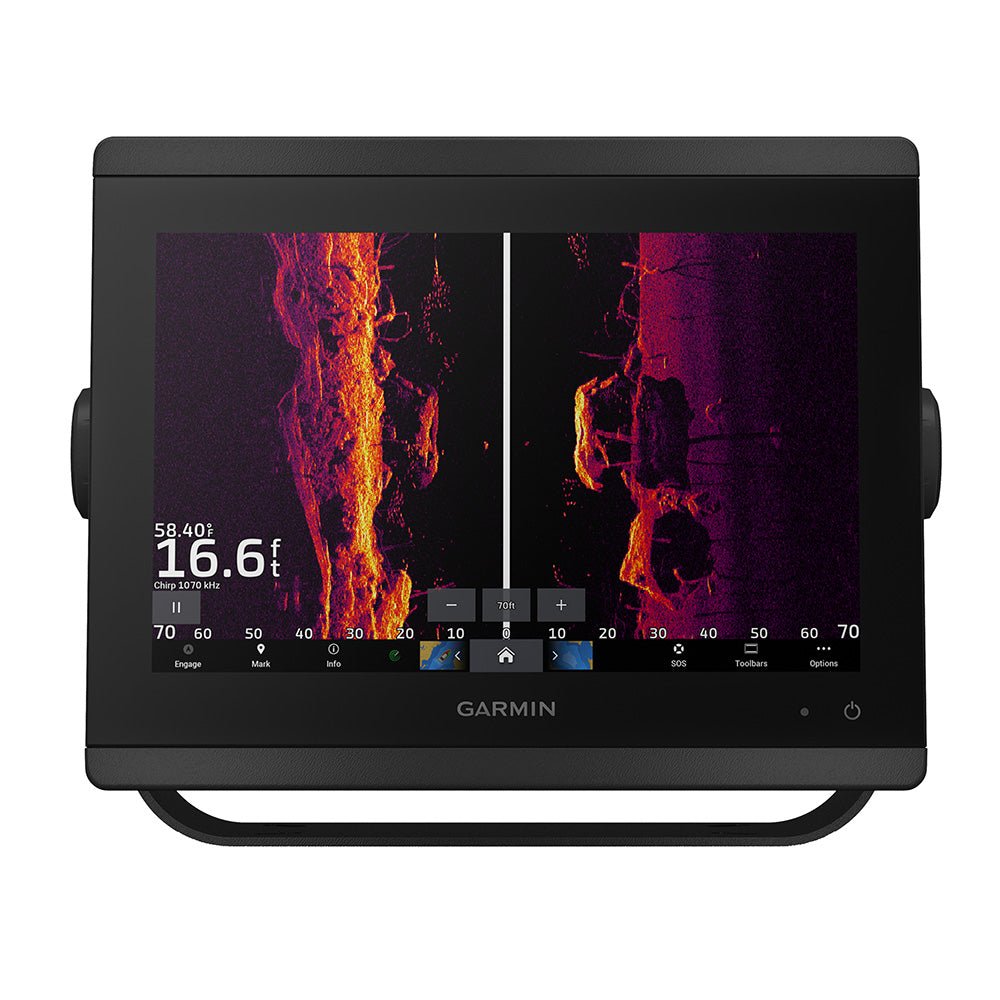

Built-in UHD & CHIRP Sonar: Features internal support for 1kW dual-channel traditional CHIRP, UHD ClearVü, and UHD SideVü scanning sonar without an external sounder module.
-
Panoptix™ & LiveScope™ Compatible: Direct LVS sonar port supports real-time live sonar transducers to track fish swimming in real time around structure.
-
Premium Glass Helm Aesthetics: Can be bail-mounted, flush-mounted, or flat-mounted edge-to-edge for a sleek, custom glass-helm dash design.
-
Full Network Integration: Dual Ethernet ports, NMEA 2000, Wi-Fi®, ANT® technology, and SmartCraft® Connect engine gateway compatibility ensure effortless system expansion.
-
SmartMode™ Station Controls: Offers one-touch preset access to critical layout configurations for docking, cruising, fishing, or anchoring.
Technical Specifications
| Specification | Details |
| Manufacturer | Garmin |
| Model / Part Number (MPN) | GPSMAP 8610xsv / 010-02091-51 |
| Display Size & Resolution | 10.0" Diagonal / Full HD WUXGA (1920 x 1200 Pixels) |
| Display Type | Anti-Glare IPS Touchscreen |
| Preloaded Maps | Garmin Navionics+™ (U.S. & Canada Coastal/Inland) |
| Sonar Frequencies | Traditional CHIRP (50/77/83/200 kHz), ClearVü/SideVü (260/455/800 kHz & UHD) |
| Transmit Power | 1 kW Traditional CHIRP / 500 W ClearVü & SideVü |
| Memory Storage | 2 Dual microSD™ Card Slots (Rear Panel) |

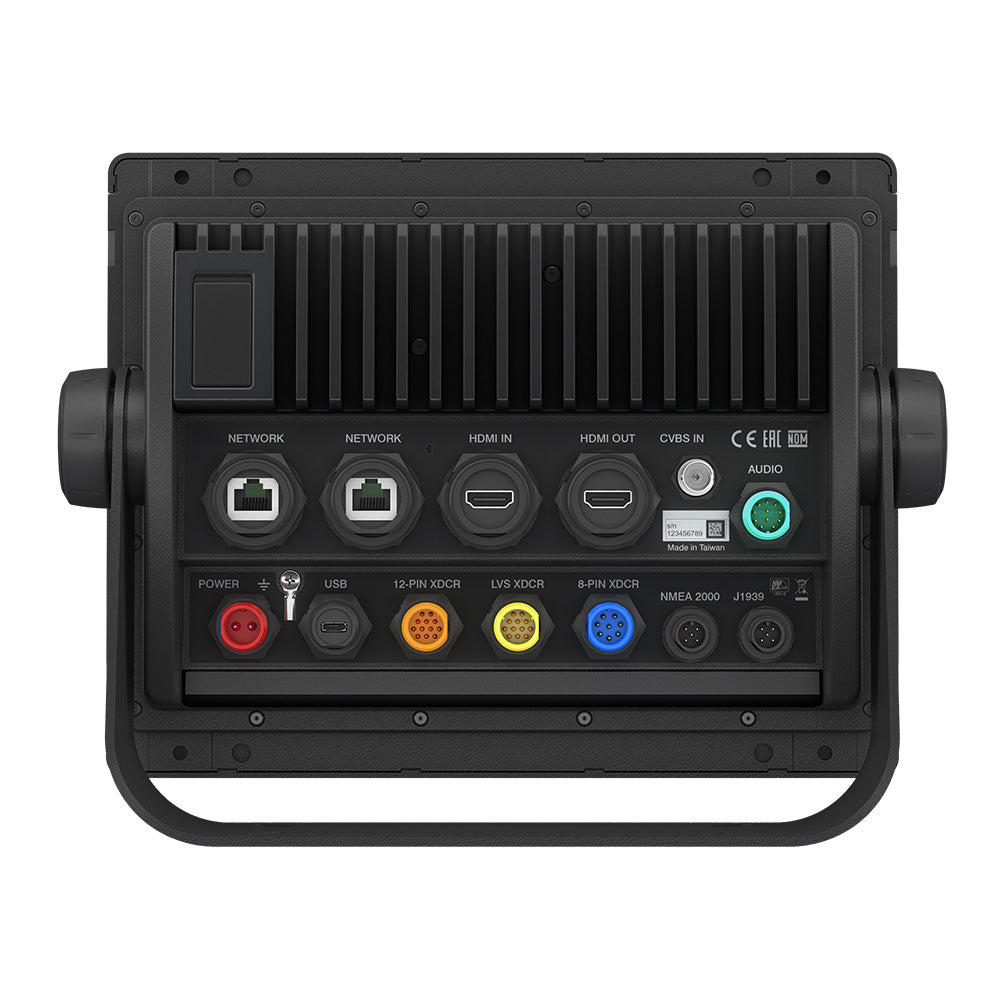

| Network Connections | 2x Garmin Marine Network Ports, 1x NMEA 2000, Wi-Fi, ANT, BNC Video In |
| Waterproof Rating | IPX6 & IPX7 Submersible |
| Dimensions (W x H x D) | 10.25" x 8.06" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm) |
| Weight | 5.2 lbs (2.4 kg) |
What Is Included in the Box?
-
(1) Garmin GPSMAP 8610xsv 10" Display (MPN: 010-02091-51)
-
(1) Power Cable Assembly
-
(1) NMEA 2000® Drop Cable (2 meters) & T-Connector
-
(1) Bail Mount Kit with Knobs
-
(1) Flush Mount Gasket & Hardware Kit
-
(1) Protective Sun Cover & Trim Piece Snap Covers
-
Documentation & User Manual
Frequently Asked Questions (FAQ)
Q: Do I need to buy an external sonar black box to use Ultra High-Definition (UHD) sonar?
A: No! The GPSMAP 8610xsv has built-in sounder processing for 1kW CHIRP as well as UHD ClearVü and SideVü. You only need to plug in a compatible transducer directly into the unit.
Q: Can I connect LiveScope directly to the GPSMAP 8610xsv?
A: Yes! The 8600xsv series includes a dedicated live sonar port on the back for direct connection to LiveScope LVS transducers or GLS 10 sonar modules.
Q: Are chart updates included with the preloaded Garmin Navionics+ mapping?
A: Yes, purchasing the 010-02091-51 includes a 1-year subscription for daily chart updates and downloadable premium content via the Garmin ActiveCaptain® smartphone app.
BRAND: Garmin
Manufacturer Part Number: 010-02091-51
Garmin GPSMAP 8610xsv Combo GPS and Fishfinder with 10-Inch Full HD Touchscreen - 010-02091-51 is backordered and will ship as soon as it is back in stock.
