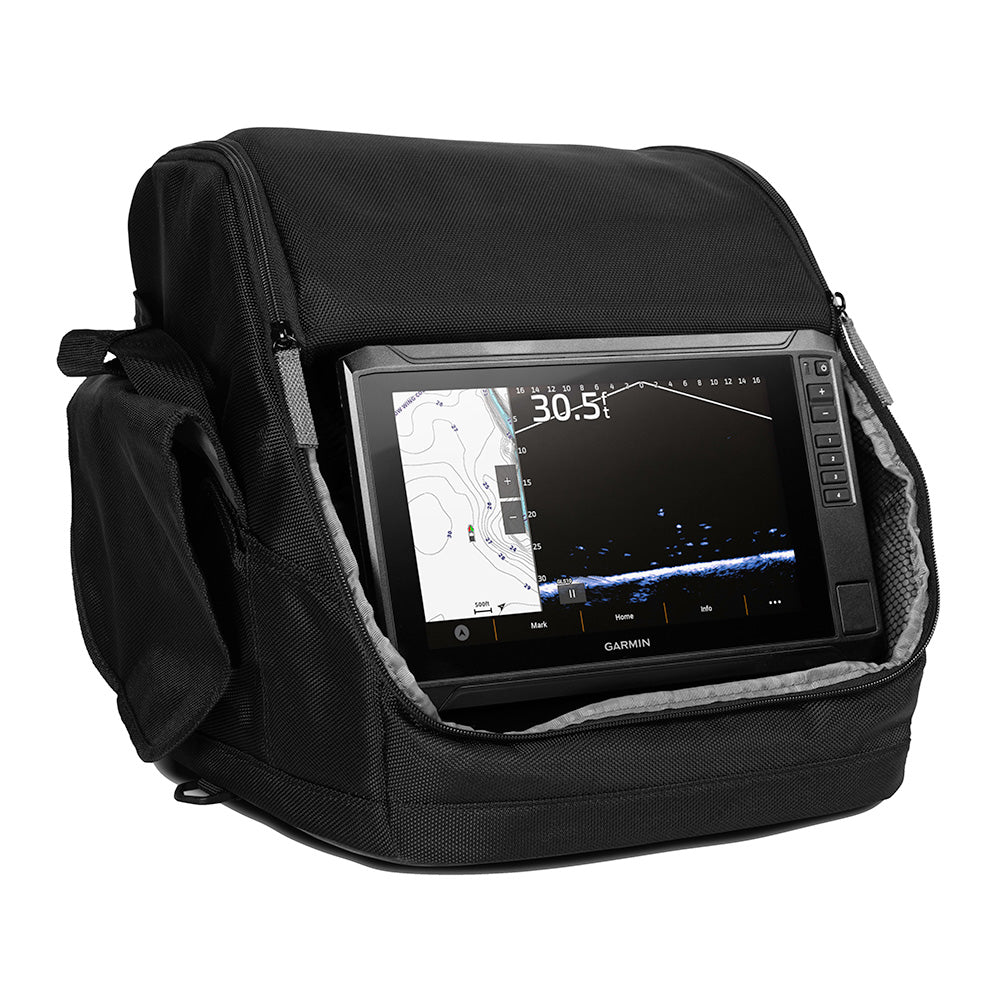

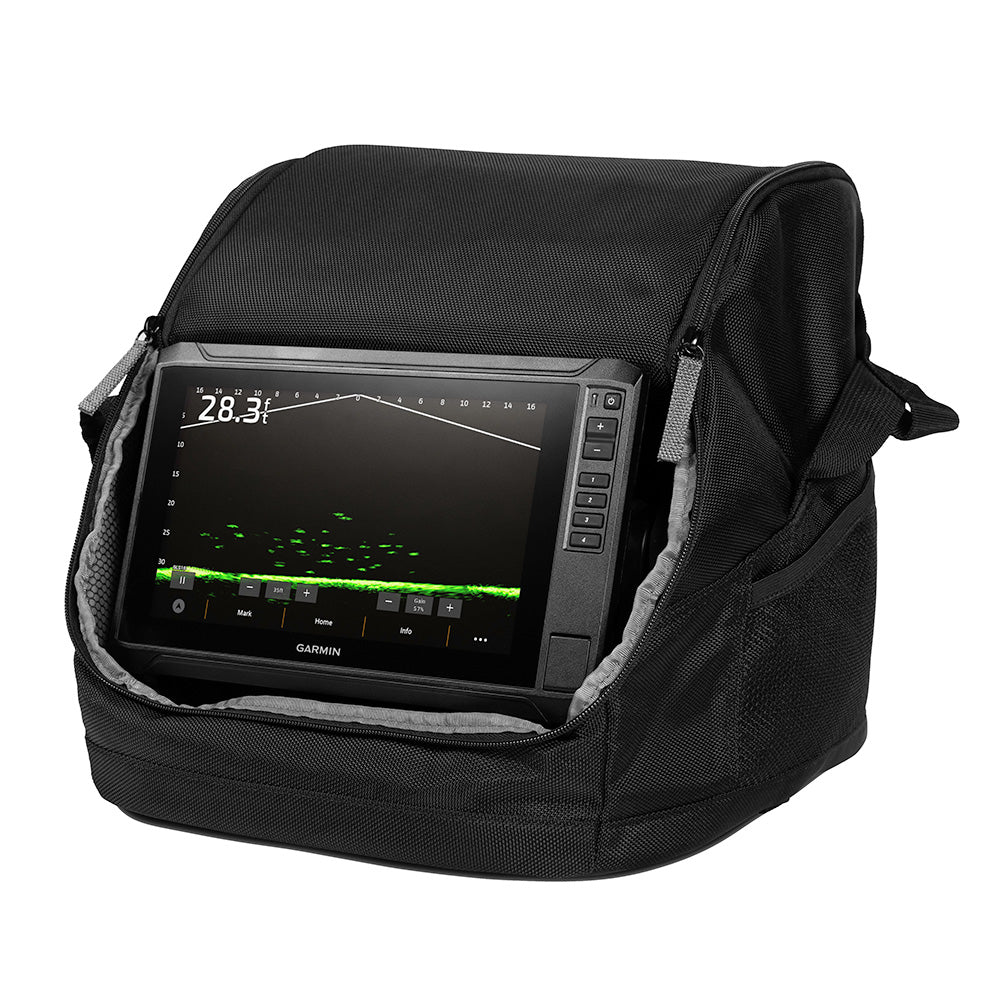

Garmin ECHOMAP UHD2 93SV LiveScope Plus Ice Fishing Bundle LI w/ECHOMAP UHD2 93sv, LiveScope Plus System & Lithium-ion Battery - 010-02688-35

Garmin ECHOMAP UHD2 93SV LiveScope Plus Ice Fishing Bundle LI w/ECHOMAP UHD2 93sv, LiveScope Plus System & Lithium-ion Battery

ECHOMAP UHD2 93SV LiveScope Plus Ice Fishing Bundle LI with ECHOMAP UHD2 93sv, LiveScope Plus System Lithium-ion Battery

Get improved resolution, reduced noise, clearer images, and better target separation with the LiveScope Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount, and a lightweight lithium battery.

Features:

• Get improved clarity, sensitivity, and Target Separation
• Scan surroundings with reduced noise and fewer sonar artifacts
• Use LiveScope forward mode so you know where to drill
• Use LiveScope down mode so you can keep an eye on your jig and the fish
• Fish longer with a 16.5AH lightweight lithium-ion battery
• Includes a rugged, portable carrying case
• LiveScope Forward sonar shows up to 200 all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
• LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig
• Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season

ECHOMAP UHD2 Combo

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with a keyed assist, allowing you to see up to 200 in any direction.

Two Modes One Transducer

LiveScope System offers two live-scanning sonar modes Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Lithium Battery

Fish even longer with a lightweight 16.5Ah lithium battery that wont weigh you down on the ice.

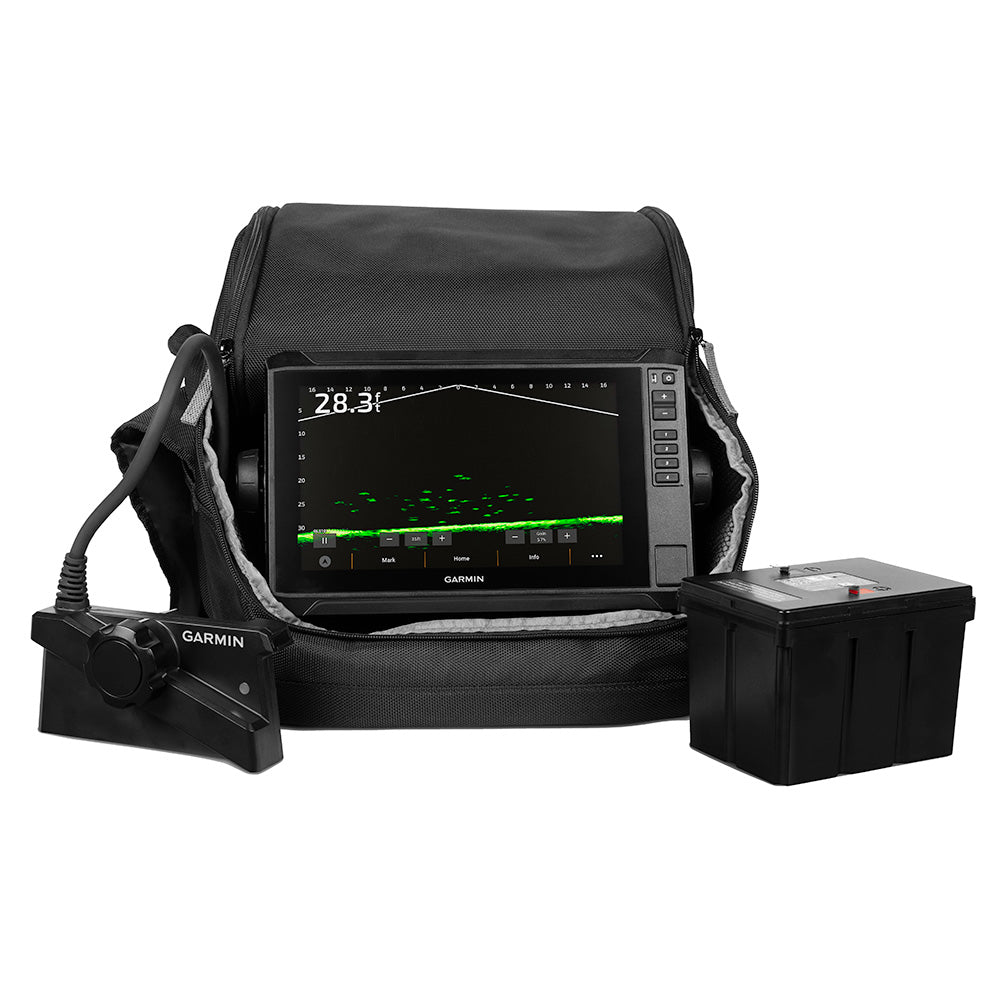

In the Box:

• ECHOMAP UHD2 chartplotter (version depends on mapping selected)
• LVS34-IF transducer
• GLS 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable
• Portable fishing bag with a handle
• Lithium-ion battery
• Battery charger
• Documentation

General Specifications:

• Dimensions: 13.8 x 12.2 x 13.0 in. / 35 x 31 x 33 cm
• Touchscreen: Yes
• Input: Touchscreen with Keyed Assist
• Display Size: 7.8 x 4.5, 9.0 in. / 19.8 x 11.5, 22.9 cm
• Display Resolution: 1024 x 600 pixels
• Display Type: WVGA, IPS
• Weight: 22.5 lbs / 10.2 kg
• Waterproof: IPX7

Maps Memory:

• Accepts Data Cards: 1 microSD card; 32 GB maximum size
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Ice Fishing Details:

• Battery Type, Size: Lithium-ion, 16.5Ah
• Bag Size: Extra Large (XL)
• Included Transducer: LiveScope Plus System with LVS34-IF
• Transducer Holding Feature: Pole mount

Sensors:

• Has Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Beidou: Yes
• Supports Waas: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland Coastal: Yes (see Additional)
• Garmin Navionics+ (Inland): Yes (see Additional)

Optional Map Support:

• Garmin Navionics+: Yes
• Garmin Navionics+ VIision+: Yes
• TOPO: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• ActiveCaptain Compatible: Yes

Electrical Features:

• Power Input: 9 to 18 Vdc

Sonar Features Specifications:

• Displays Sonar: Yes
• Power Output: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearV: Built-in 260/455/800/1000/1200 kHz
• SideV: Built-in 260/455/800/1000/1200 kHz
• Panoptix Sonar: Yes
• Livescope; Yes

Connections:

• NMEA 2000 Ports: Yes
• Garmin Marine Network Ports: 1
• 12-Pin Transducer Ports: 1
• Bluetooth Pairing: Yes
• Ant+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

Additional:

• Garmin Navionics+ Inland Coastal: 95sv Canada
• Garmin Navionics + (Inland): 95sv U.S. Lakes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

BRAND: Garmin
Manufacturer Part Number: 010-02688-35
