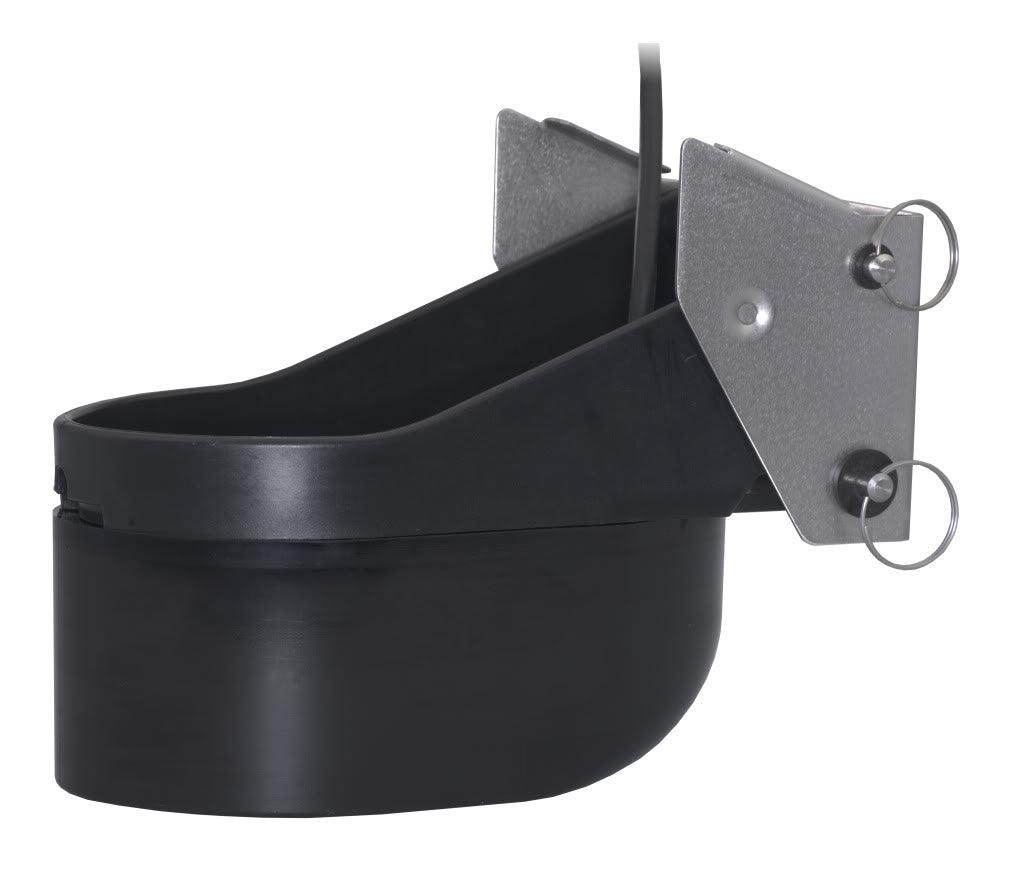

Airmar TM260 Transom Mount 1kW Blue Connector for Simrad & Lowrance - TM260-BL
Manufacturer Part #: TM260-BL
TM260 Transom Mount 1kW Blue Connector for Simrad & Lowrance
Fits: Navico units with 7-Pin Blue Connector
Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Features:
- Transom-Mount, Urethane Housing
- Depth and Temperature
- Maximum Depth Range: 50 kHz— 529 m to 735 m (1,800’ to 2,500’), 200 kHz—206 m to 294 m (700’ to 1,000’)
- Boat Size: 8 m to 12 m (25’ to 40’)
- Top-of-the-line narrow-beam transom-mount
- Designed for bottom fishing
- Wide 19° beam at 50 kHz
- Narrow 6° beam at 200 kHz
- Interfaces to any 600 W or 1 kW sounder
- Cable length: 10m (33 ft)
- Kick-up assembly locks in the “up” position and will not damage the transom
- Accommodates transom angles between 3° and 21°
Fishing Applications:
- Blue-water trolling using 50 kHz
- Deep-water bottom and wreck fishing up to 800 m (2,625')
Manufacturer : Airmar
Manufacturer Part No : TM260-BL
Airmar TM260 Transom Mount 1kW Blue Connector for Simrad & Lowrance - TM260-BL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Airmar TM260 Transom Mount 1kW Blue Connector for Simrad & Lowr...
Reviews (0)
Reviews (0)
Accessories
Accessories
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White - 300
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black - 302
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Clear - 301
Sudbury Elastometric 3 oz (89ml) Sealant Tube - White - 320
Sudbury Elastometric 3 oz (89ml) Sealant Tube - Clear - 321
Sudbury Elastometric 3 oz (89ml) Sealant Tube - Black - 322
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - White - 1030
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Black - 1031
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Mahogany - 1032
BoatLIFE Life-Calk Cartridge - White - 1033
BoatLIFE Life-Calk Cartridge - Black - 1034
BoatLIFE Life-Calk Cartridge - Mahogany - 1035
BoatLIFE Life-Calk Cartridge - Teak Brown - 1036
BoatLIFE Liquid Life-Calk Sealant Tube - 2.8 FL. Oz. - White - 1052
BoatLIFE Liquid Life-Calk Sealant Tube - 2.8 FL. Oz. - Black - 1055
BoatLIFE LifeSeal Sealant Cartridge - Clear - 1169
BoatLIFE LifeSeal Sealant Cartridge - White - 1170
BoatLIFE LifeSeal Sealant Cartridge - Black - 1171
BoatLIFE LifeSeal Sealant Cartridge - Aluminum - 1172
BoatLIFE LifeSeal Sealant Cartridge - Cameo - 1173
BoatLIFE LifeSeal Sealant Tube 2.8 FL. Oz - Clear - 1160
BoatLIFE LifeSeal Sealant Tube 2.8 FL. Oz - White - 1161
BoatLIFE LifeSeal Sealant Tube 2.8 FL. Oz - Black - 1162

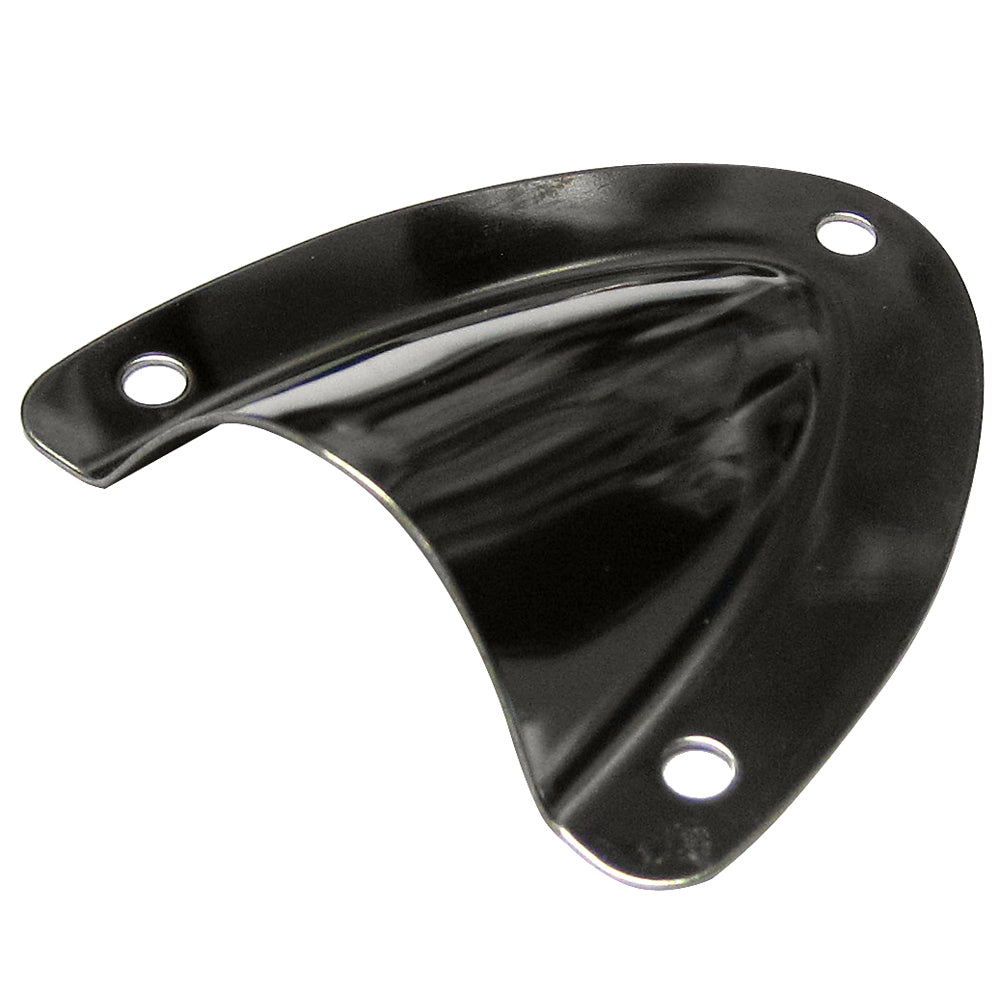

Sea-Dog Stainless Steel Midget Vent - Medium - 331370-1
