Xintex Propane Fume Detector w/Plastic Sensor & Solenoid Valve - Black Bezel Display - P-1BS-R
Manufacturer Part #: P-1BS-R
Couldn't load pickup availability
Xintex Propane Fume Detector with Plastic Sensor & Solenoid Valve – Black Bezel Display (P-1BS-R)
The Xintex Propane Fume Detector (P-1BS-R) is a reliable marine safety system designed to detect propane gas leaks and automatically shut off the gas supply to prevent dangerous conditions onboard. Ideal for boats, RVs, and other enclosed environments that use propane appliances, this system helps protect passengers and equipment from potential gas hazards.
This system includes a plastic propane gas sensor, control display with black bezel, and an integrated solenoid valve. When propane fumes are detected, the system immediately triggers an audible and visual alarm and automatically closes the solenoid valve to stop the flow of propane gas.
The compact black bezel display panel mounts easily at the helm or inside the cabin, providing continuous monitoring and clear status indicators. Built specifically for marine environments, the Xintex propane detection system offers dependable performance and peace of mind for onboard propane safety.
Key Features & Benefits
-
Automatic Gas Shut-Off: In an alarm state, the system automatically closes the solenoid valve, cutting off the fuel source immediately.
-

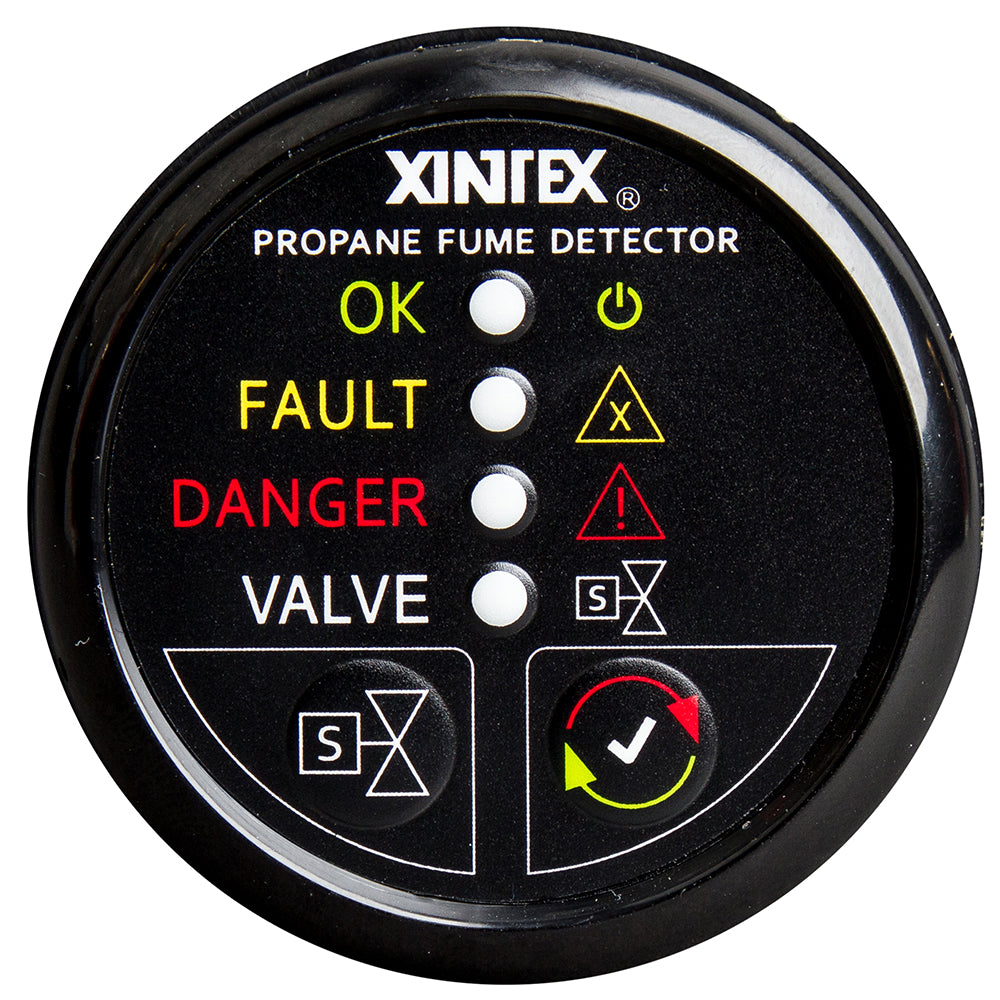

Comprehensive Monitoring: Features a 3-LED display: Green (Operational), Yellow (System Fault/Faulty Sensor), and Red (Alarm/Fume Build-up).
-
Marine-Grade Durability: The sensor is housed in a corrosion-resistant plastic casing designed to withstand harsh saltwater environments and RV chemicals.
-
Audible Warning: Equipped with a 68 dBA internal alarm that triggers simultaneously with the red LED and valve closure.
-
Wide Operating Range: Engineered to function in extreme temperatures ranging from -40°F to 185°F, ensuring reliability in all climates.
What’s In The Box
-
(1) Xintex Propane Detector Display Unit (Black Bezel)
-
(1) Plastic Propane/LPG Fuel Sensor (FS-T01-S)
-
(1) Solenoid Shut-Off Valve (1/4" FNPT x 1/4" MNPT)
-
(1) 20-Foot Sensor Extension Cable
-
(1) 3/8" x 1/4" Brass Adapter
-
Installation Manual and Mounting Hardware
Technical Specifications
| Feature | Specification |
| Model Number | P-1BS-R (Retail Packaged) |
| Voltage | 9-30V DC |
| Current Draw | 55mA (Nominal) / 725mA (Maximum) |
| Bezel Color | Black |
| Display Size | 2-3/16" Round (Standard Gauge Cutout) |
| Alarm Point | 18-20% of the LEL |
| Protection | Reverse Polarity Protected |
Improve onboard safety with the Xintex Propane Fume Detector with Solenoid Valve, a dependable system that detects propane leaks early and automatically shuts off gas flow to protect your vessel and crew.
