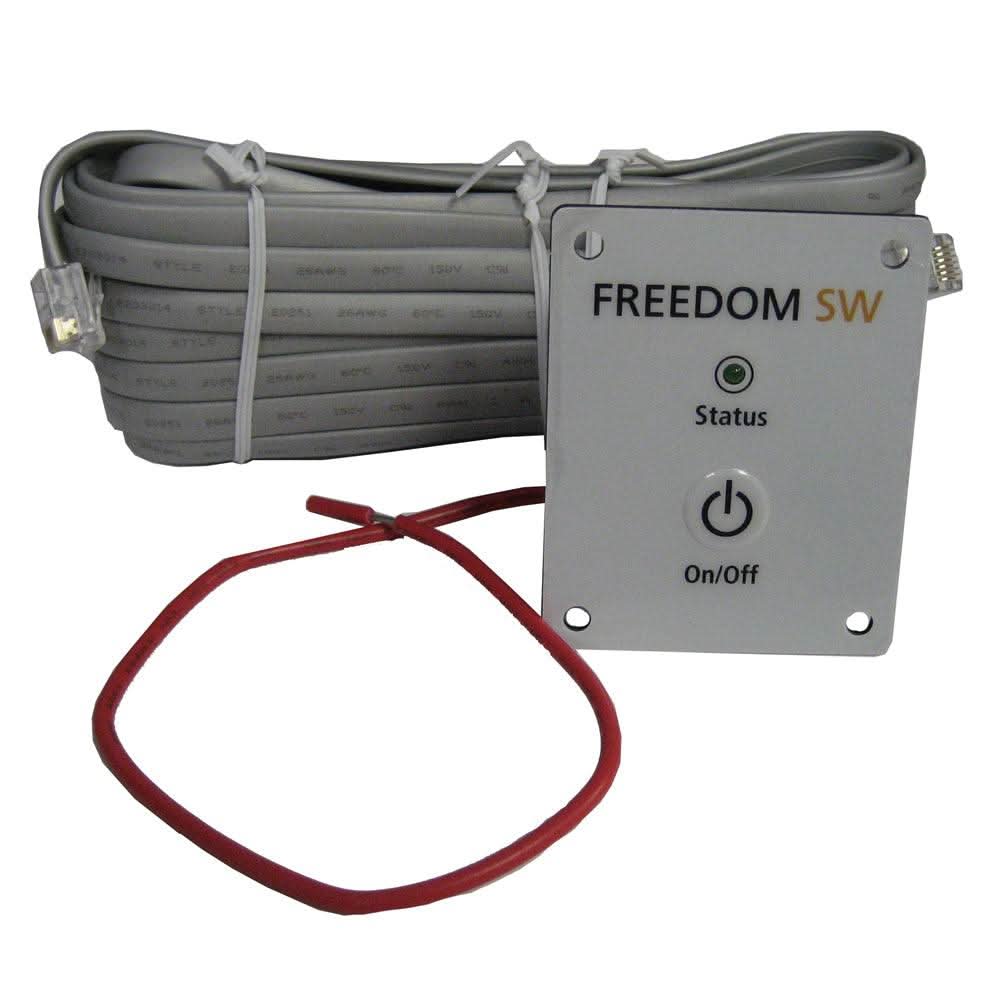

Xantrex Remote On/Off Switch f/Freedom SW Series - 808-9002

Xantrex Remote On/Off Switch for Freedom SW Series – 808-9002

The Xantrex Remote On/Off Switch (808-9002) provides simple and convenient remote power control for Xantrex Freedom SW series inverter/chargers. Designed for marine, RV, and mobile power installations, this compact switch allows users to turn the inverter system on or off from a remote location without accessing the main unit.

Ideal for installations where the inverter is mounted in a hard-to-reach compartment, the remote switch enhances system convenience and usability. The included communication cable allows flexible mounting at helm stations, control panels, or vehicle interiors, making daily power management easier and more efficient.

Reliable and easy to install, the Xantrex Remote On/Off Switch is an essential accessory for improving accessibility and control of Freedom SW inverter/charger systems.

🔧 Technical Specifications

General

• Product Type: Remote on/off control switch

• Compatibility: Xantrex Freedom SW series inverter/chargers

• Function: Remote inverter power control

• Mounting Type: Panel or surface mount

Electrical

• Switch Type: Low-voltage control switch

• Connection: Dedicated remote port on Freedom SW units

Installation

• Application: Marine, RV, and mobile power systems

• Cable: Included communication cable

• Installation Type: Plug-and-play

Physical

• Design: Compact, low-profile switch

• Color: Black

Certifications

• Designed for use with UL-listed Xantrex Freedom SW systems

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• Remote on/off control for Xantrex Freedom SW inverter/chargers

• Allows convenient system control from a remote location

• Ideal for marine, RV, and mobile power installations

• Compact design for clean panel mounting

• Simple plug-and-play installation

• Genuine Xantrex accessory

Features:

• The Freedom Remote Panel (remote panel) can be connected to the Freedom SW Inverter via the Remote port on the AC/DC side panel to turn the Freedom SW Inverter ON or OFF from a more convenient location

• The remote panel also has the ability to enable/disable the Ignition Lockout feature of the Freedom SW Inverter

• When this feature is enabled, the Freedom SW Inverter will shutdown if the vehicle's ignition is not engaged (not in ACC position) to prevent unnecessary battery drain

• Includes a 25 foot (7.6-m) communications cable

• Choose a location that is dry, free from corrosive or explosive fumes, and appropriate for installing an electronic device
