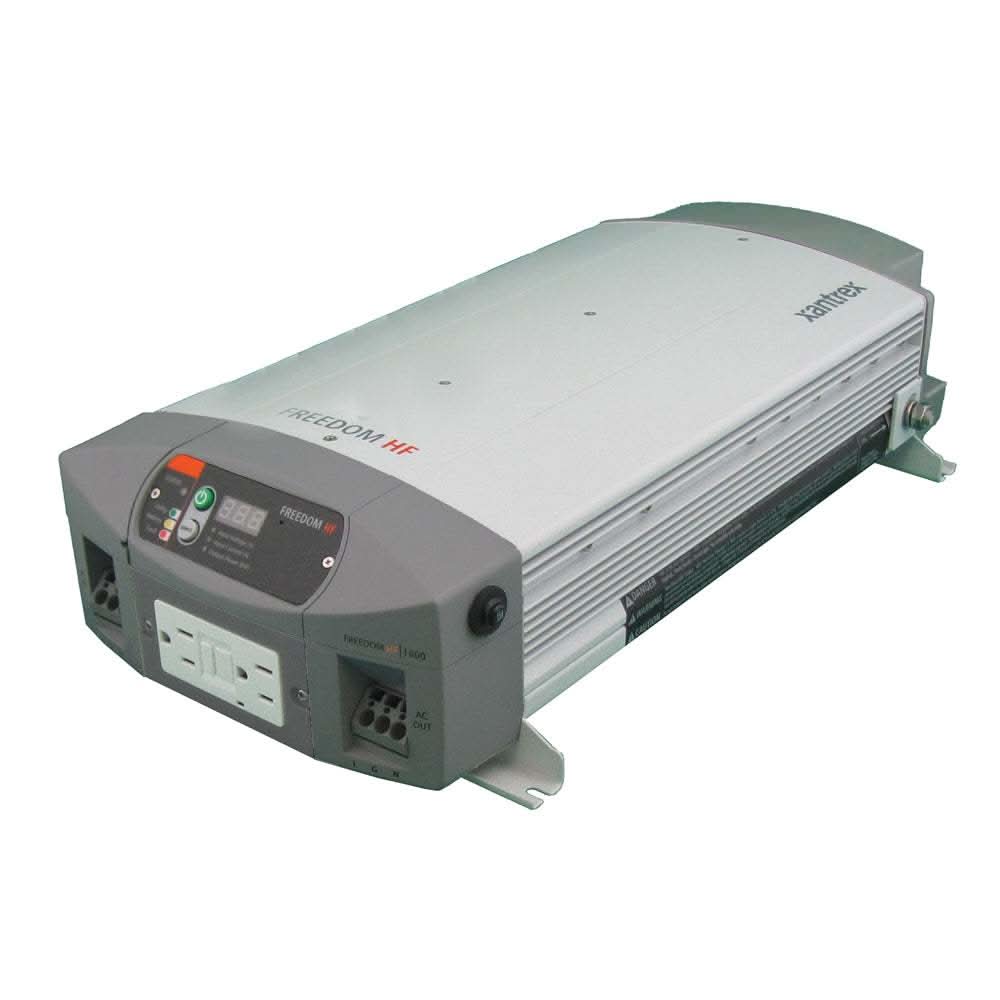

Xantrex Freedom HF 1800 Inverter/Charger - 806-1840

The Xantrex Freedom HF 1800 (806-1840) is a compact, all-in-one power solution that combines an 1800-watt inverter, a 40-amp battery charger, and an automatic transfer switch. It is specifically designed for the demanding environments of RVs, boats, and heavy-duty trucks, offering a reliable way to run small appliances and entertainment systems while on the move.

Product Overview

The Xantrex Freedom HF 1800 Inverter/Charger is one of the smallest and lightest units in its class, making it ideal for installations where space is at a premium. It utilizes modified sine wave technology to power devices like microwaves, TVs, and DVD players. Its "New Generation" design focuses on ease of installation with quick-connect AC terminals that eliminate the need for traditional strain relief clamps.

• Integrated Power System: Combines a powerful inverter and a 3-stage 40A charger in a single box to manage your battery bank and AC needs simultaneously.

• Ignition Lockout: A key safety feature that disables the inverter when the vehicle's ignition is off, preventing accidental battery drain.

• Automatic Transfer Switch: Features a 30-amp relay that seamlessly switches between battery power and shore power (utility power) when you plug in at a dock or campsite.

• Remote Monitoring: Includes a detachable digital display with a 25-foot cable, allowing you to monitor system status and battery voltage from a convenient location.

Technical Specifications

The 806-1840 model is engineered for 12V DC systems and standard 120V AC output.

• Continuous Power: 1800 Watts

• Surge Power: 3600 Watts (Peak)

• Charger Output: 40 Amps DC

• Waveform: Modified Sine Wave

• AC Output: Dual GFCI outlets and/or Hardwire capability

• Battery Compatibility: Flooded, Gel, and AGM settings

• Dimensions: 4.2" H x 9.5" W x 18.0" L

• Weight: 12.8 lbs

• Certifications: ETL certified to UL458 (with marine supplement support)

Pros and Cons

Based on user feedback and technical reviews, here is what to consider:

Pros:

• Compact Design: Significantly smaller and lighter than older transformer-based models.

• Easy Installation: The same-side AC/DC terminals and quick-connect blocks simplify the wiring process.

• Value: One of the most affordable high-output inverter/charger combinations on the market.

Cons:

• Waveform Limits: As a modified sine wave inverter, it may not be compatible with some highly sensitive electronics or "smart" appliances that require pure sine wave power.

• Charger Reliability: Some users have reported that the charging component can be sensitive to voltage fluctuations over long-term use.
