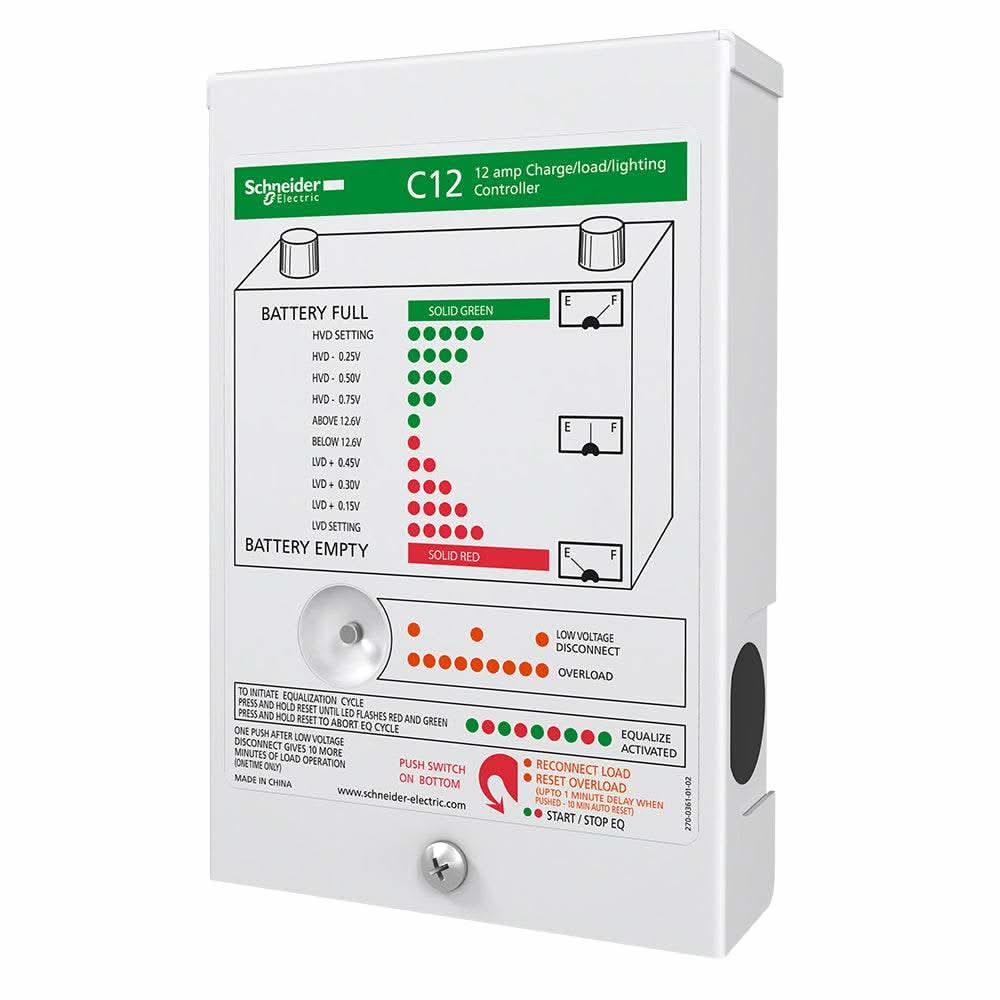

Xantrex C-Series Solar Charge Controller – 12A – C12

The Xantrex C-Series C12 is a compact and reliable 12-amp PWM solar charge controller designed for small off-grid solar systems, RVs, marine installations, and portable solar setups. It safely regulates solar charging to protect batteries from overcharging while maximizing battery life and system efficiency.

Featuring three-stage battery charging and support for flooded, AGM, and gel batteries, the C12 delivers dependable performance in simple solar applications. Like other controllers in the Xantrex C-Series, it can be configured as a solar charge controller, load controller, or DC diversion (dump load) controller, offering flexibility for a wide range of low-power renewable energy systems.

With its durable aluminum enclosure, passive cooling design, and proven reliability, the Xantrex C12 is an excellent choice for small cabins, boats, RVs, and backup solar power systems.

🔧 Technical Specifications

Electrical

• Controller Type: PWM (Pulse Width Modulation)

• Maximum Charge Current: 12 amps

• System Voltage: 12 / 24 / 48 VDC (auto-select)

• Maximum PV Open-Circuit Voltage: 125 VDC

• Battery Voltage Range: 8 – 60 VDC

• Charging Stages: Bulk, Absorption, Float

• Maximum Load Current (Load Mode): 12 amps

Battery Compatibility

• Flooded Lead-Acid

• AGM

• Gel

• Configurable via jumper settings

Functional Modes

• Solar charge controller

• Load controller

• DC diversion (dump load) controller

Protection & Safety

• Over-current protection

• Reverse polarity protection

• Over-temperature protection

• Short-circuit protection

• Passive cooling (no fan)

Environmental

• Operating Temperature Range: -40°F to 122°F (-40°C to 50°C)

• Humidity: 95% non-condensing

Physical

• Dimensions (H × W × D): Approx. 6.0″ × 3.8″ × 2.8″

• Weight: Approx. 1.3 lb (0.6 kg)

• Mounting: Vertical wall mount

• Enclosure: Powder-coated aluminum

Certifications

• UL Listed

• CSA Certified

• FCC Class B

Warranty

• 5-Year Manufacturer Warranty

Features:

• Improve battery life with pulse width modulated (PWM) multi-stage temperature compensated charging
  • Two-year standard warranty
  • PV charge and load controller
  • Automatic lighting controller
  • Electronic detection of short-circuit, overload, over-temperature and reverse polarity conditions
  • Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure
  • Field adjustable voltage and battery set point
  • Automatically disconnects from the battery at night
  • Compatible with negative ground and ungrounded systems
