Guest 2303A Diesel Power Battery Heavy-Duty Switch - 2303A

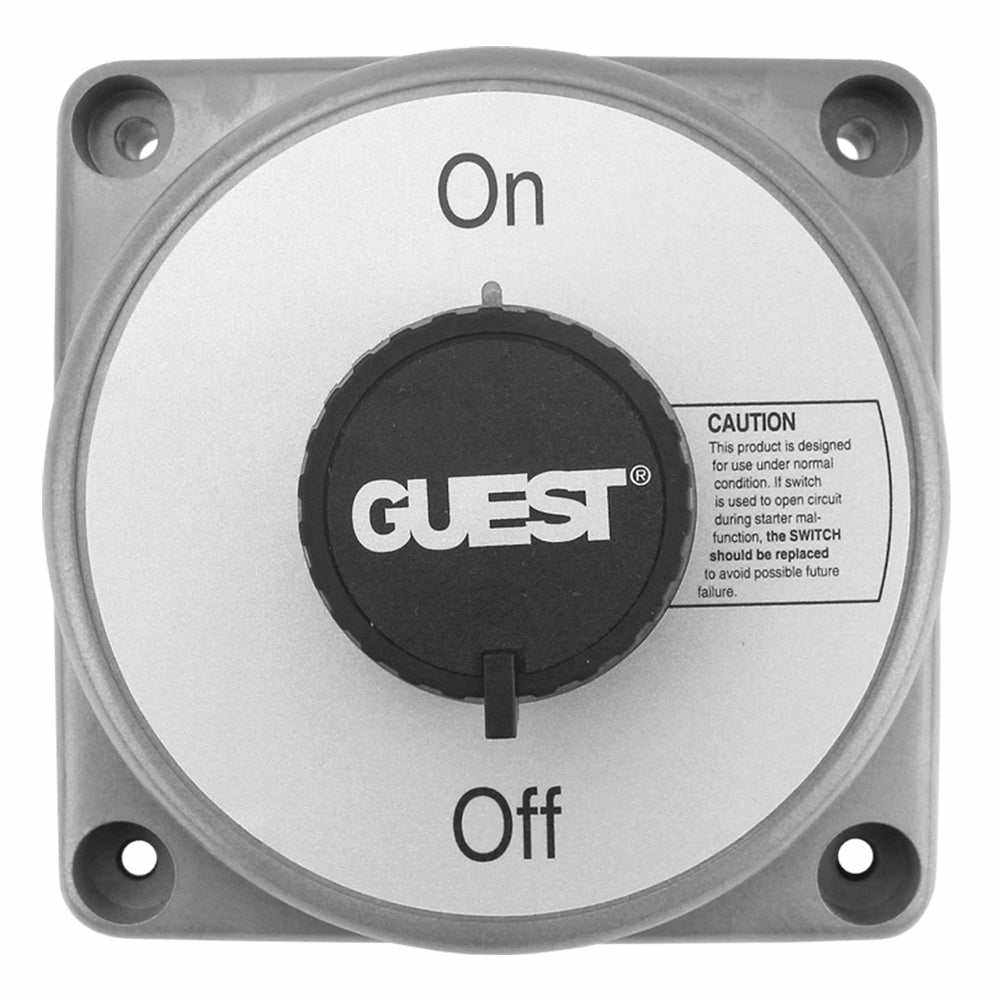

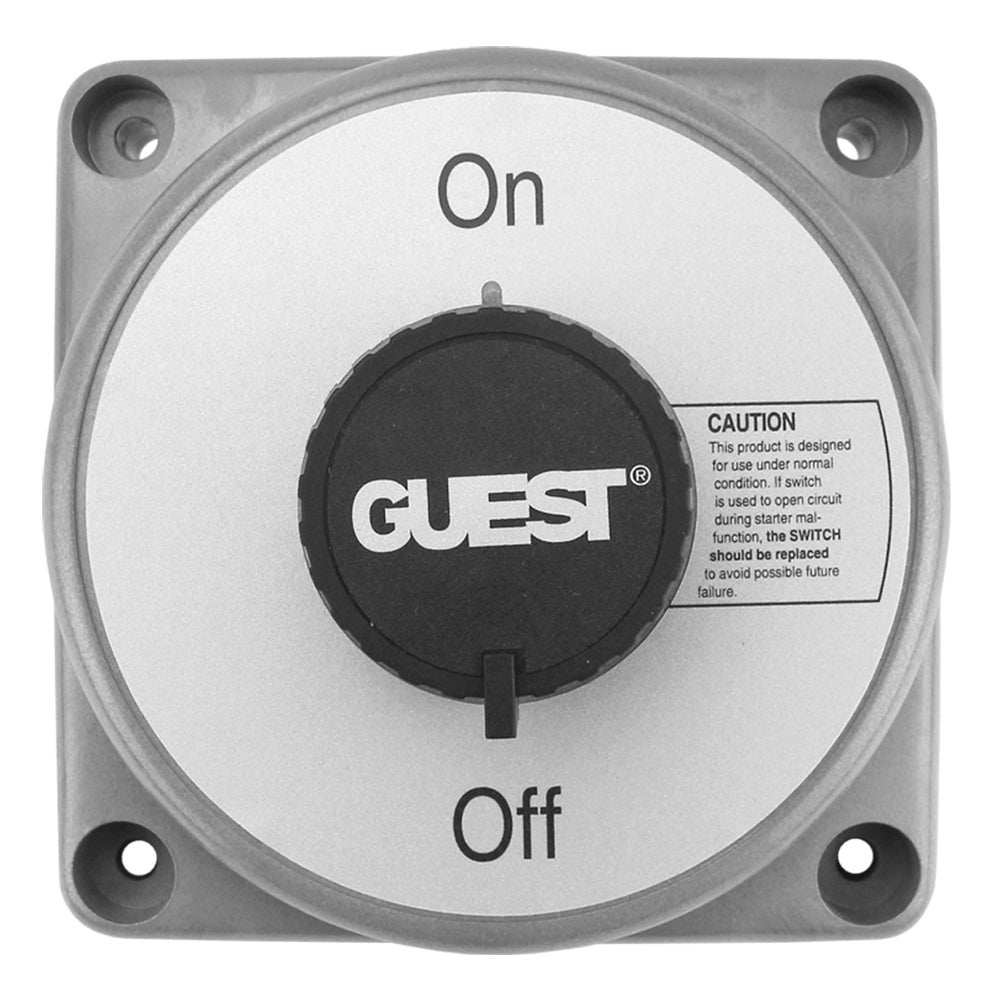

Guest 2303A Diesel Power Heavy-Duty Battery Switch

The Guest 2303A is a rugged, high-capacity battery selector switch designed specifically for high-amperage environments, such as those found in diesel engines and large marine electrical systems. This "Heavy-Duty" series switch allows for the management of two batteries (or two banks of batteries), providing the ability to select between Battery 1, Battery 2, or both in parallel for emergency starting.

Built for High-Current Demands

Diesel engines require significantly more "cranking amps" than gasoline engines due to their high compression ratios. The 2303A is engineered with larger internal contact surfaces and heavy-duty copper studs to handle these massive surges of electricity without overheating or causing voltage drops.

Key Features:

• Four-Position Control: Switch between OFF - 1 - 2 - BOTH, allowing you to isolate batteries for charging or combine them for maximum starting power.

• Diesel Power Rated: Specifically designed to handle the high cold-cranking amp (CCA) requirements of large diesel power plants.

• Make-Before-Break Design: This critical safety feature allows you to switch between battery banks while the engine is running without interrupting the electrical circuit or damaging the alternator's diodes.

• Ignition Protected: Safe for installation in the engine compartments of gasoline-powered boats (meets USCG standards), though its primary strength is in heavy-duty diesel or commercial applications.

• Corrosion-Resistant Contacts: Features heavy-duty copper studs and brass nuts to ensure a long life in the humid, salty marine environment.

• Durable Housing: Constructed from high-impact, UV-stabilized plastic with a large, ergonomic knob that is easy to operate even while wearing gloves.

Technical Specifications:

• Model Number: 2303A

• Continuous Rating: 360 Amps DC

• Intermittent Rating (5 min): 500 Amps DC

• Cranking Rating (30 sec): 1,500 Amps DC

• Voltage: Suitable for 6V, 12V, 24V, or 32V systems

• Terminal Stud Size: 3/8" - 16

• Dimensions: 5.5" x 5.5" x 3.5" (approx.)

Why Choose the Guest 2303A?

Standard battery switches are often rated for 230-250 Amps continuous. If you are running a twin-engine diesel setup or a large house bank with high-draw inverters, those standard switches can become a point of failure. The Guest 2303A provides the extra "overhead" needed to ensure your electrical system remains reliable under heavy loads.

Installation Note:

Because of the high amperage this switch handles, it is vital to use properly sized battery cables (typically 2/0 AWG or larger for diesel applications) and to ensure all terminal connections are torqued tightly and protected with a corrosion-inhibiting spray or boots.
