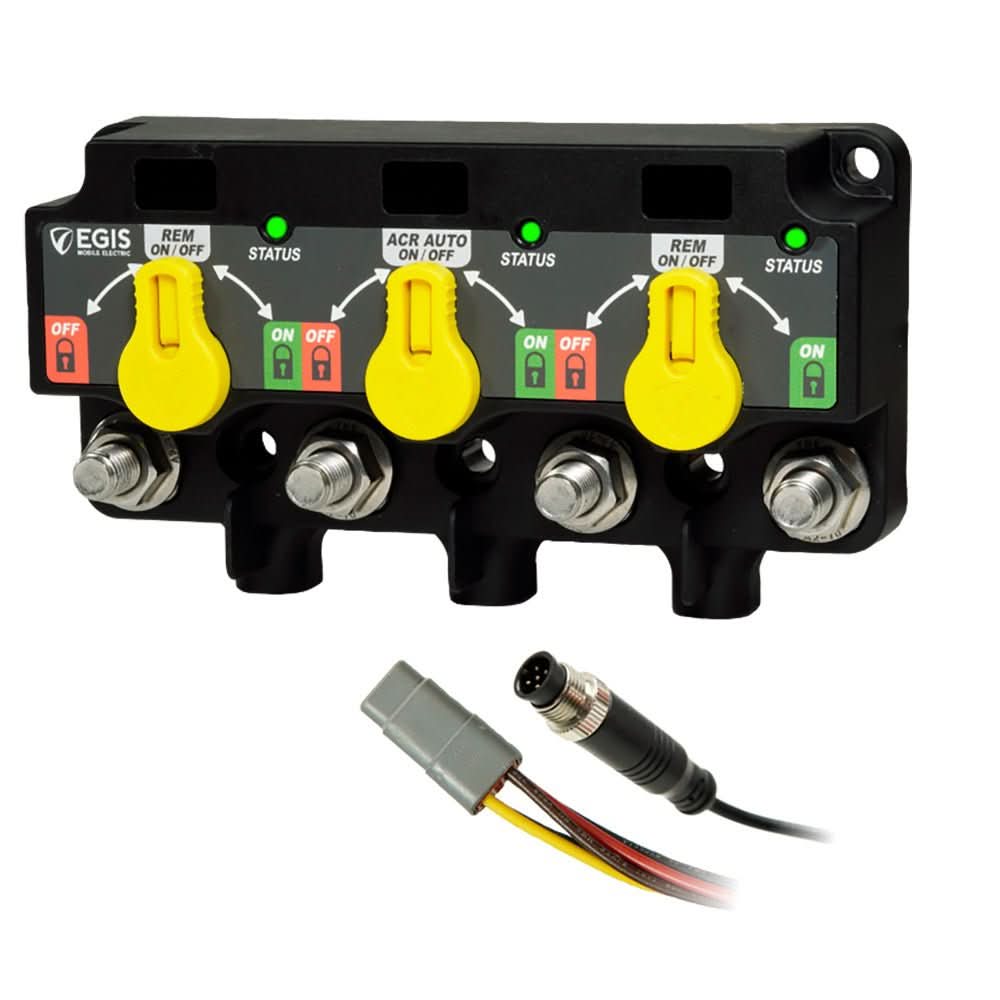

Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR with Knobs – 12 Position Digital Toggle - 9831-2535

Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR with Knobs – 12 Position Digital Toggle (9831-2535)

The Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR is a powerful digital switching and battery management solution designed for advanced marine electrical systems. Built for seamless integration with NMEA 2000® networks, this unit allows intelligent control and monitoring of multiple circuits through compatible multifunction displays while retaining hands-on operation via front-mounted rotary knobs.

Featuring a 12-position digital toggle configuration, the Triple XD Relay/ACR supports efficient power distribution and load control across complex vessel installations. The integrated Automatic Charging Relay (ACR) intelligently combines and isolates battery banks to optimize charging performance from alternators, shore power, or onboard chargers, improving system reliability and battery life.

Constructed with heavy-duty, marine-grade components, the Triple XD is designed to withstand harsh marine and mobile environments. Supporting both 12V and 24V DC systems with plug-and-play NMEA 2000 connectivity, this relay/ACR reduces wiring complexity while delivering dependable digital and manual control. Ideal for recreational boats, yachts, and commercial vessels, the Egis Triple XD provides professional-grade electrical management with modern network integration.

Features:

• Bullet-proof construction: sealed to IP67/IP6K9K with high-temperature electronics and stainless steel cable lug studs

• High current support: 500A continuous and 1600A cranking per switch for all marine electrical systems

• Intuitive manual control: simplifies operation with clear status indication and override awareness

• Simple dip switch programmability: allows flexible configuration for OEMs and installers

• Low off-state current: operates with 90-95% less off-state power consumption compared to competitors

• Seamless NMEA 2000 integration: control switches, monitor status, and battery voltage within marine networks

• Flexible control options: operate via NMEA 2000 or discrete analog inputs

• Compact and lightweight design: reduces mounting space by up to 75% with advanced bi-stable solenoid technology

• Battery sharing and isolation: eliminates dead start batteries by managing dual battery charging and disconnection
• Expandable system: supports 2 or 3 battery systems with link and cross-link busbars for enhanced system scalability
