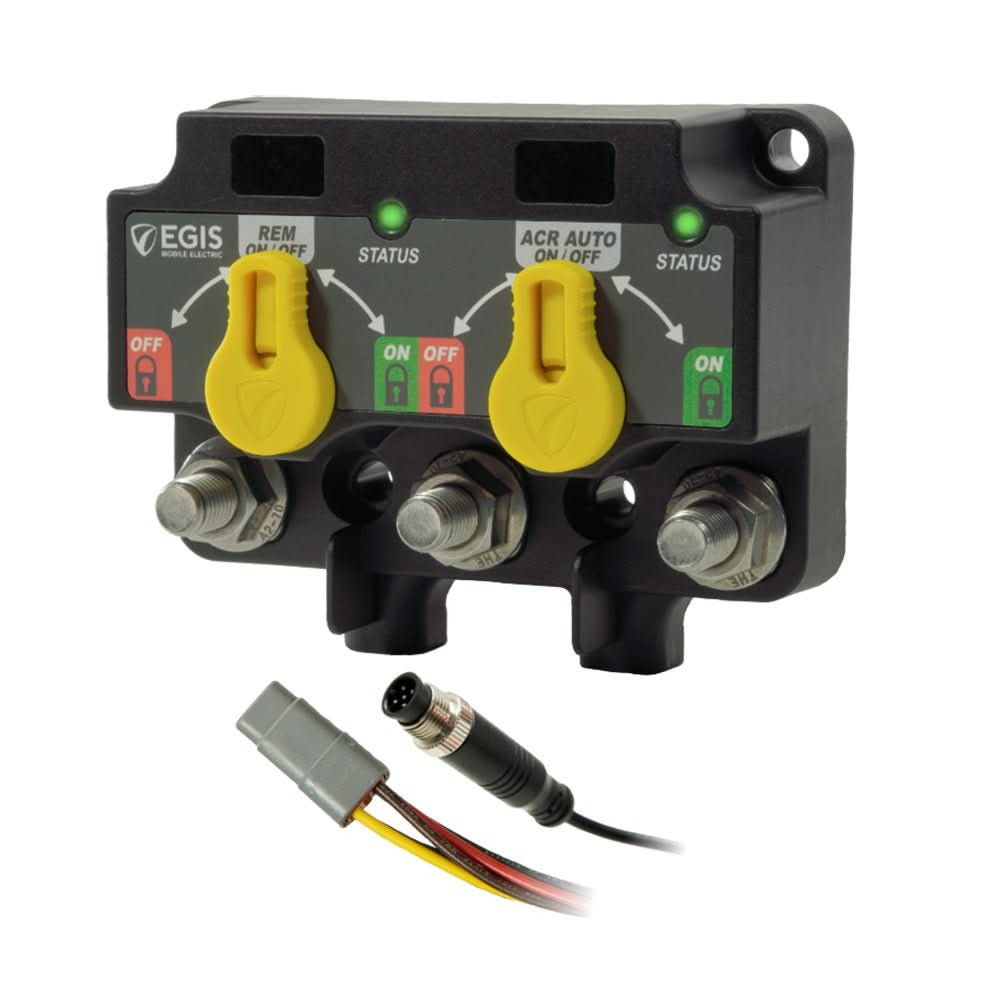

Egis Dual XD NMEA 2000 ACR/Relay with Knobs - 8 Position DT by Egis Mobile Electric - 9821-8350

Egis Dual XD NMEA 2000 ACR/Relay with Knobs - 8 Position DT by Egis Mobile Electric - 9821-8350

The Egis Dual XD NMEA 2000 ACR/Relay with Knobs (Part Number 9821-8350) offers a robust and versatile solution for marine electrical systems, supporting seamless integration with NMEA 2000 networks. Its bullet-proof construction includes IP67/IP6K9K sealing, high-temperature electronics, and stainless steel cable lug studs, enabling reliable performance in harsh marine environments and flexible mounting options. Designed to support continuous currents up to 500A and cranking currents up to 1600A per switch, this relay is suitable for all standard marine electrical configurations, ensuring dependable power management and safety.

The device features an intuitive manual control option, allowing operators to easily override automatic functions and monitor relay states, including locked on or off positions, which is a unique advantage over competing solutions. Its simple dip switch programmability provides significant flexibility for OEMs and installers, enabling tailored configurations to meet specific system requirements. Notably, the Egis Dual XD consumes 90-95% less off-state current compared to similar products, reducing energy waste and enhancing system efficiency.

This relay is ideal for applications requiring control switches, status monitoring, and battery voltage management within a marine environment. It offers flexible control options via NMEA 2000 or discrete analog inputs, adding versatility across various system setups. Its advanced bi-stable solenoid design and multiple solenoid assemblies reduce mounting space by 35-75% and lower overall product weight, streamlining installation. Furthermore, the relay shares charging between two batteries, eliminating dead start batteries and isolating batteries when no charge sources are available. Expandability is supported through link and cross-link busbars, allowing integration with additional dual, triple, or single XD relays, supporting multi-battery system configurations with standard busbar accessories.

Features:

• Bullet-proof construction: Sealed to IP67/IP6K9K with high-temperature electronics and stainless steel cable lug studs, allowing mounting in harsh marine environments.

• High current capacity: Supports 500A continuous and 1600A cranking per switch, suitable for all marine electrical systems.

• Manual control: Intuitive override to monitor relay states and lock positions, enhancing operational awareness.

• Simple programmability: Dip switch settings enable flexible relay functions tailored to system needs.

• Energy-efficient: Consumes 90-95% less off-state current compared to similar products, reducing system energy waste.

• Seamless NMEA 2000 integration: Control switches, monitor relay status, and battery voltage within marine networks.

• Flexible control options: Operate via NMEA 2000 or discrete analog inputs for versatile system integration.

• Space-saving design: Advanced bi-stable solenoid layout reduces mounting space and overall weight.
• Battery management: Shares charging between two batteries and isolates them when no charge sources are present to prevent dead start batteries.

• Expandable system: Supports additional relays through link and cross-link busbars, accommodating multi-battery setups.
