Dometic SeaLand T Series Waste Discharge Pump - 24V - 317302400
Manufacturer Part #: 317302400
Couldn't load pickup availability

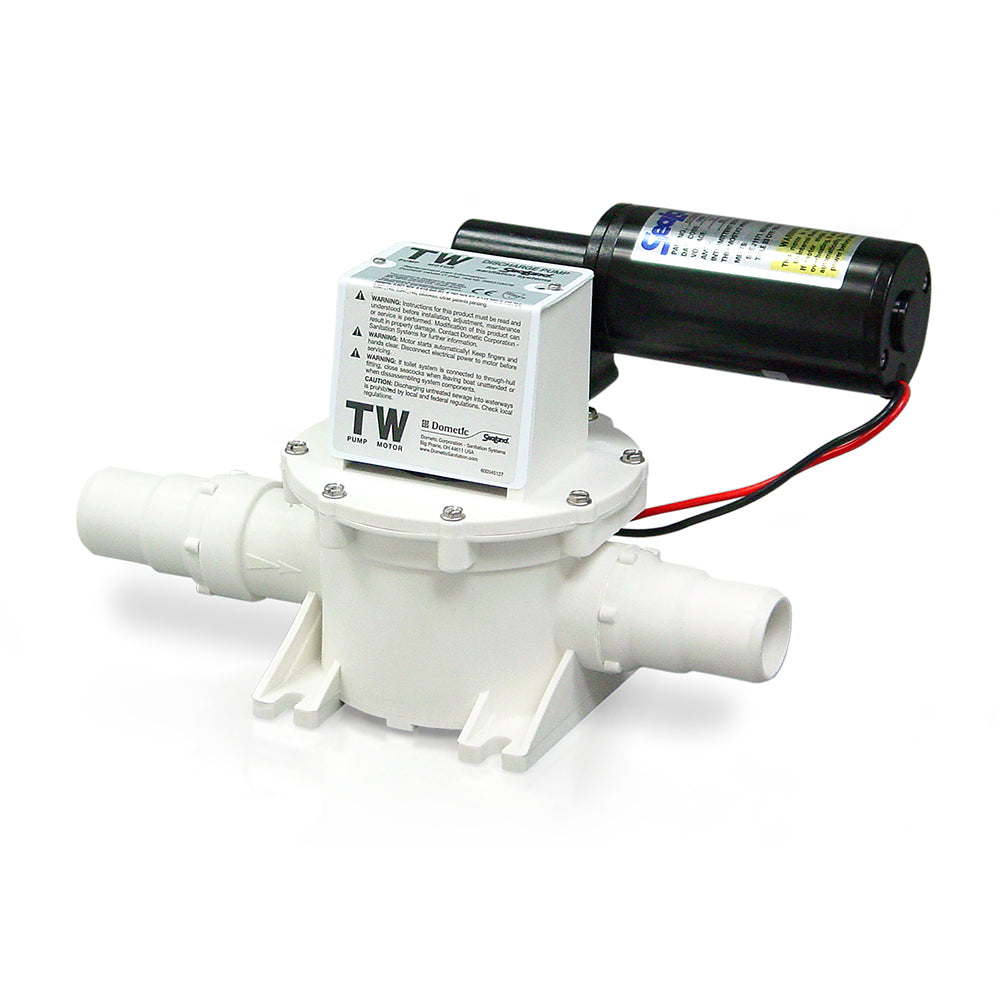

Dometic SeaLand T Series Waste Discharge Pump – 24V – 317302400
The Dometic SeaLand T Series Waste Discharge Pump (24V, 317302400) is a high-performance marine pump engineered for reliable and efficient waste management on boats and RVs. Designed for 24V DC systems, this pump is compatible with Dometic SeaLand T Series sanitation systems, ensuring dependable discharge of waste while maintaining hygienic operation.
Built with durable, corrosion-resistant materials, the T Series pump delivers quiet, efficient performance even in demanding marine environments. Its robust design ensures long-lasting service life, minimizing maintenance and downtime. Ideal for both recreational and commercial applications, this pump supports safe and environmentally compliant waste handling on the water.
Key Features
-
Run-Dry Protection: The bellows-style design ensures the pump will not be harmed if it continues to run after the tank is empty.
-
Self-Priming: Capable of self-priming up to 10 feet (3.3 meters) of water, allowing for flexible mounting locations above the tank.
-
High Efficiency: Operates on 24V DC and draws only 3 amps, making it an energy-efficient choice for marine electrical systems.
-
High Flow Rate: Delivers a peak flow of 300 gallons per hour (5 gallons per minute) to empty holding tanks or fish boxes quickly.
-
Quiet Operation: Recently redesigned to reduce audible noise through optimized pump stroke balance and a revised gear drive.
Technical Specifications
-
Voltage: 24V DC
-
Amperage Draw: 3 Amps
-
Ports: 1-1/2" (38 mm) barb fittings for sanitation hose or PVC pipe.
-
Solids Handling: Can pass solids up to 1/2" (13 mm) without clogging.
-
Dimensions: Approximately 6-3/4" W x 7-3/4" H x 13-3/4" L.
-
Weight: 7 lbs (3.2 kg).
What’s in the Box
-
T Series Pump Assembly: The complete 24V motor, gear drive, and bellows unit.
-
Pre-installed Duckbill Valves: Critical for maintaining suction and preventing backflow.
-
Installation Instructions: Guidelines for proper electrical and plumbing setup.
-
Warranty Information: Typically includes a 1-year limited manufacturer warranty.
Important Note: This pump is specifically for tank discharge (holding tanks, grey water, or fish boxes). It is not a substitute for a VacuFlush vacuum pump, and using it as one will cause damage to the system.
The Dometic SeaLand T Series Waste Discharge Pump is an essential component for any T Series sanitation system, providing dependable, maintenance-friendly operation and peace of mind for safe, hygienic onboard waste management.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm, and Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
